Ignition Switch: Testing and Inspection
2TR-FE STARTING: IGNITION SWITCH: INSPECTION 1.
INSPECT
IGNITION SWITCH (a)
Check the resistance.
(1)

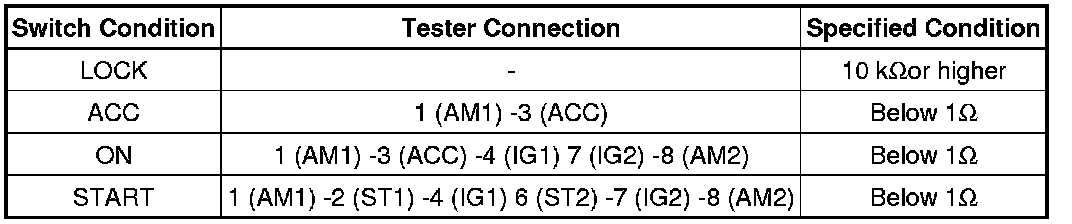

Using an ohmmeter, measure the resistance between the terminals.
Standard: If the result is not as specified, replace the
ignition switch.
