Disc Brake System: Testing and Inspection
BRAKE: FRONT BRAKE (for 4WD and Pre-Runner): INSPECTION 1.
INSPECT BRAKE CYLINDER AND PISTON
(a)
Check the cylinder bore and piston for rust and scoring.
2.
INSPECT PAD LINING THICKNESS
(a)

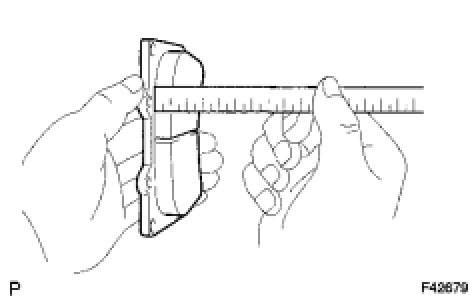

Using a ruler, measure the pad lining thickness.
Standard thickness: 11.5 mm (0.453 in.) Minimum thickness: 1.0 mm (0.0394 in.)
