Inspection
2TR-FE ENGINE CONTROL SYSTEM: CAMSHAFT OIL CONTROL VALVE: INSPECTION
1. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

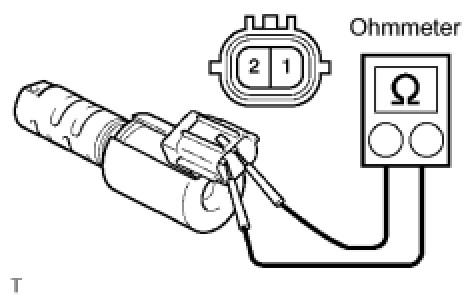

(a) Check the resistance.
(1) Using an ohmmeter, measure the resistance between the terminals.
Standard:
If the result is not as specified, replace the camshaft timing oil control valve.

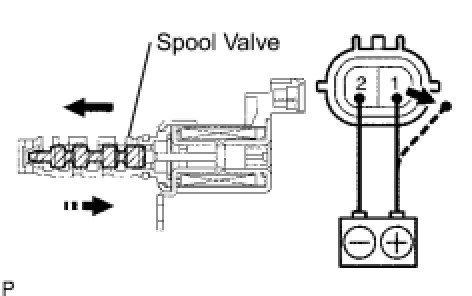

(b) Check the operation.
(1) Apply battery voltage across the terminals, and check that the spool valve operates.
NOTICE:
Check that the spool valve is not stuck.
HINT
The spool valve may not return if foreign objects are caught in it. This may cause subtle pressure leakage to the advance side, and a DTC may be set.
