Installation (from 08/2011)
AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION
1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

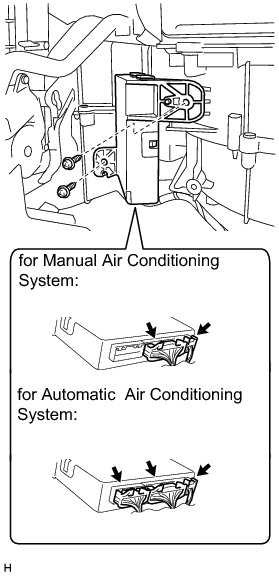

(a) Install the amplifier with the 2 screws.
(b) for Manual Air Conditioning System:
Connect the 2 connectors.
(c) for Automatic Air Conditioning System:
Connect the 3 connectors.

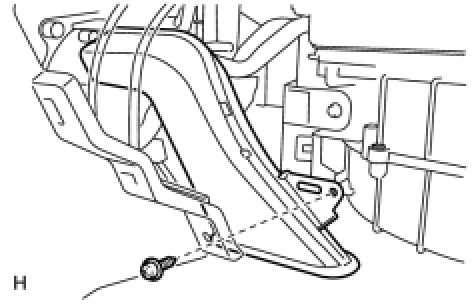

2. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY
(a) Install the duct with the screw.
3. INSTALL LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY
for Column Shift Type:
Install the lower No. 2 instrument panel airbag assembly Installation (from 08/2011).
for Floor Shift Type:
Install the lower No. 2 instrument panel airbag assembly Installation (from 08/2011).
4. INSTALL LOWER INSTRUMENT PANEL
for Column Shift Type:
Install the lower instrument panel Installation (from 08/2011).
for Floor Shift Type:
Install the lower instrument panel Installation (from 08/2011).
5. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY RH
(a) for Column Shift Type:
Install the instrument panel finish panel Installation (from 08/2011).
(b) for Floor Shift Type:
Install the instrument panel finish panel Installation (from 08/2011).
6. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
(a) for Column Shift Type:
Install the No. 2 instrument panel under cover sub-assembly Installation (from 08/2011).
(b) for Floor Shift Type:
Install the No. 2 instrument panel under cover sub-assembly Installation (from 08/2011).
7. INSTALL INSTRUMENT SIDE PANEL RH
(a) for Column Shift Type:
Install the instrument side panel Installation (from 08/2011).
(b) for Floor Shift Type:
Install the instrument side panel Installation (from 08/2011).
8. INSTALL COWL SIDE TRIM BOARD RH
(a) for Regular Cab:
Install the cowl side trim board Installation (from 08/2011).
(b) for Double Cab:
Install the cowl side trim board Installation (from 08/2011).
(c) for CrewMax:
Install the cowl side trim board Installation (from 08/2011).
9. INSTALL FRONT DOOR SCUFF PLATE RH
(a) for Regular Cab:
Install the front door scuff plate Installation (from 08/2011).
(b) for Double Cab:
Install the front door scuff plate Installation (from 08/2011).
(c) for CrewMax:
Install the front door scuff plate Installation (from 08/2011).
10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Check Mode Procedure.
