Mechanical Specifications
SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

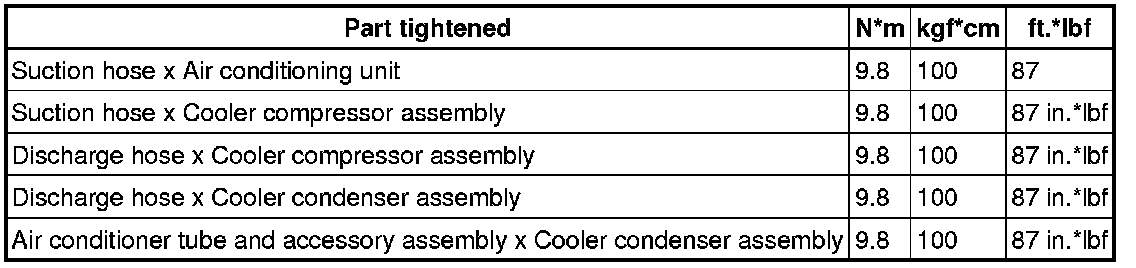

REFRIGERANT LINE
AIR CONDITIONING UNIT

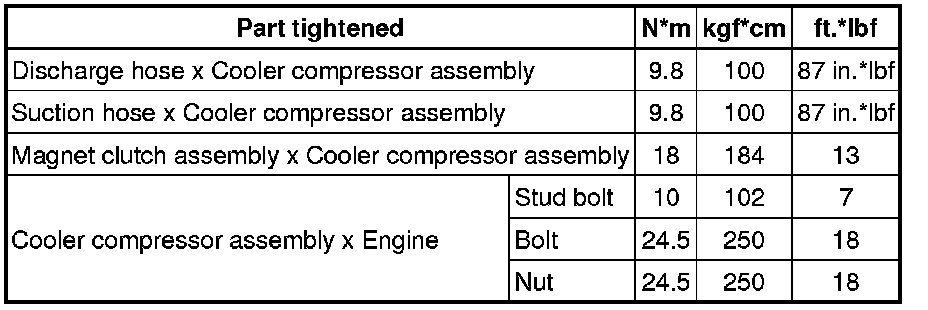

COMPRESSOR AND MAGNETIC CLUTCH (for 1GR-FE)
COMPRESSOR AND MAGNETIC CLUTCH (for 1UR-FE)
COMPRESSOR AND MAGNETIC CLUTCH (for 3UR-FE, 3UR-FBE)
CONDENSER
EVAPORATOR TEMPERATURE SENSOR
PRESSURE SWITCH
