Emission Control Systems





SERVICE SPECIFICATIONS: 1GR-FE EMISSION CONTROL: SERVICE DATA

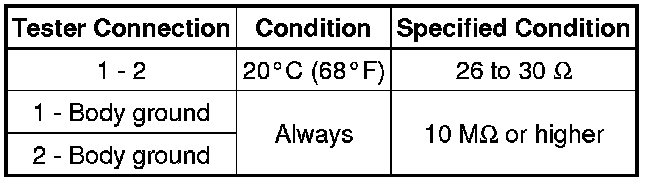

Emission control valve set:

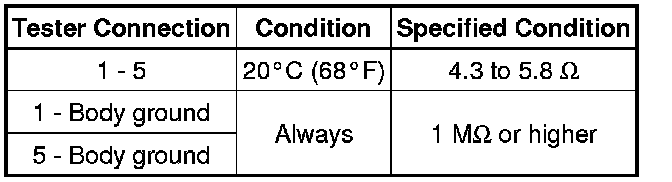

No. 2 emission control valve set:






Purge VSV:
