Service Data
SERVICE SPECIFICATIONS: A750E AUTOMATIC TRANSMISSION: SERVICE DATA

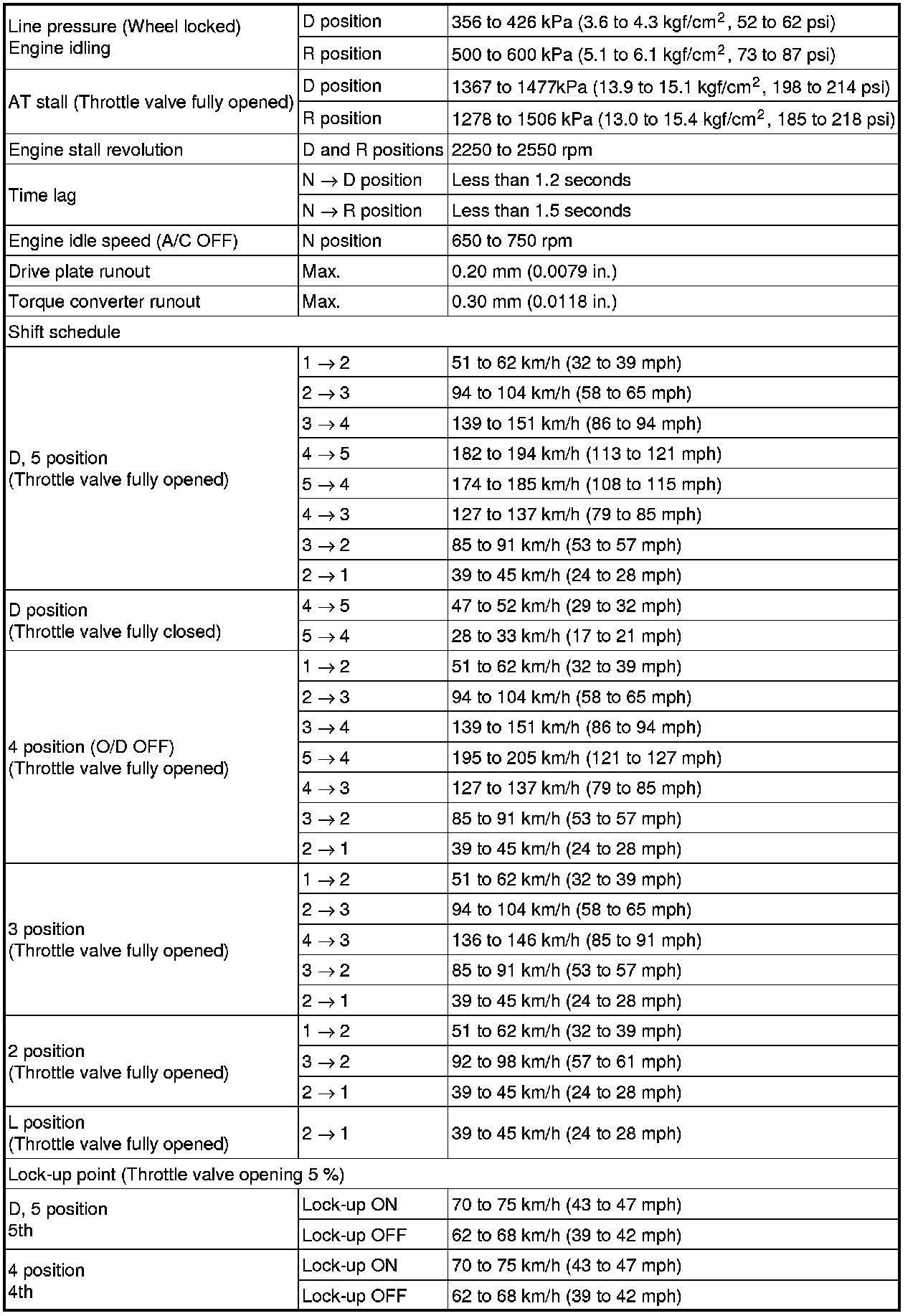

LINE PRESSURE AND SHIFT SCHEDULE

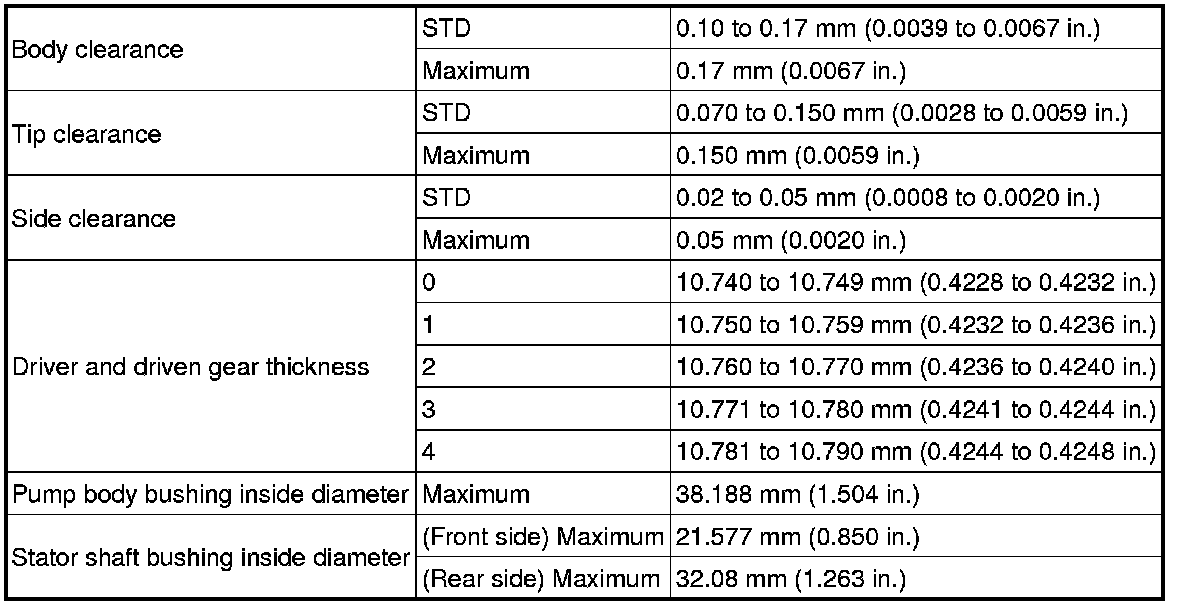

OIL PUMP
2nd BRAKE
B3 BRAKE

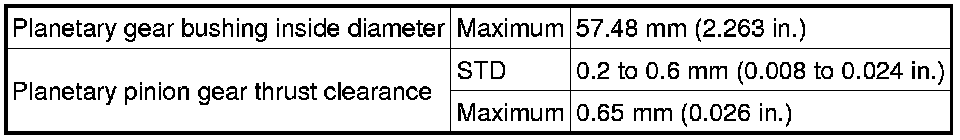

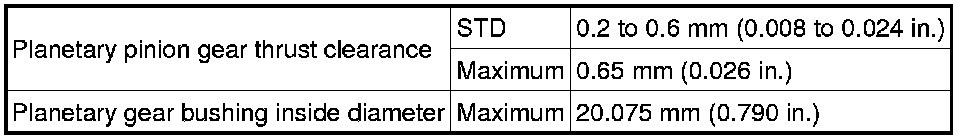

FRONT PLANETARY GEAR
BRAKE PISTON No. 1
CENTER PLANETARY GEAR
B2 BRAKE
REAR PLANETARY RING GEAR FLANGE

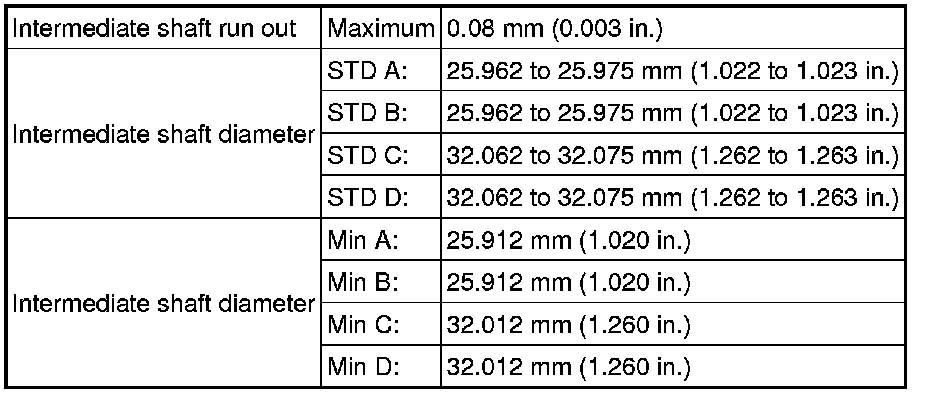

INTERMEDIATE SHAFT
REAR PLANETARY GEAR
1ST AND REVERSE BRAKE
DIRECT CLUTCH

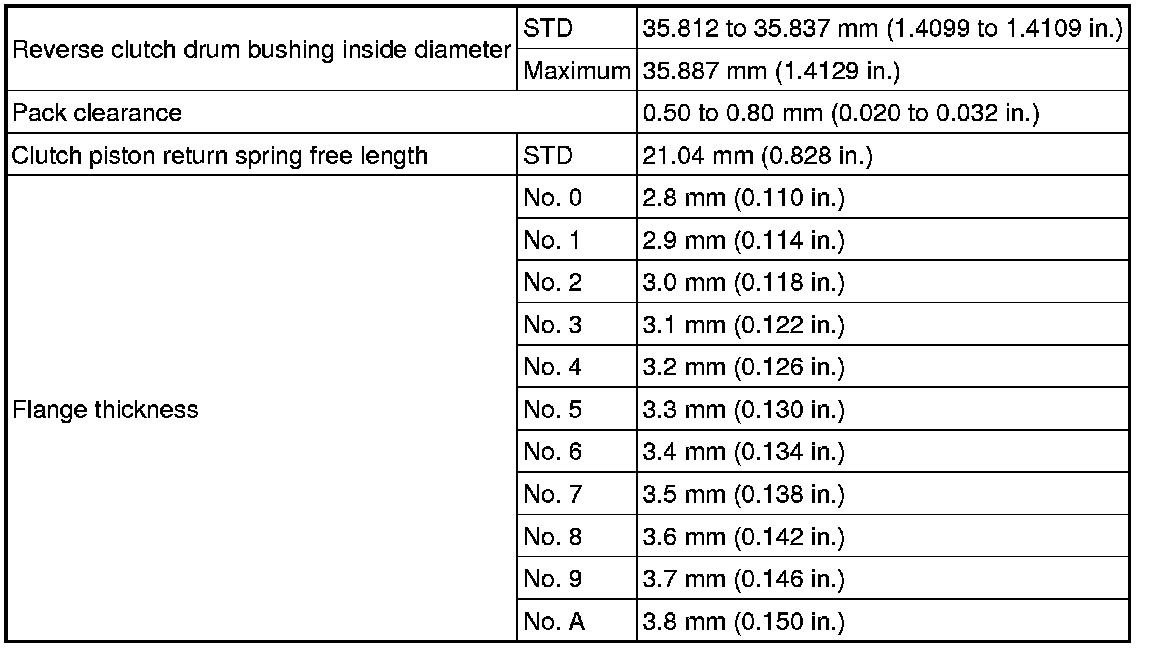

REVERSE CLUTCH
FORWARD CLUTCH
OUTPUT SHAFT BEARING

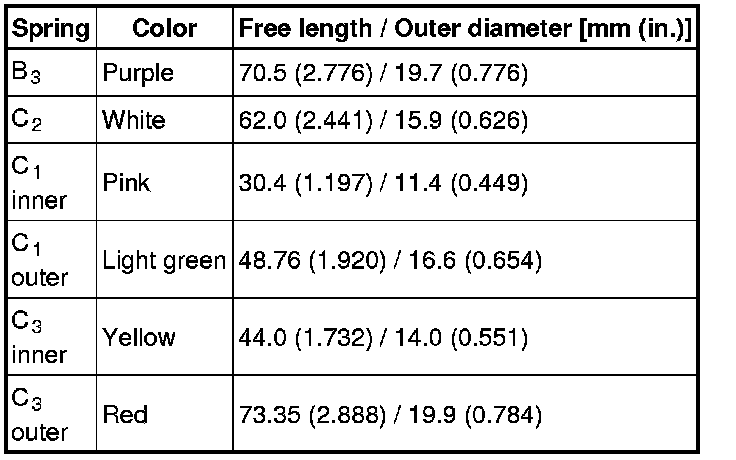

ACCUMULATOR
