Torque Specifications





SERVICE SPECIFICATIONS: BRAKE: TORQUE SPECIFICATIONS

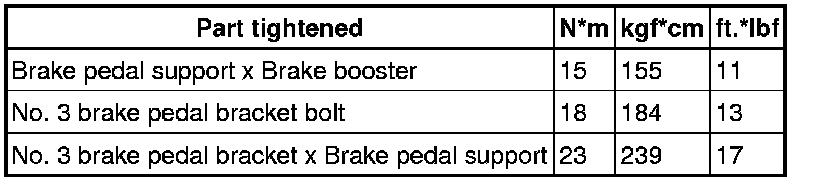

Brake Pedal

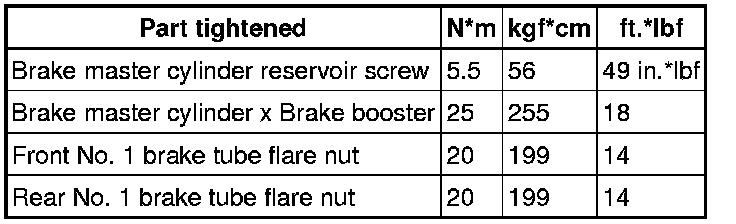

Brake Master Cylinder

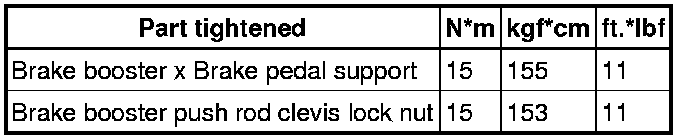

Brake Booster

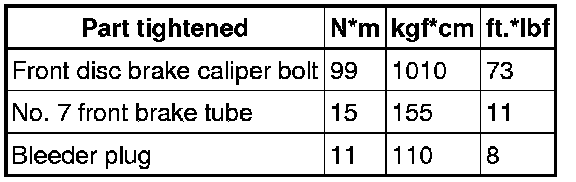

Front Brake






Front Brake Flexible Hose

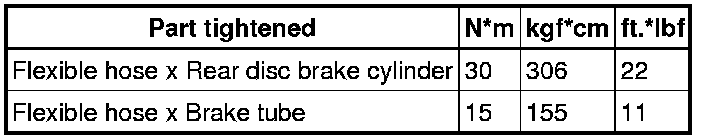

Rear Brake






Rear Brake Flexible Hose
