Service Data





SERVICE SPECIFICATIONS: 1GR-FE ENGINE MECHANICAL: SERVICE DATA

Engine

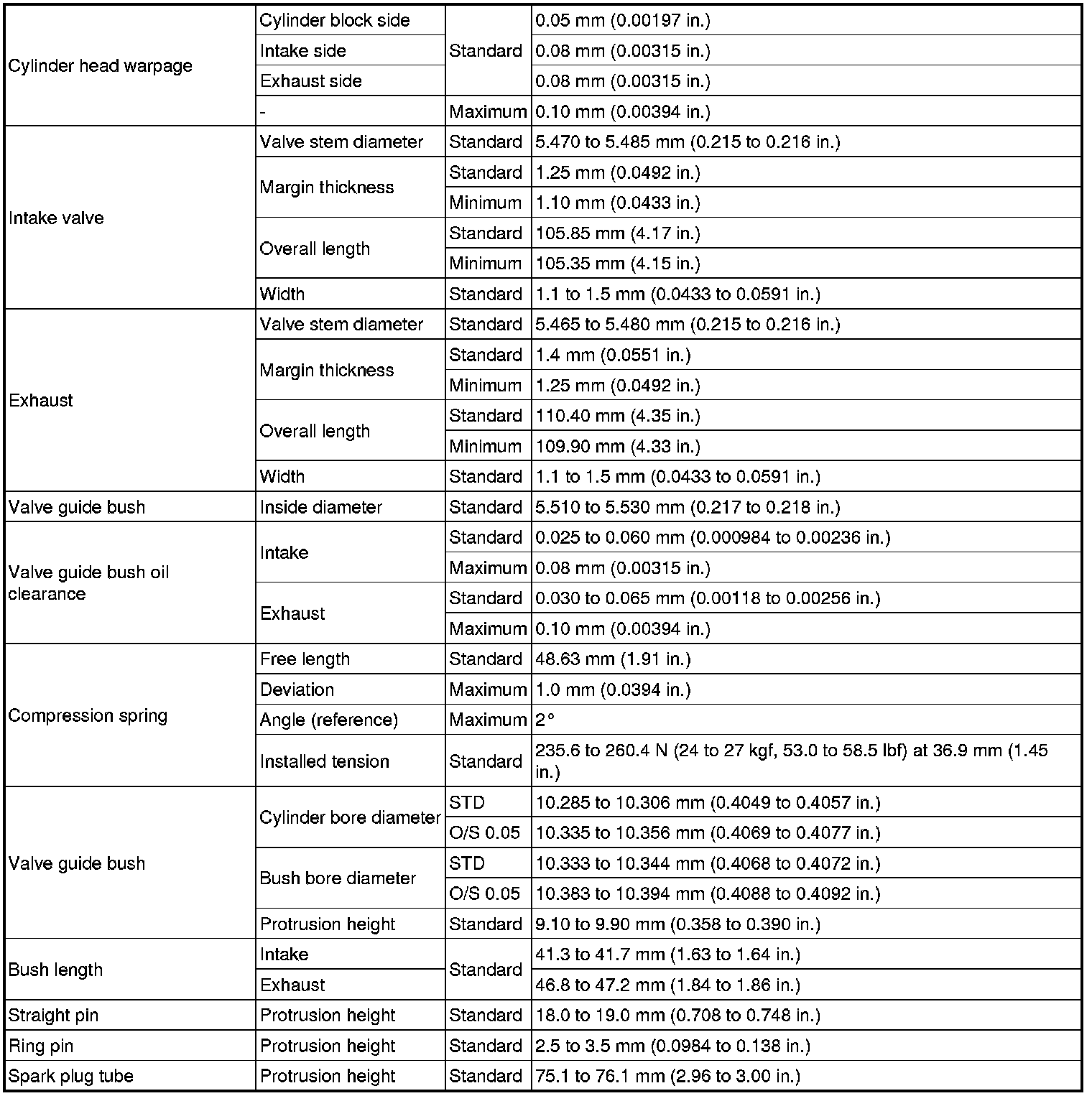

Cylinder Head

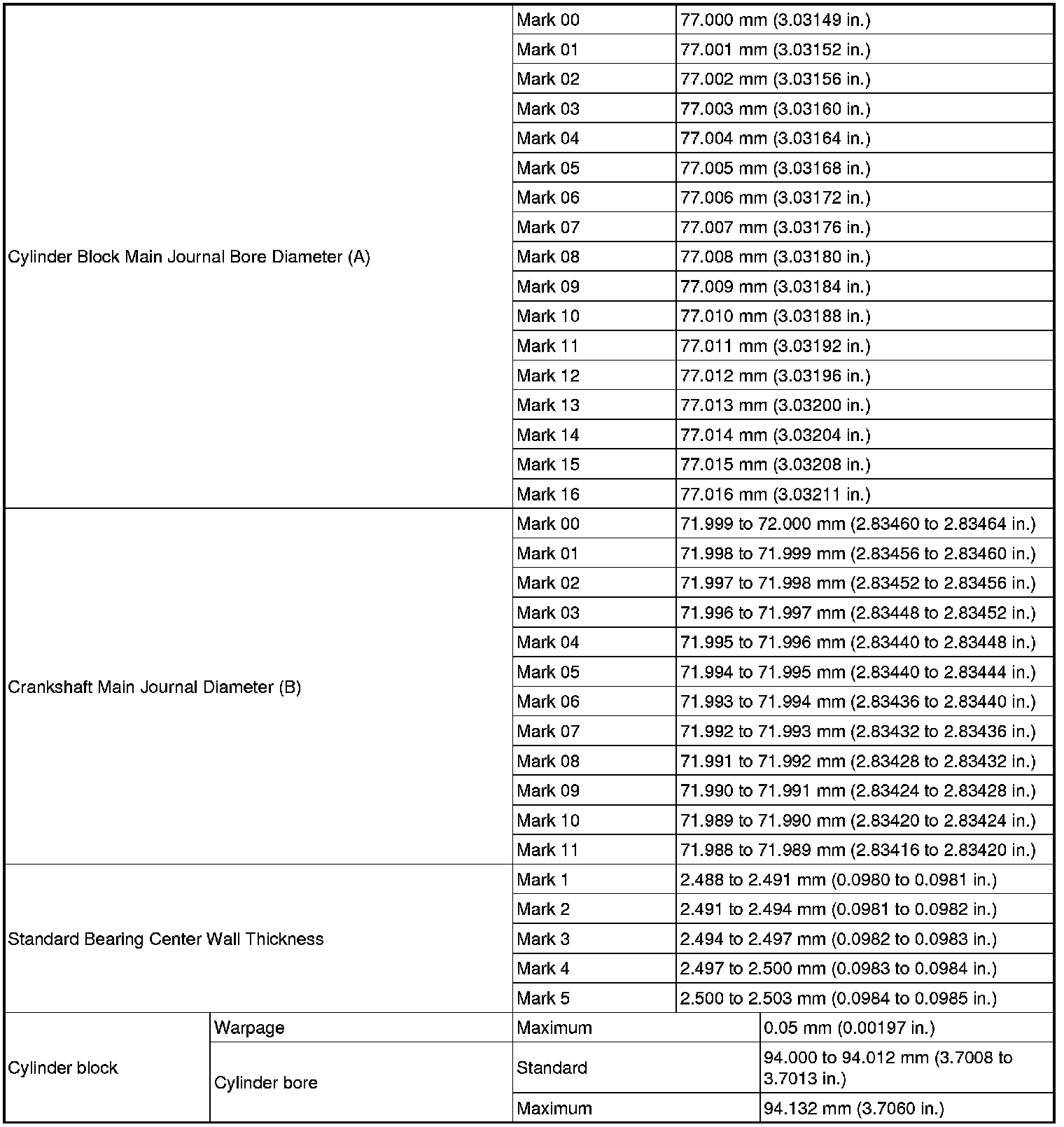

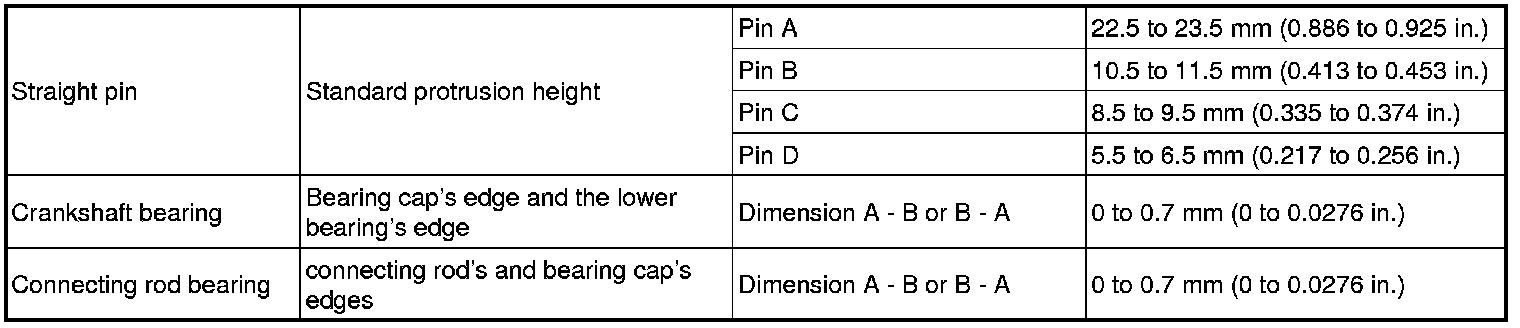

Cylinder Block

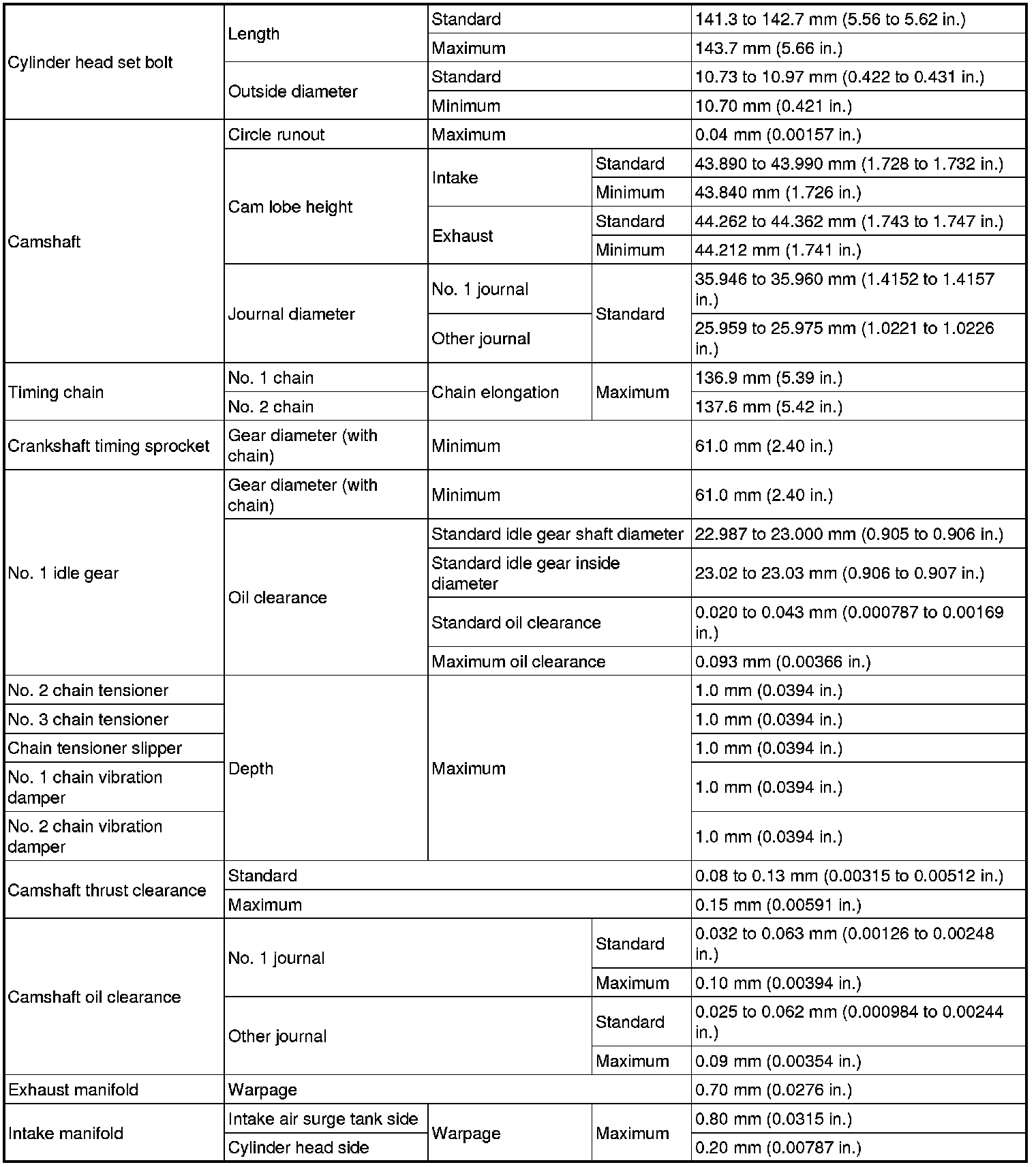

Engine Unit
