Timing Cover

TIMING CHAIN COVER SUB-ASSEMBLY

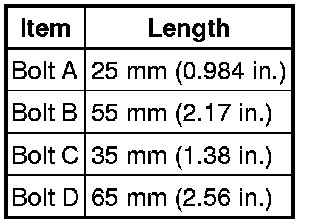

Install the timing chain cover with the 26 bolts, labeled A, B, C and D, and the 2 nuts. Tighten the bolts and nuts uniformly in several steps.

Standard Bolt:










Text in Illustration






Tighten the bolts in area 1.

Torque 47 Nm (479 kgf-cm, 35 ft-lbf)

Tighten the bolts in area 2.

Torque 23 Nm (235 kgf-cm, 17 ft-lbf)

Tighten the bolts in area 3.

Torque 23 Nm (235 kgf-cm, 17 ft-lbf)

Tighten the bolts in area 4.

Torque 23 Nm (235 kgf-cm, 17 ft-lbf)
