Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2012
>>
Tundra 2WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Power Distribution Module
>>
Service and Repair
>>
Components (from 08/2011)
Components (from 08/2011)

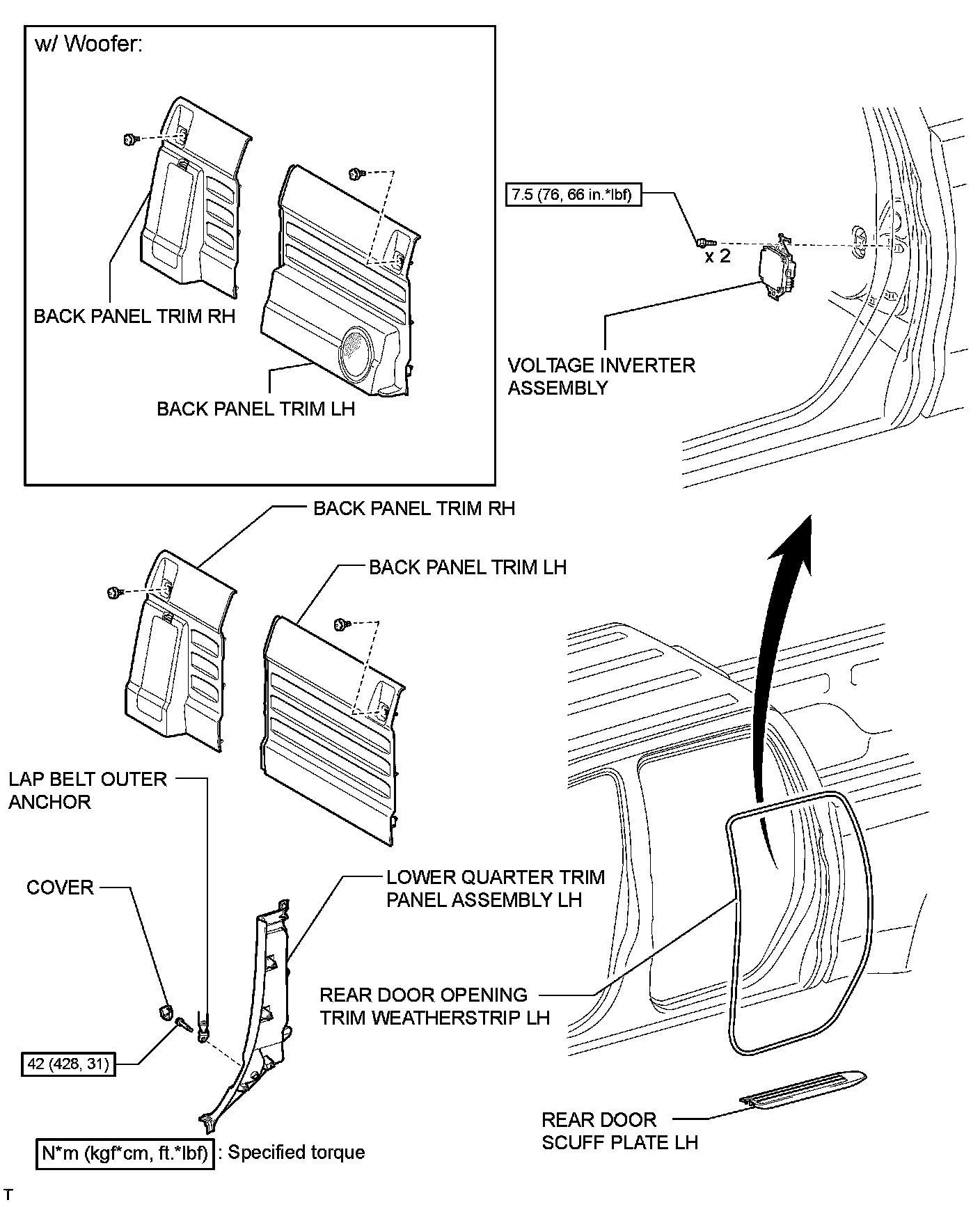

OTHER SYSTEM: VOLTAGE INVERTER (for CrewMax): COMPONENTS
