Installation





STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU (for Power Tilt and Power Telescopic Steering Column): INSTALLATION

1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU





(a) Install the ECU with the 2 screws.

Torque : 1.5 Nm (15 kgf-cm, 13 in-lbf)

(b) Connect the 2 ECU connectors.

2. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY Removal

3. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIR BAG ASSEMBLY Installation

4. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH Removal (from 08/2011)

5. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY Installation (from 08/2011)

6. INSTALL LOWER STEERING COLUMN COVER





(a) Attach the 2 claws to install the steering column lower cover.

7. INSTALL UPPER STEERING COLUMN COVER





(a) Attach the claw to install the upper steering column cover.

(b) Attach the 4 clips to install the upper steering cover onto the instrument panel cluster finish panel.





(c) Install the 2 screws.

Torque : 2.0 Nm (20 kgf-cm, 18 in-lbf)

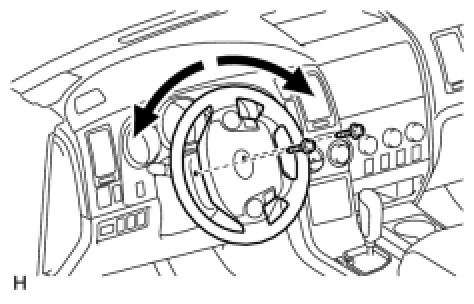

HINT
Turn the steering wheel to the right and left as necessary to install the 2 screws.

8. INSPECT SRS WARNING LIGHT

(a) Inspect the SRS warning light Diagnosis System.

9. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
