Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

1. CUSTOMIZING FUNCTION WITH THE TECHSTREAM

(a) POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

Tilt & Telescopic

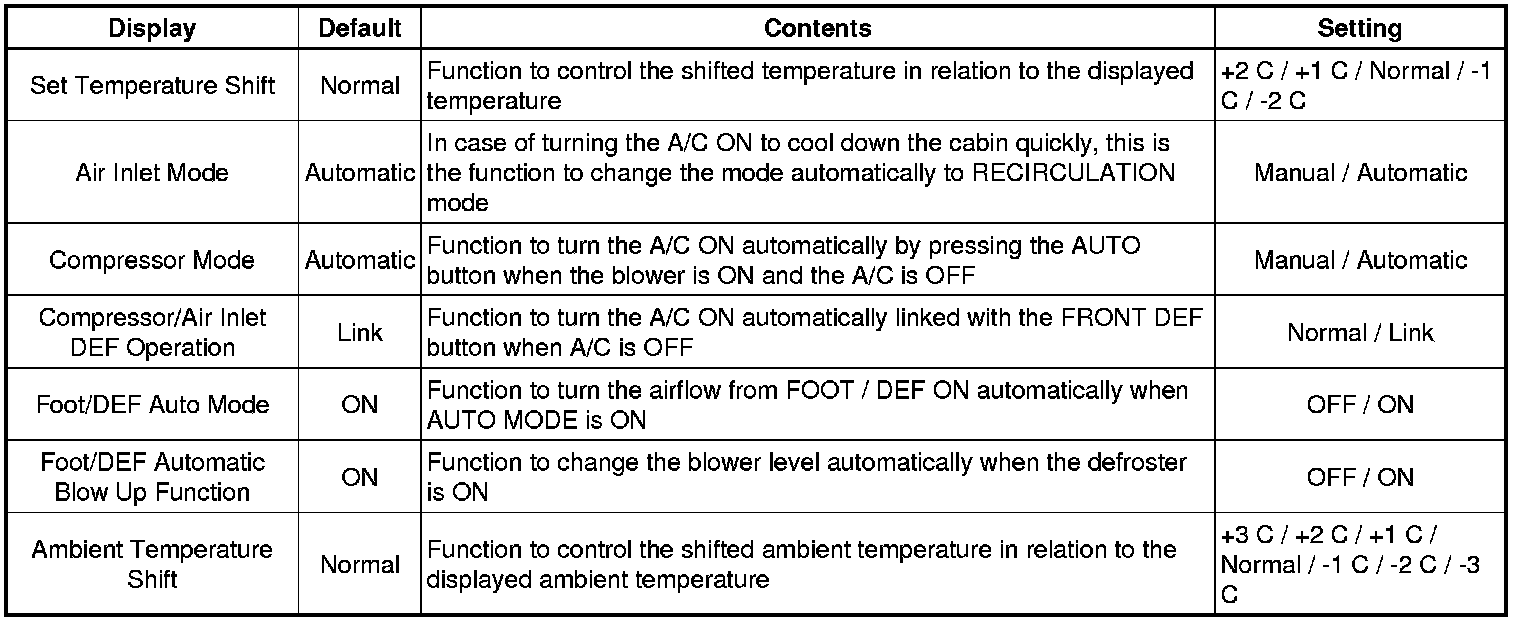

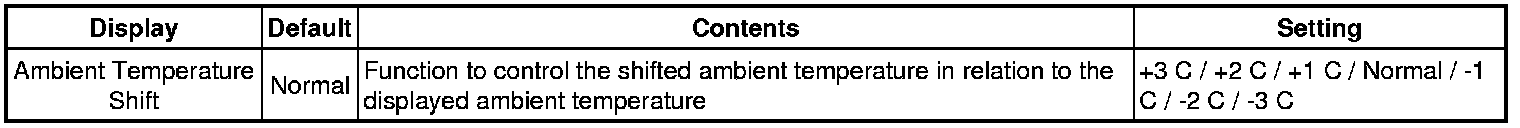

(b) AIR CONDITIONING SYSTEM (for Automatic Air Conditioning System)

Air Conditioner

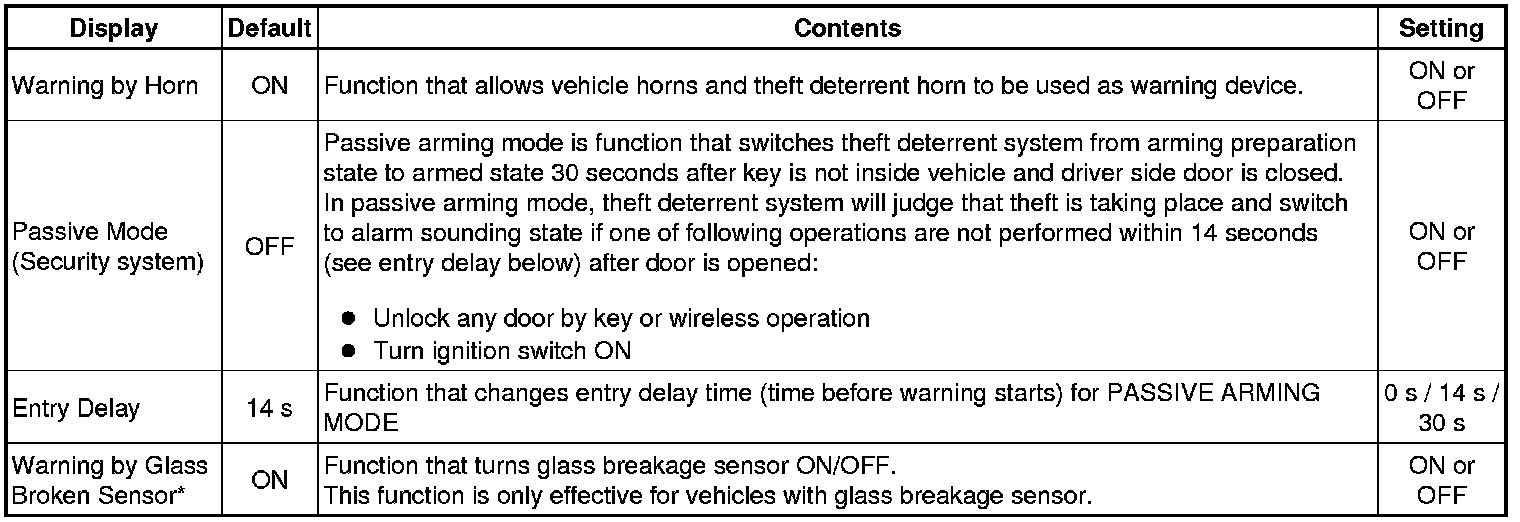

(d) THEFT DETERRENT SYSTEM

Main Body

HINT
*: w/ Glass Breakage Sensor

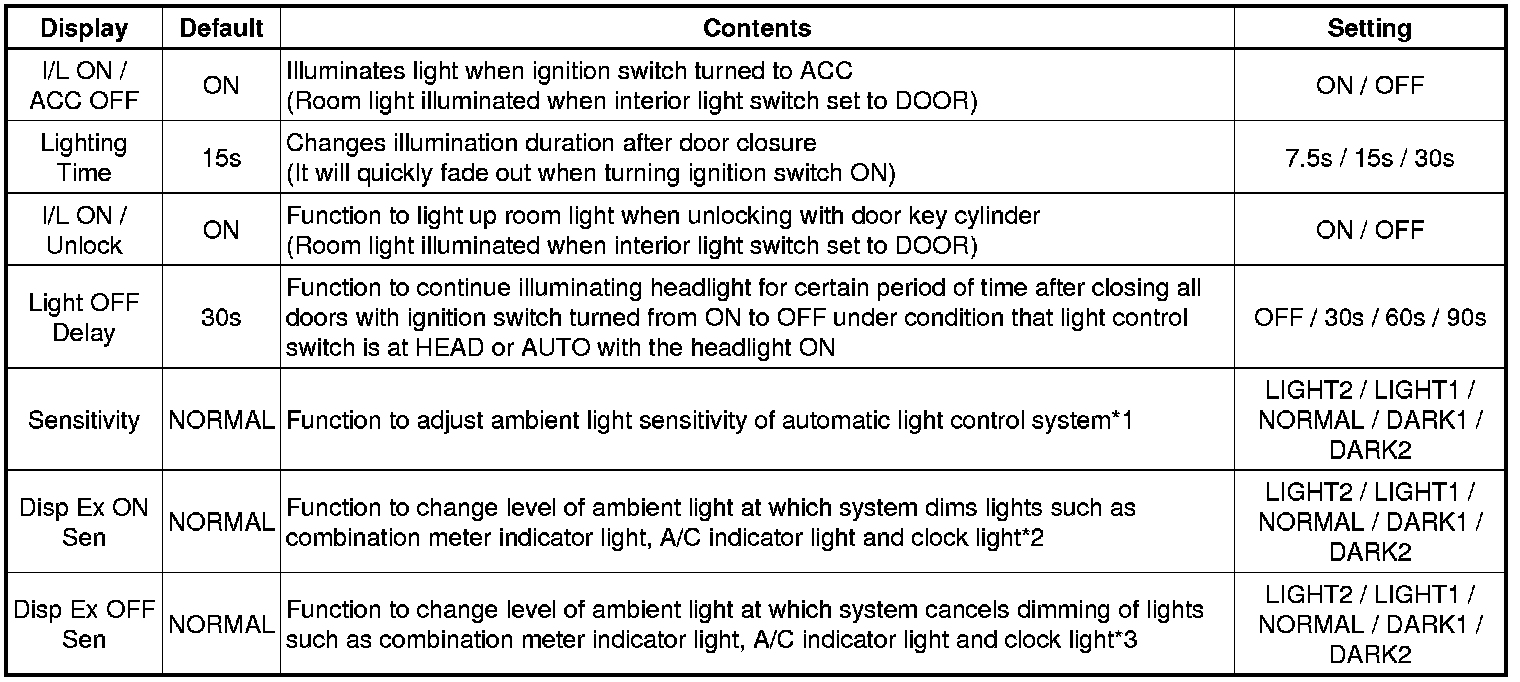

(e) LIGHTING SYSTEM

Main Body

HINT
The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

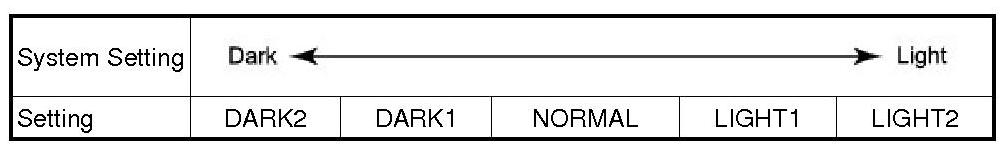

*1

HINT
When the setting is closer to the "Light" side, the system turns the lights on even when the surrounding area is relatively bright. When the setting is closer to the "Dark" side, the system waits until the surrounding area is darker before turning on the lights.

*2

HINT
When the setting is closer to the "Light" side, the system dims the indicator lights even when the surrounding area is relatively bright. When the setting is closer to the "Dark" side, the system waits until the surrounding area is darker before dimming the indicator lights.

*3

HINT
When the setting is closer to the "Dark" side, the system cancels the dimming of the indicator lights even when the surrounding area is relatively dark. When the setting is closer to the "Light" side, the system waits until the surrounding area is brighter before canceling the dimming of the indicator lights.

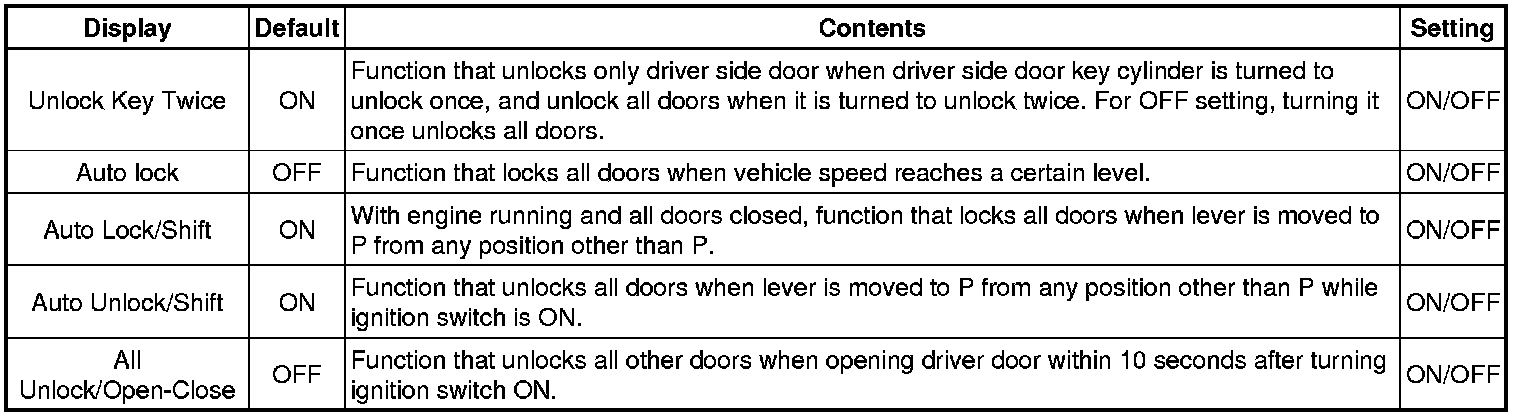

(f) POWER DOOR LOCK CONTROL SYSTEM

Main Body

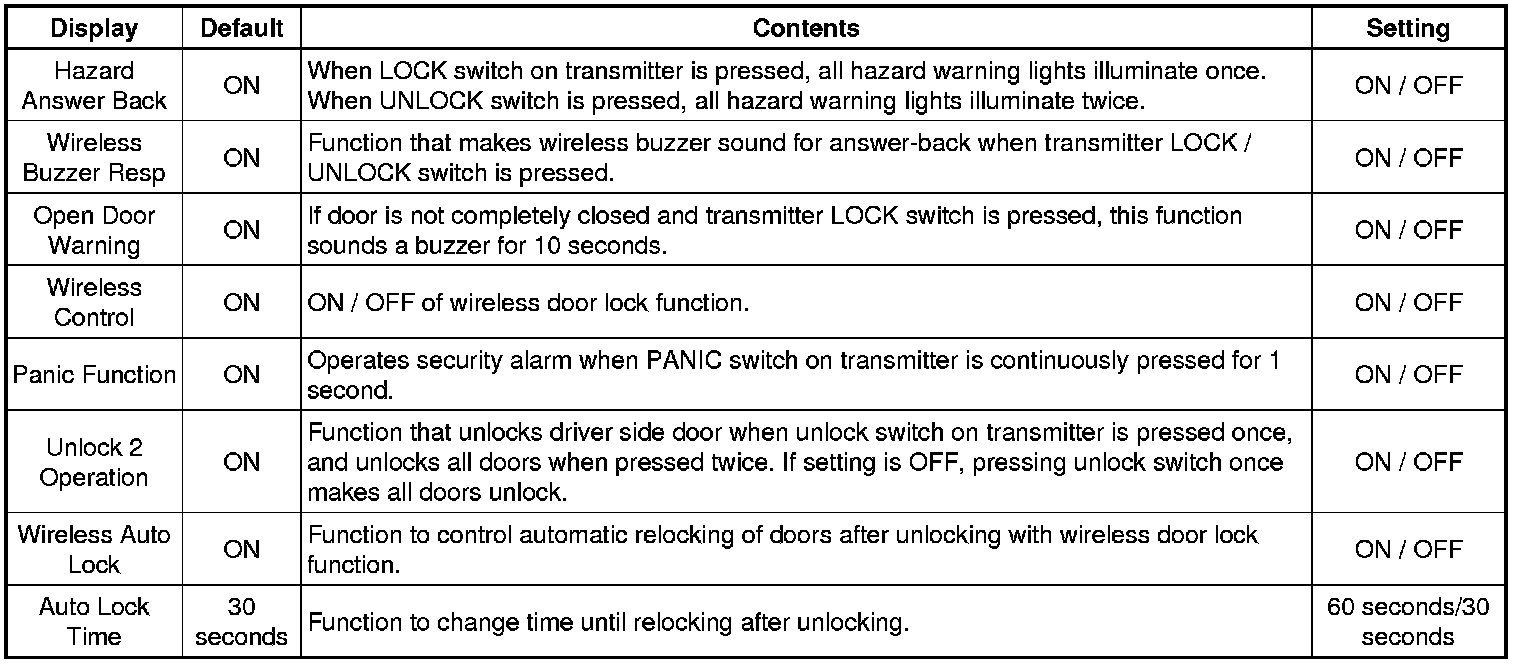

(g) WIRELESS DOOR LOCK CONTROL SYSTEM

Main Body

(h) METER / GAUGE SYSTEM

Warning:

(i) SLIDING ROOF SYSTEM

Sliding Roof

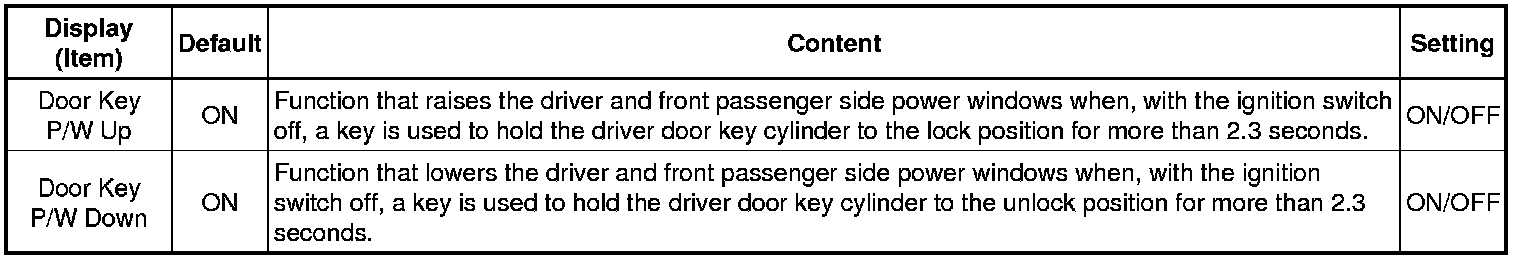

(j) POWER WINDOW CONTROL SYSTEM (w/Jam Protection Function)

Power Window

2. CUSTOMIZING FUNCTION WITH MULTI-INFORMATION DISPLAY (w/ Multi-information Display)

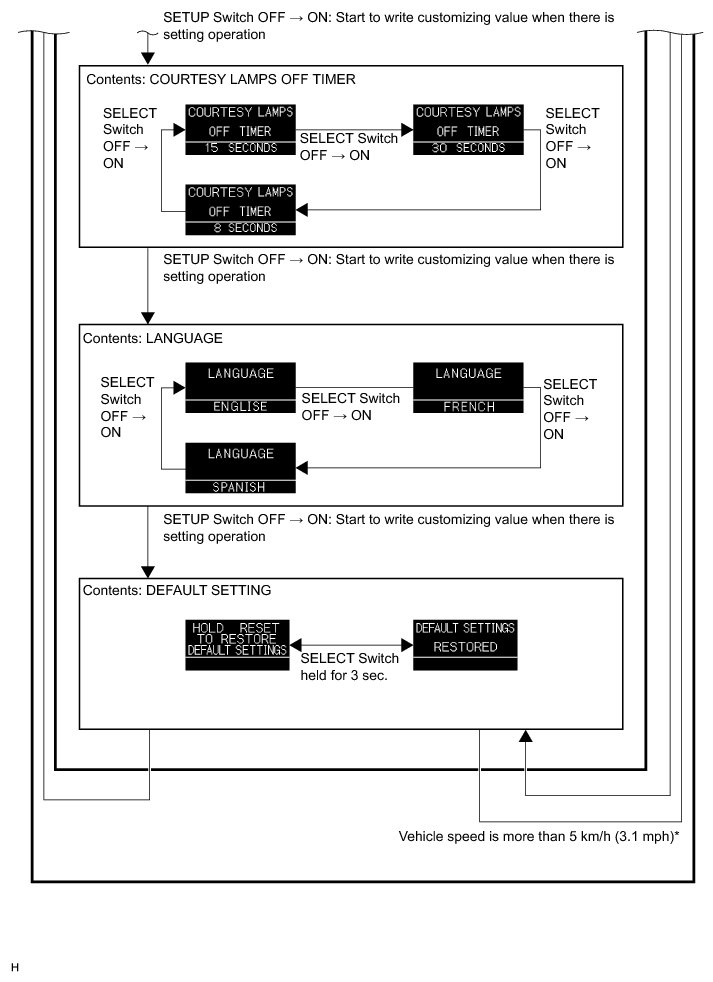

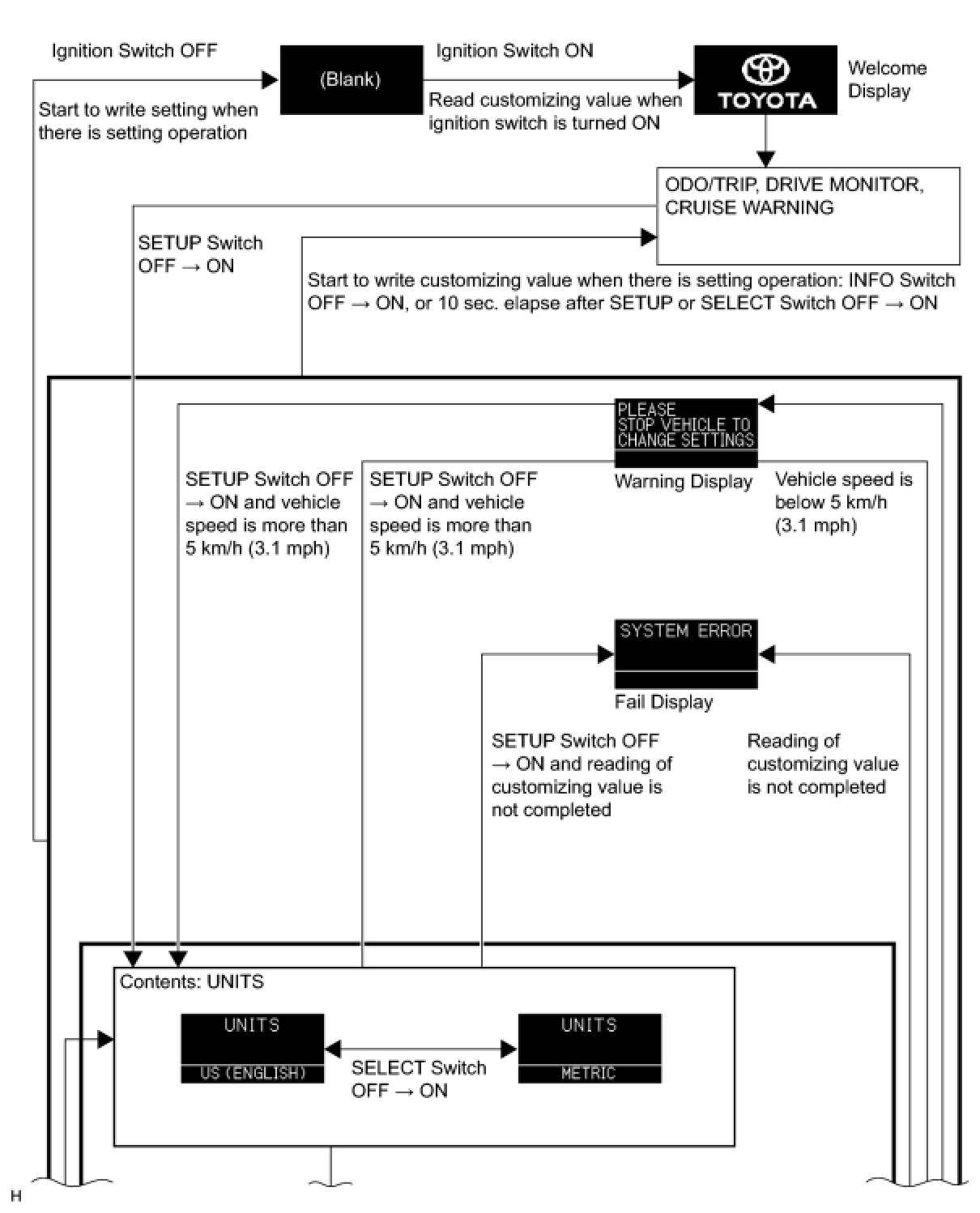

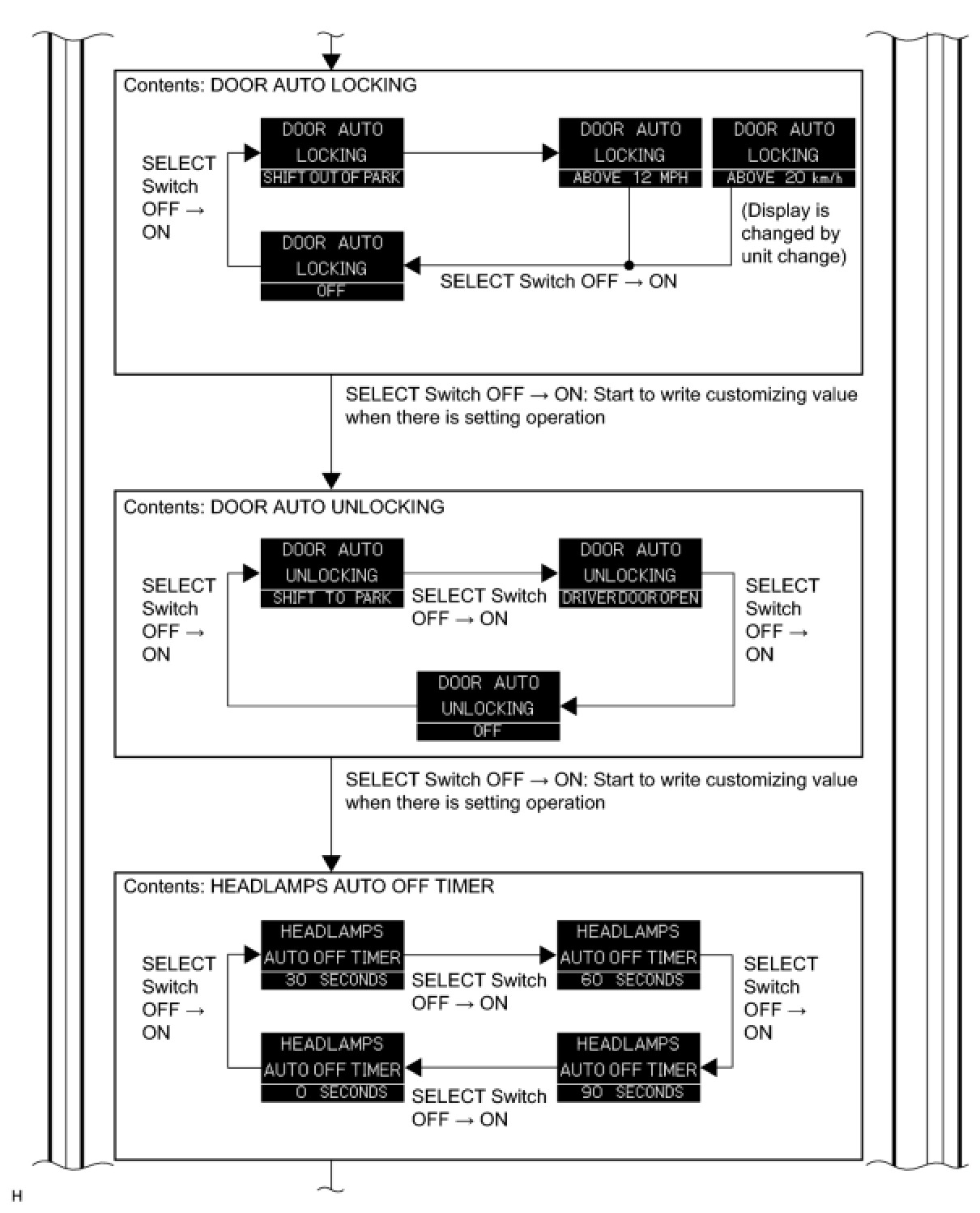

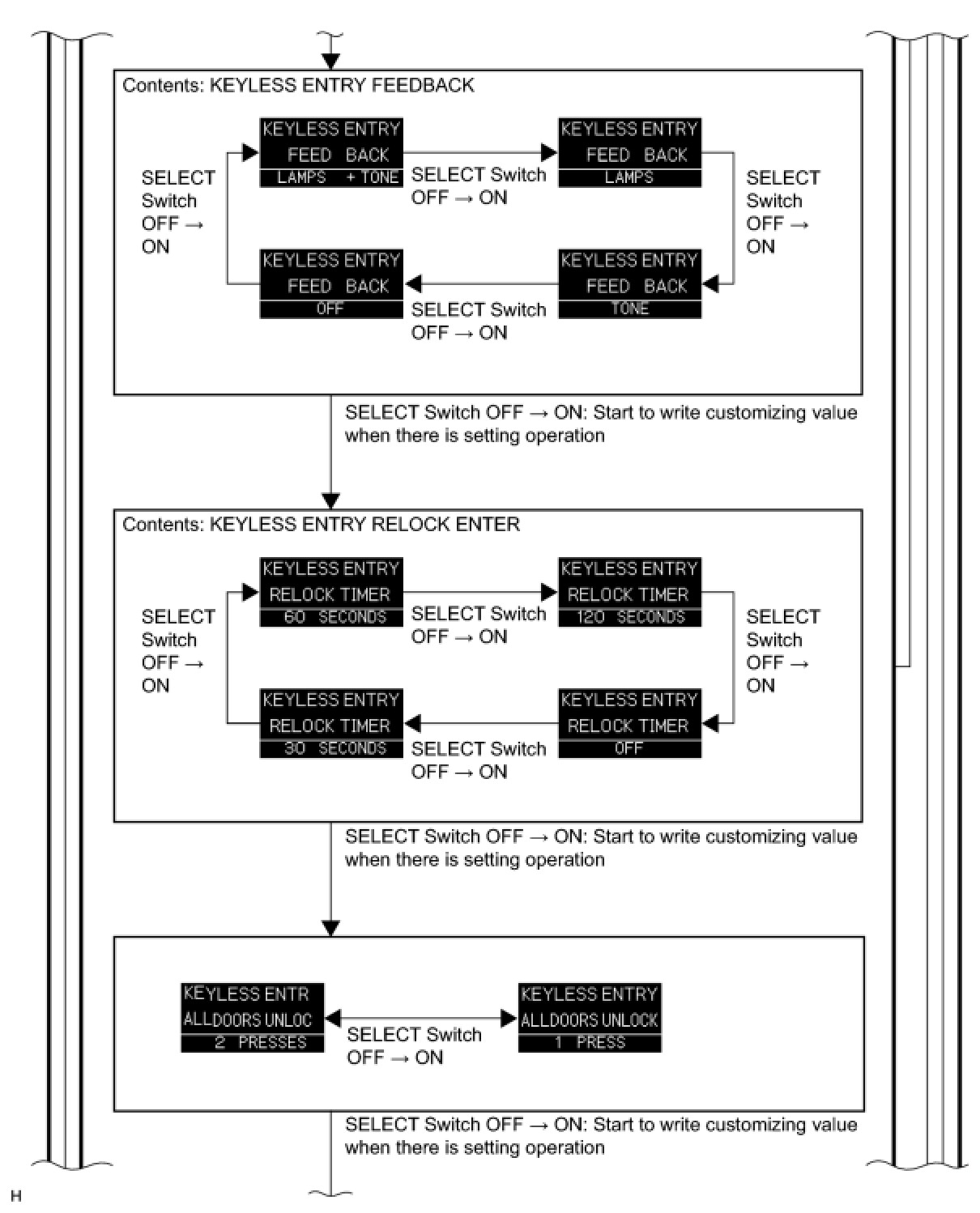

(a) Using the SETUP switch and SELECT switch, the following functions can be customized through the multi-information display. Refer to the illustration below.

* Unit setting

* Wireless door lock control system (answer-back function, automatic lock function, 2-step unlock function)

* Power door lock control system (automatic door lock function, automatic door unlock function)

* Lighting system (auto light turn off function)

* Default setting (customize setting cancel function)

HINT
*: When setting change operation is performed by SELECT switch, writing of customized value must be performed.
