Computers and Control Systems
SERVICE SPECIFICATIONS: 1UR-FE ENGINE CONTROL SYSTEM: SERVICE DATA

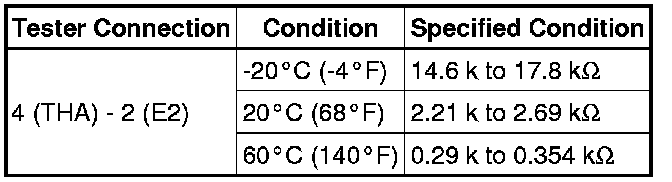

Manifold absolute pressure sensor:

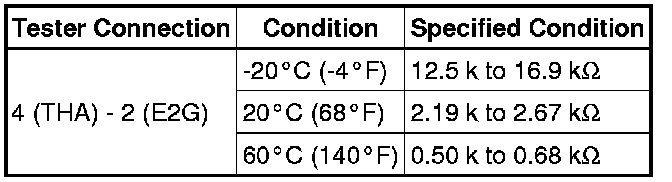

MAF meter:
Camshaft timing oil control valve:
Engine coolant temperature sensor:
Throttle body:
Knock sensor:

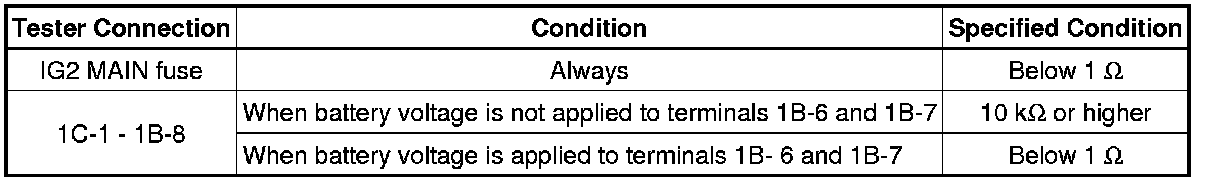

Ignition relay No. 2:

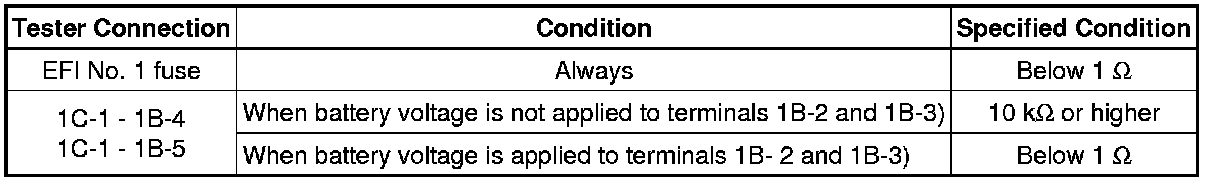

EFI relay:

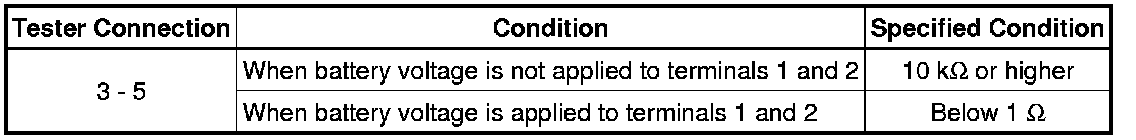

Fuel pump relay:
Air fuel ration sensor (for Bank 1 sensor 1):
Air fuel ration sensor (for Bank 2 sensor 1):
Heated oxygen sensor (for Bank 1 sensor 2):
Heated oxygen sensor (for Bank 2 sensor 2):

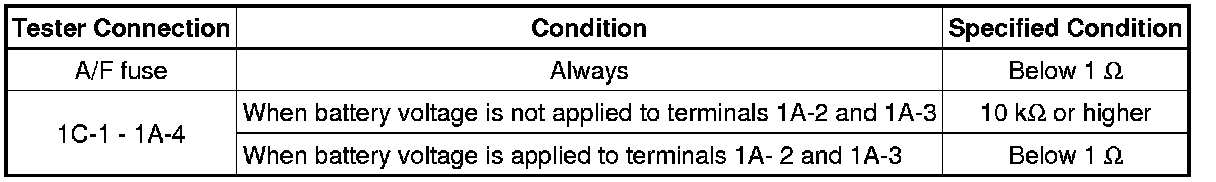

A/F sensor heater relay:
