Service Data





SERVICE SPECIFICATIONS: 1UR-FE ENGINE MECHANICAL: SERVICE DATA

ENGINE

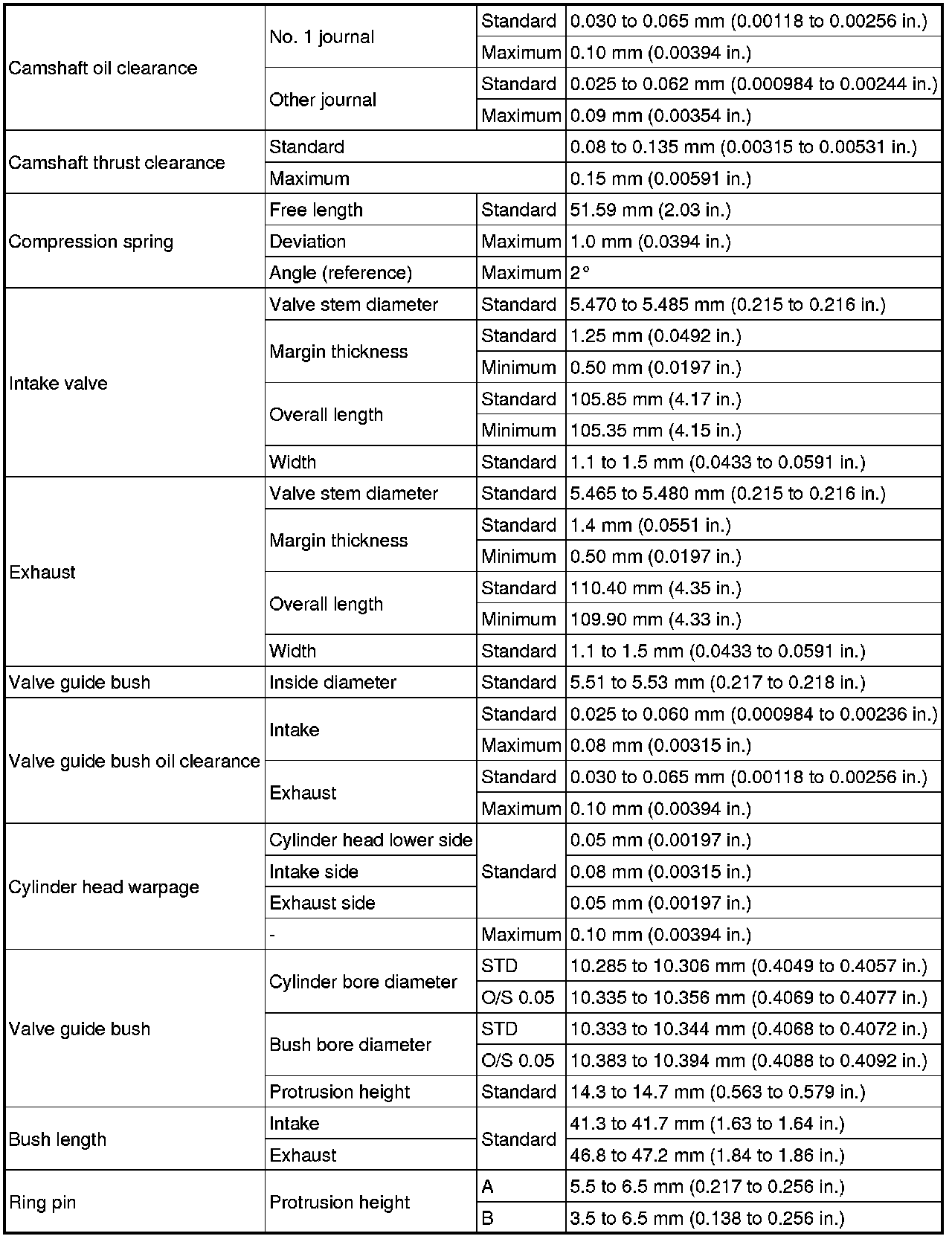

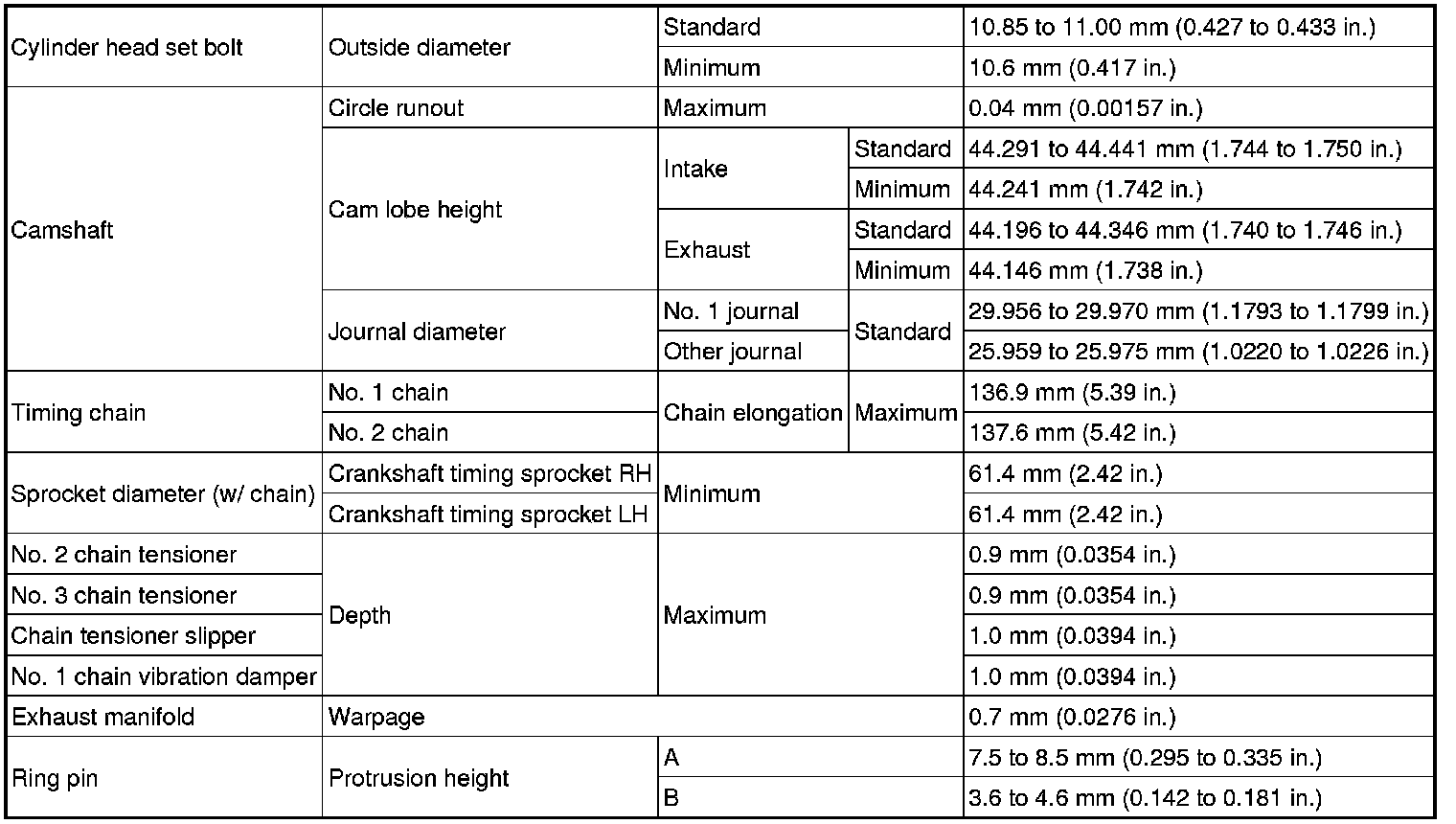

CYLINDER HEAD

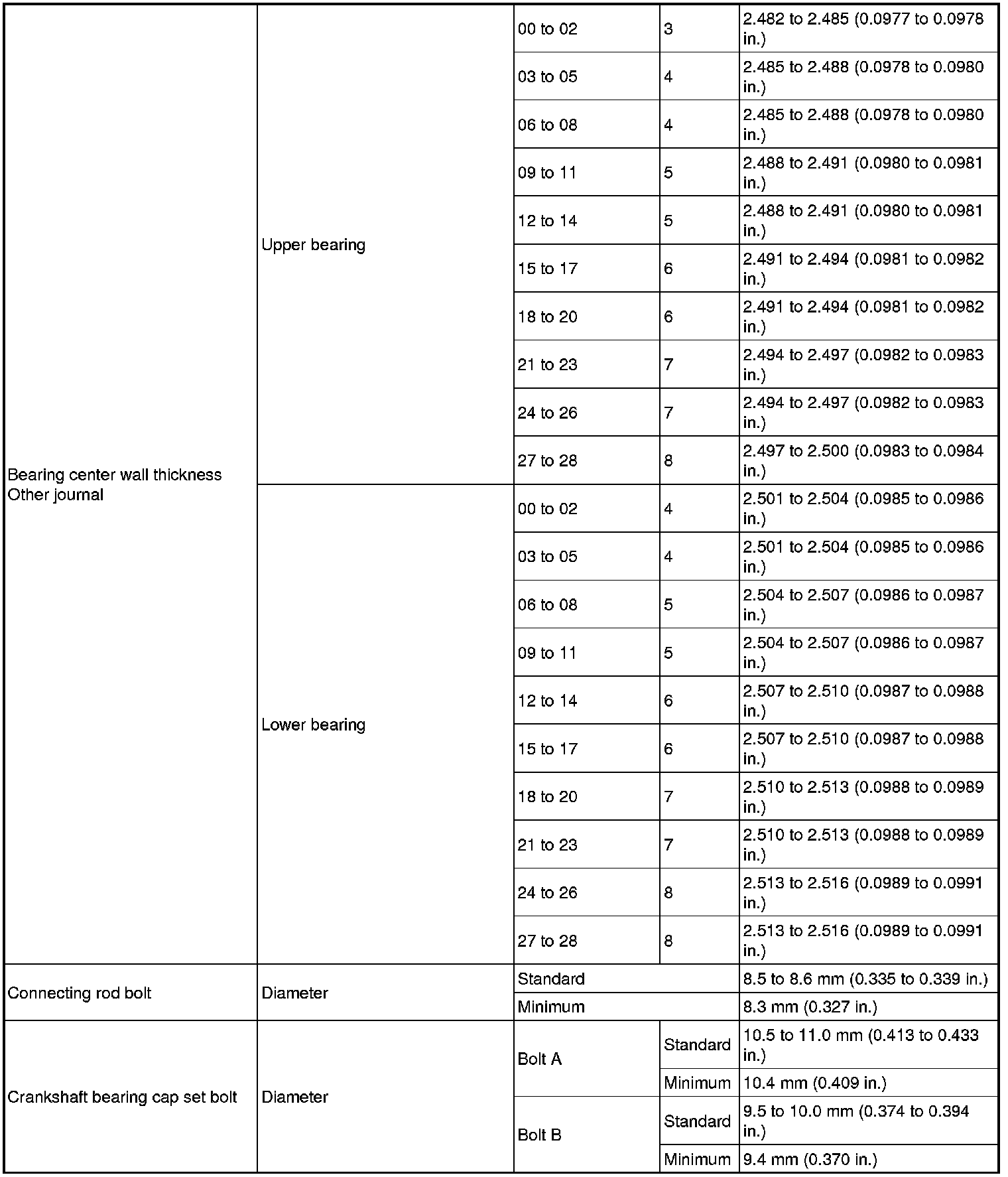

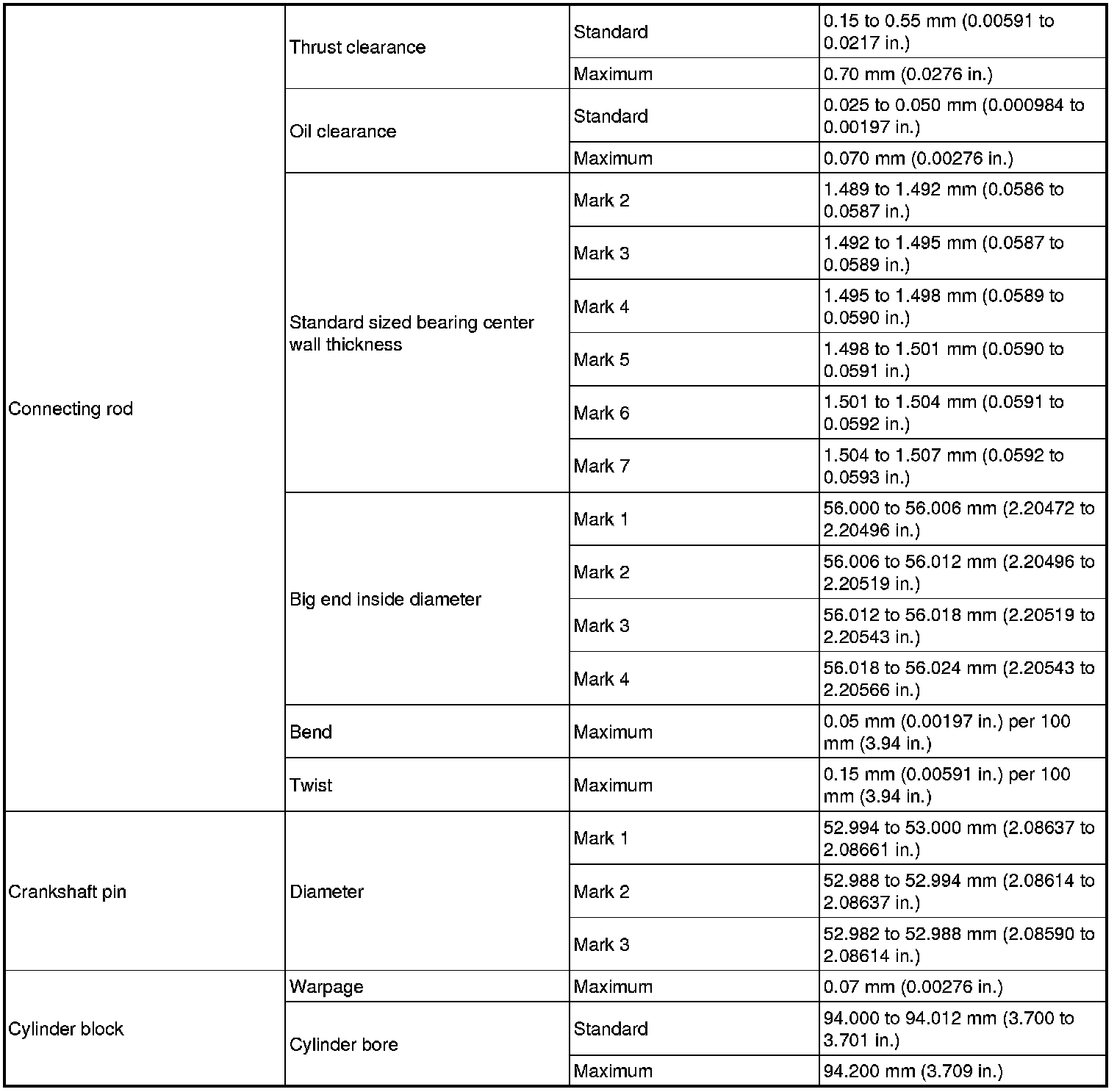

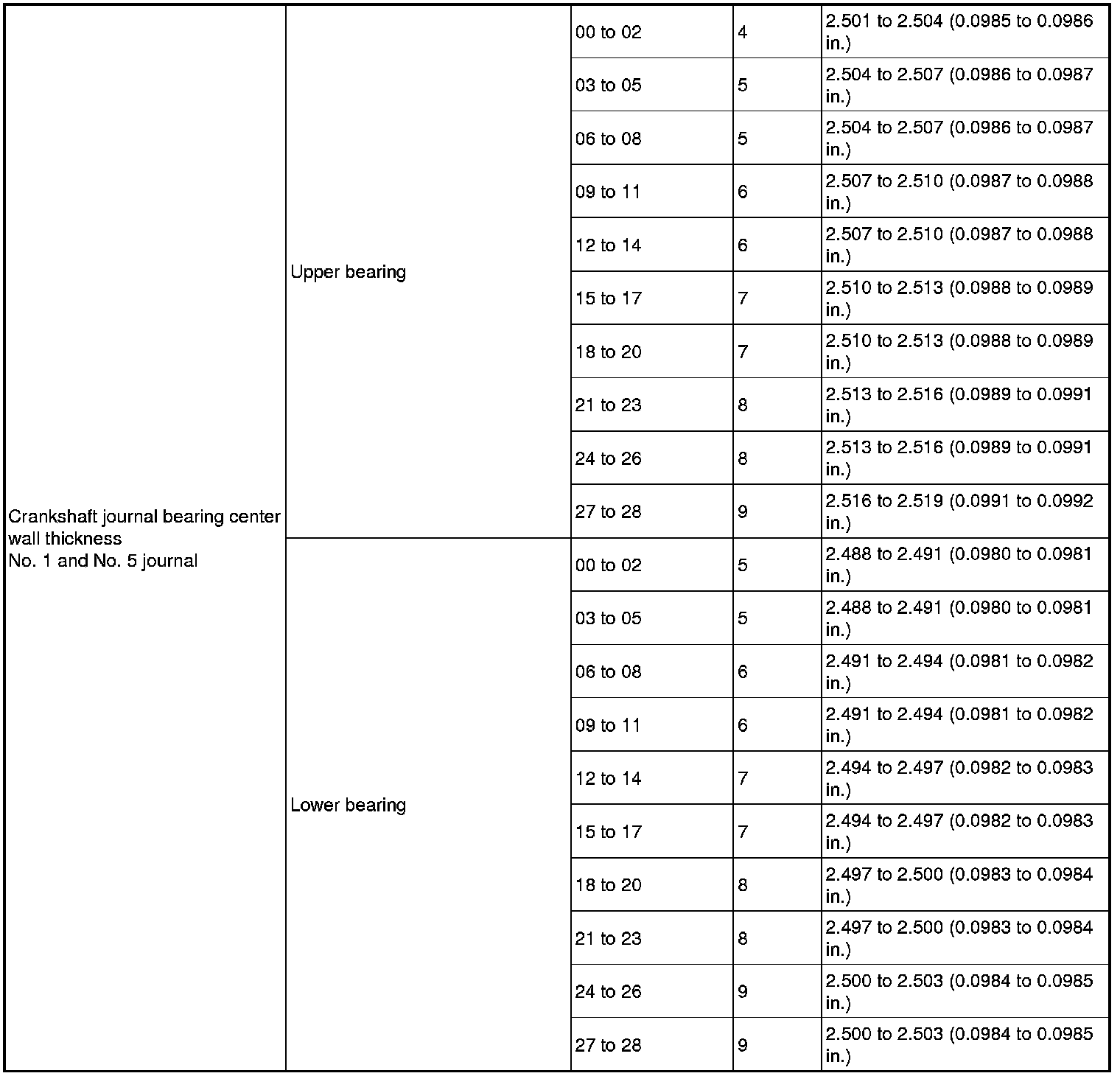

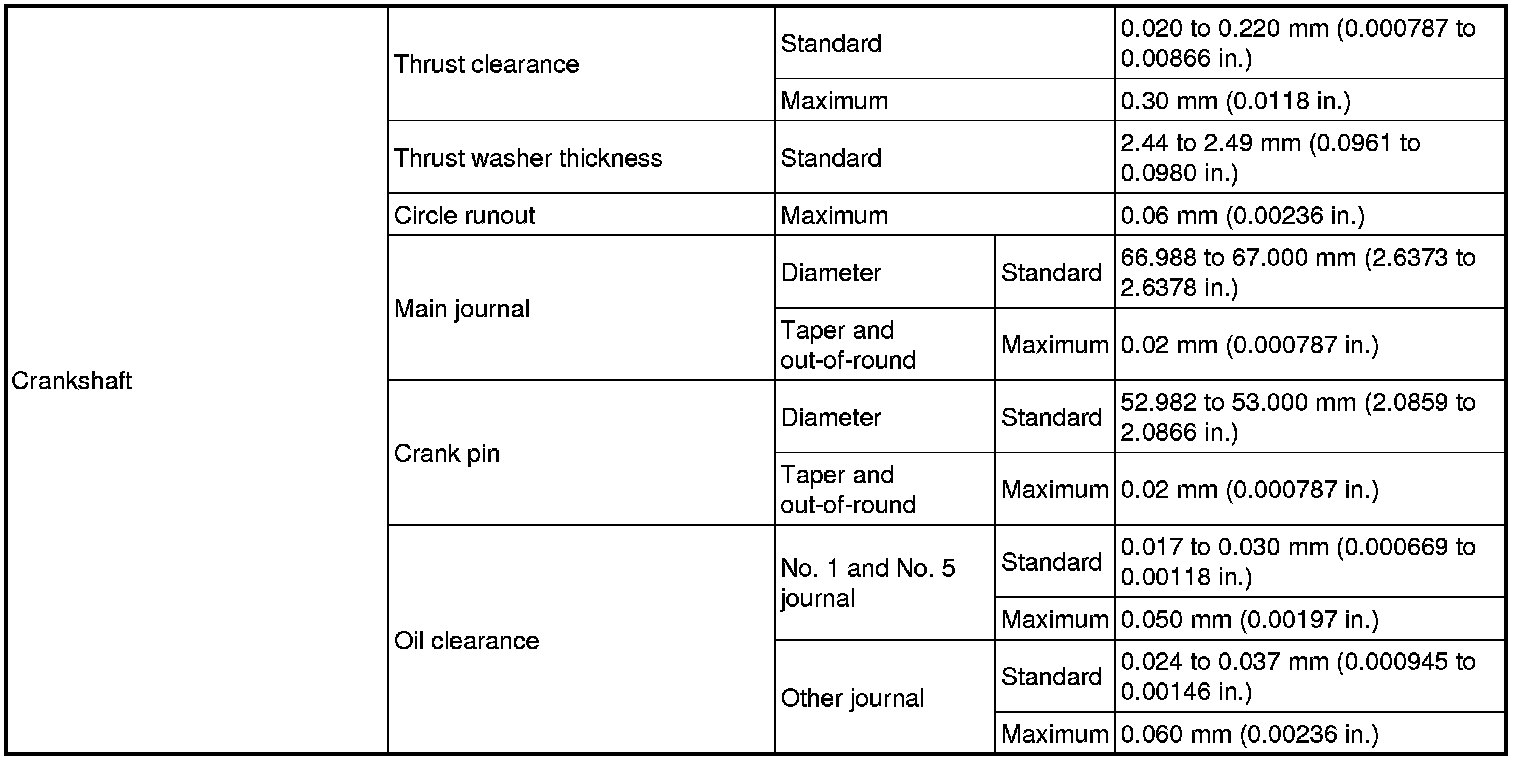

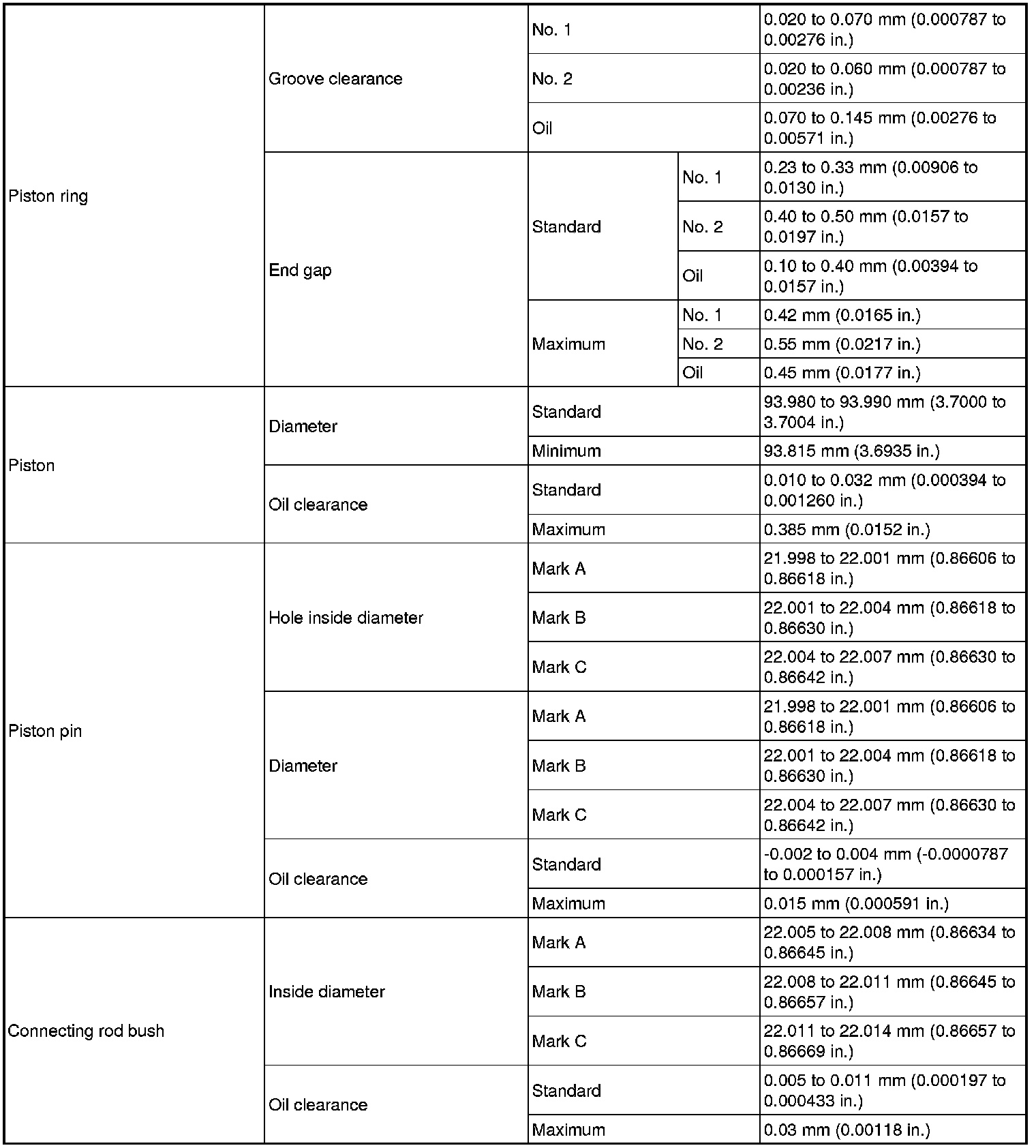

CYLINDER BLOCK


























ENGINE UNIT
