Torque Specifications

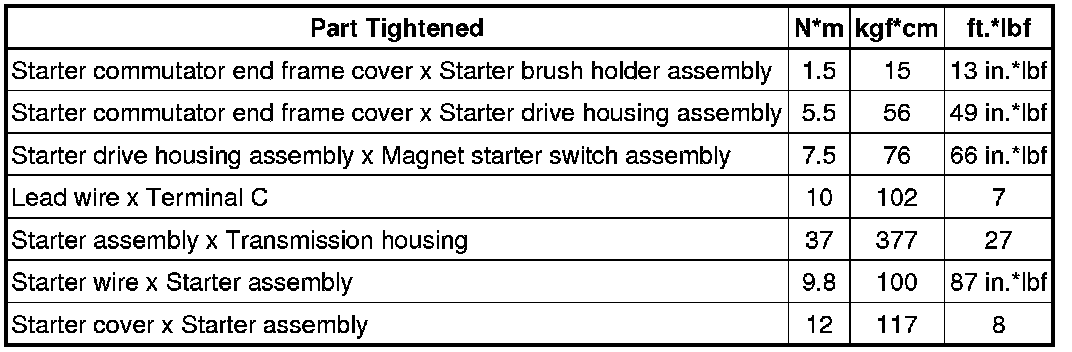

SERVICE SPECIFICATIONS: 1UR-FE STARTING: TORQUE SPECIFICATIONS

Starter (for 1.6 kW Type)





Starter (for 2.0 kW Type)
