Seat Temperature Control Module: Testing and Inspection

SEAT: SEAT HEATER CONTROL (w/ Seat Heater System or Climate Control Seat System): ON-VEHICLE INSPECTION

1. INSPECT SEAT HEATER CONTROL SUB-ASSEMBLY LH

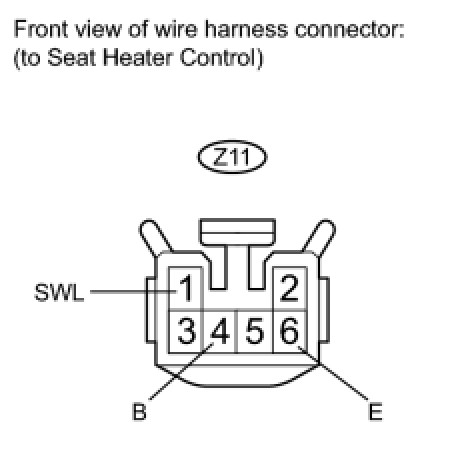

(a) Disconnect the Z11 connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:





If the result is not as specified, there may be a malfunction on the wire harness side.

(d) Connect the Z11 connector.

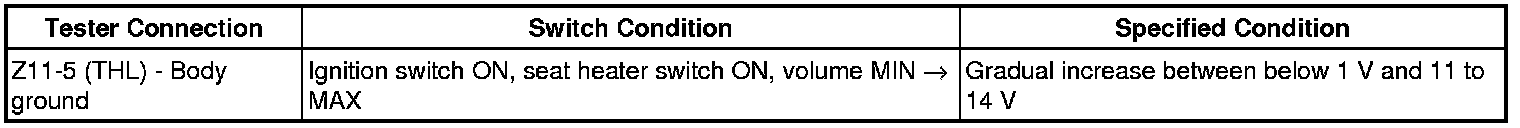

(e) Measure the voltage according to the value(s) in the table below.





Standard voltage:





If the result is not as specified, the seat heater control may have a malfunction.

2. INSPECT SEAT HEATER CONTROL SUB-ASSEMBLY RH

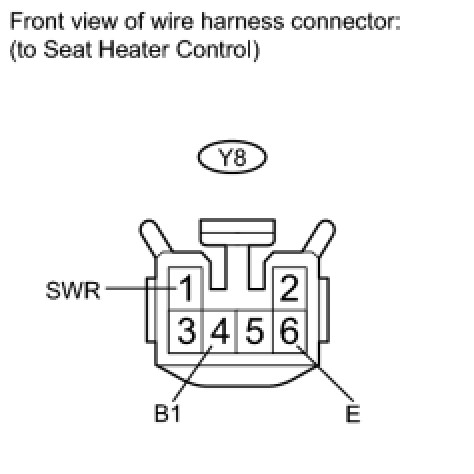

(a) Disconnect the Y8 connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the result is not as specified, there may be a malfunction on the wire harness side.

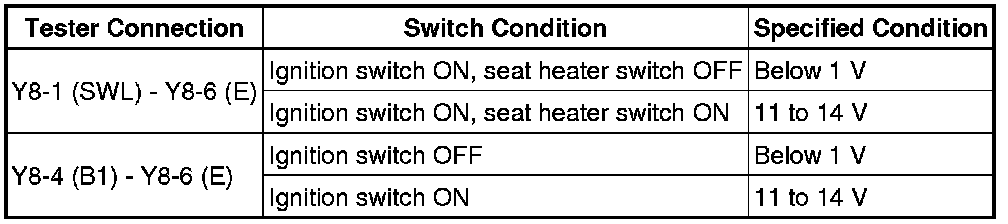

(c) Measure the voltage according to the value(s) in the table below.

Standard voltage:





If the result is not as specified, there may be a malfunction on the wire harness side.

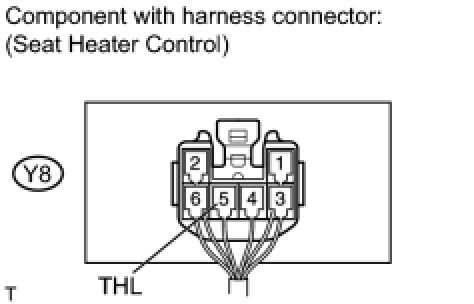

(d) Connect the Y8 connector.

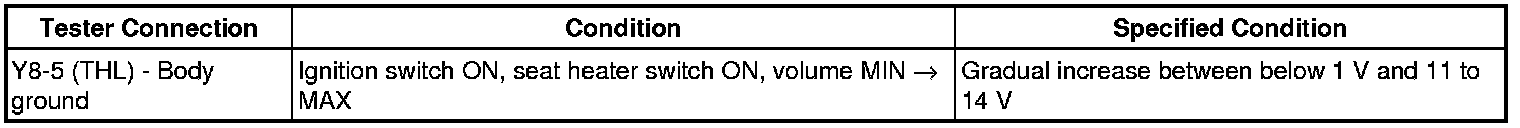

(e) Measure the voltage according to the value(s) in the table below.





Standard voltage:





If the result is not as specified, the seat heater control may have a malfunction.
