Brakes and Traction Control





SPECIFICATIONS: BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: SERVICE DATA

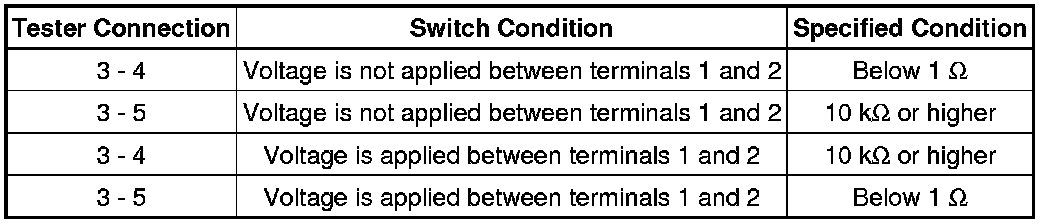

Stop Light Control (BRK) Relay

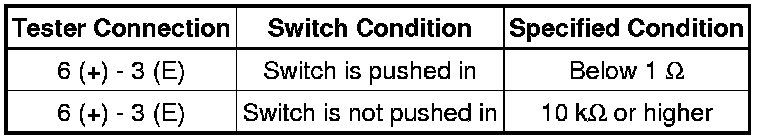

VSC OFF Switch

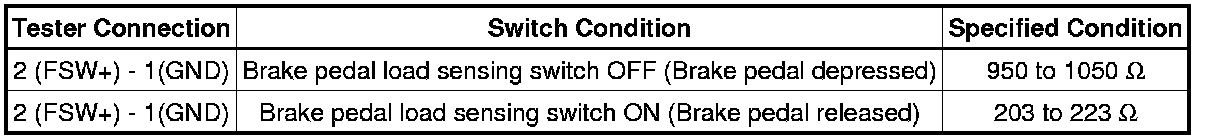

Brake Pedal Load Sensing Switch
