2GR-FE ENGINE CONTROL: KNOCK SENSOR: INSTALLATION

1. INSTALL KNOCK CONTROL SENSOR

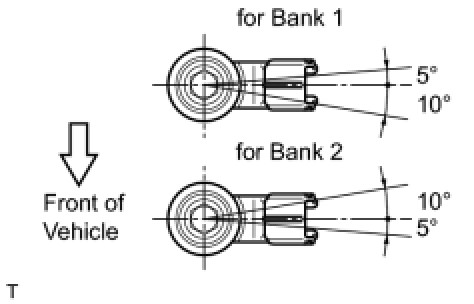

(a) Install the 2 knock control sensors with the 2 bolts as shown in the illustration.

Torque : 20 Nm (204 kgf-cm, 15 ft-lbf)

NOTICE:
Make sure that each knock control sensor is in the correct position.

(b) Connect the 2 knock control sensor connectors.

2. INSTALL INTAKE MANIFOLD

(a) Install the intake manifold Installation.
