Body Control Module: Locations

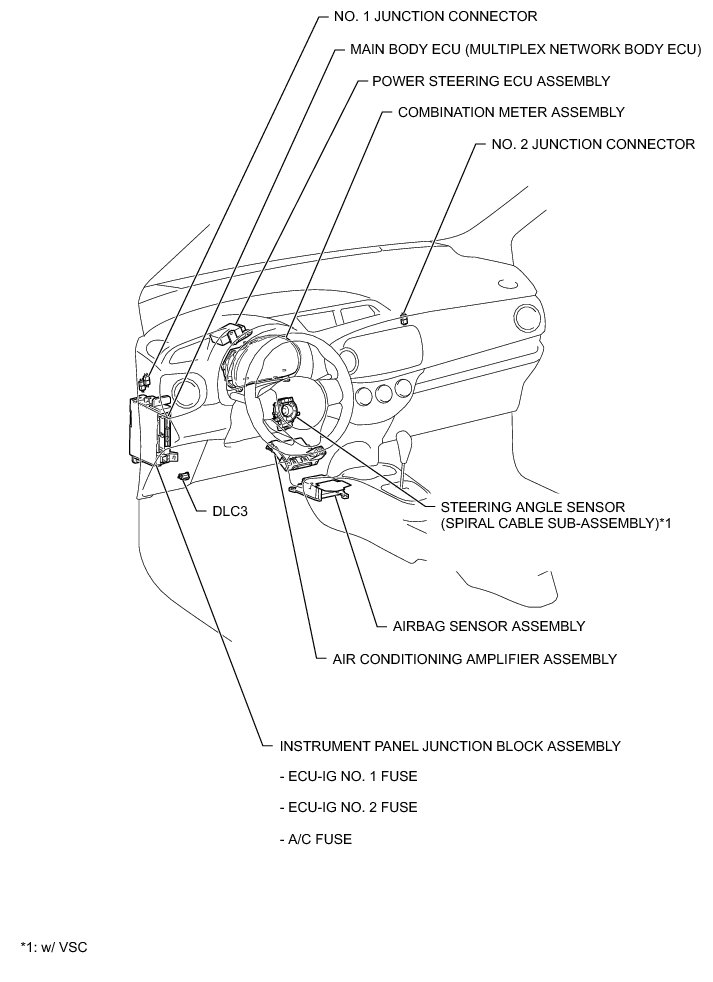

NETWORKING: CAN COMMUNICATION SYSTEM (for Hatchback except Separate Type Yaw Rate Sensor): PARTS LOCATION





21 - Instrument Panel:
