Components (from 07/2011)
Components (from 07/2011)

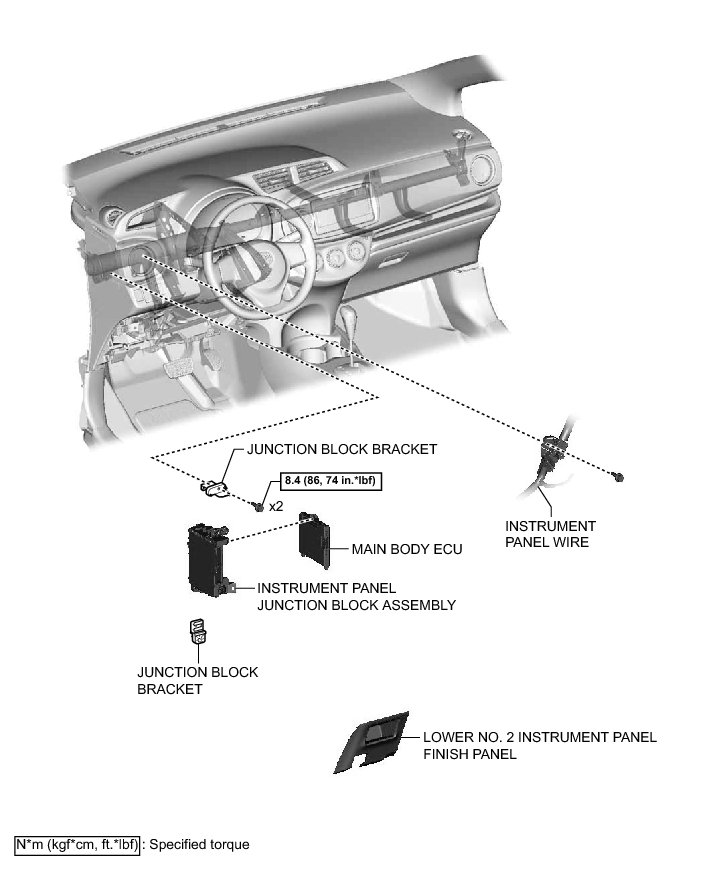

POWER DISTRIBUTION: MAIN BODY ECU (for Hatchback): COMPONENTS
