Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Torque Specifications (from 07/2011)

Torque Specifications (from 07/2011)

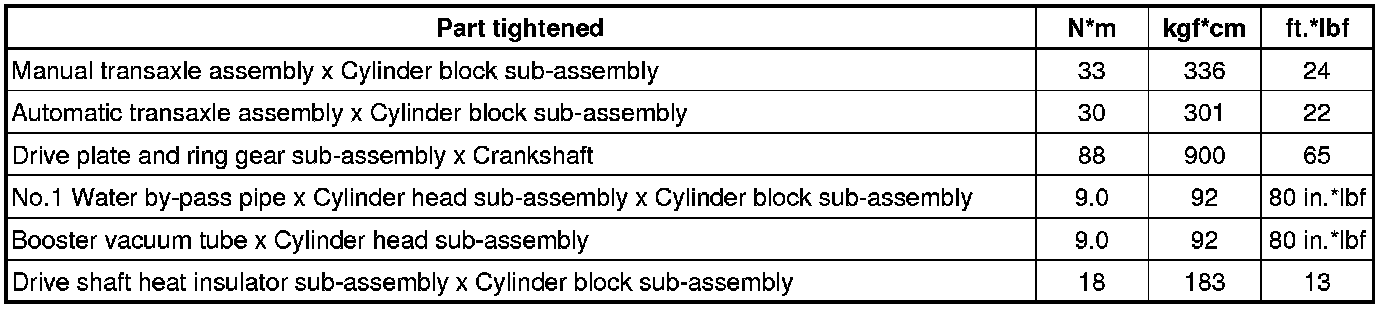

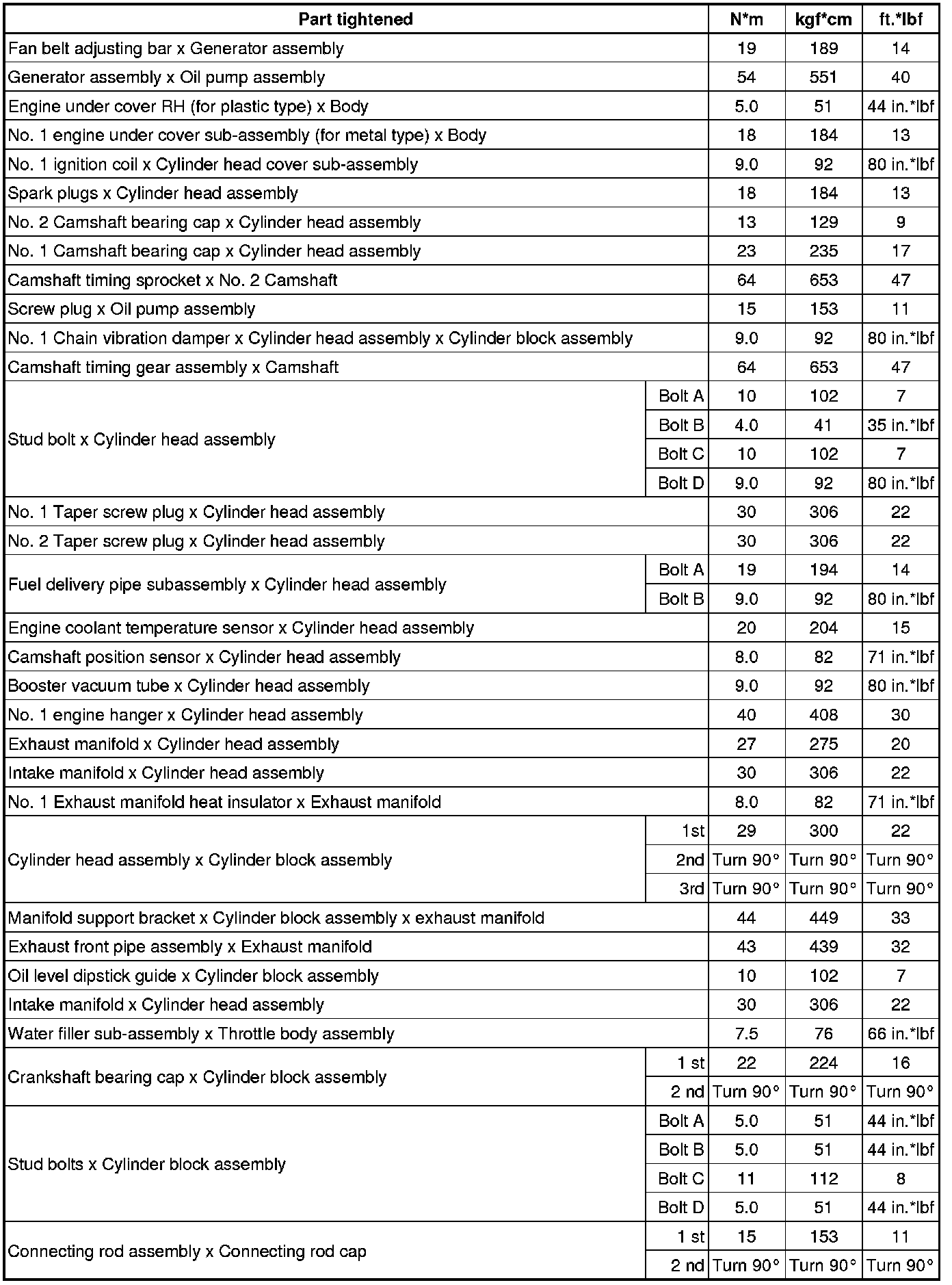

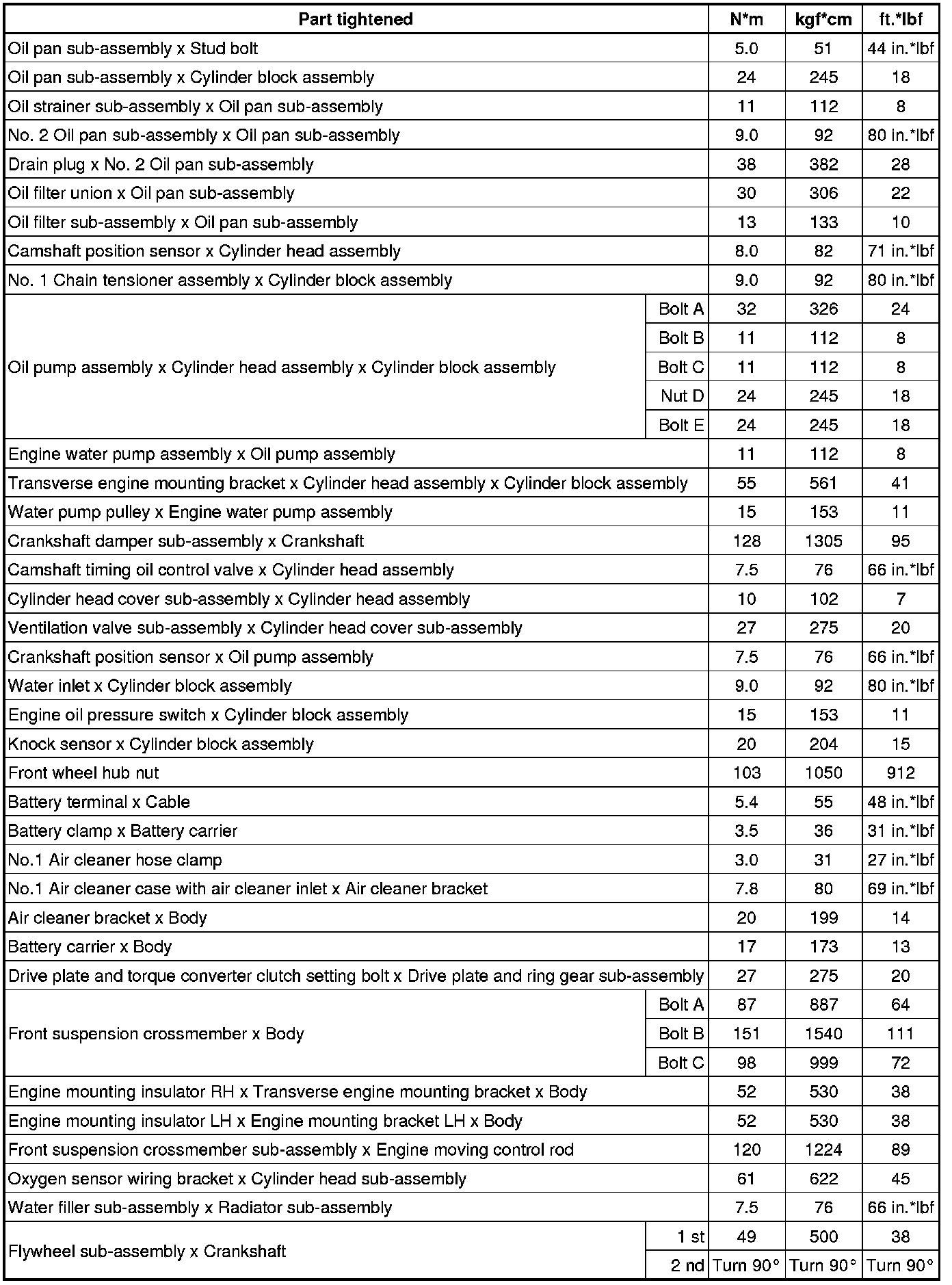

SPECIFICATIONS: 1NZ-FE ENGINE MECHANICAL (for Hatchback): TORQUE SPECIFICATIONS
