Torque Specifications (from 07/2011)

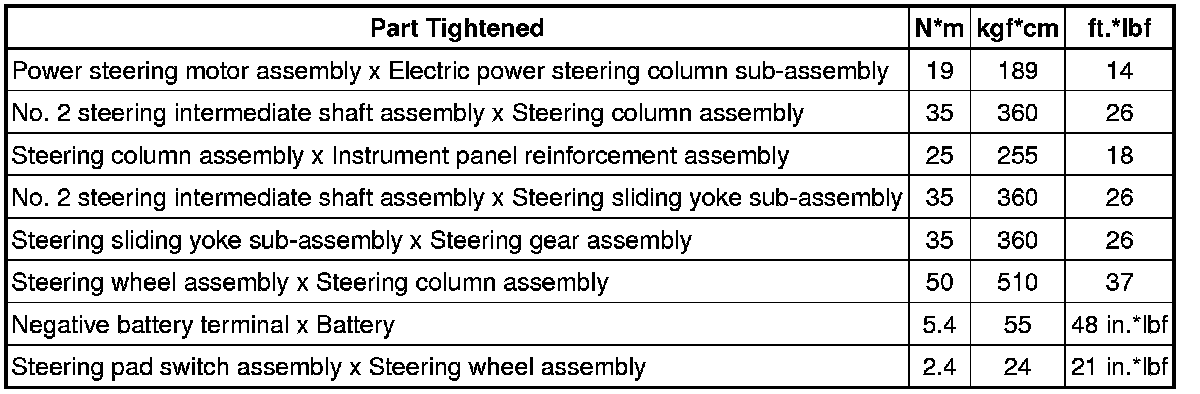

SPECIFICATIONS: STEERING COLUMN (for Hatchback): TORQUE SPECIFICATIONS
