Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Motor >> Service and Repair >> Removal and Replacement >> Hatchback Except Cold Area Specification Vehicles >> Components

Components

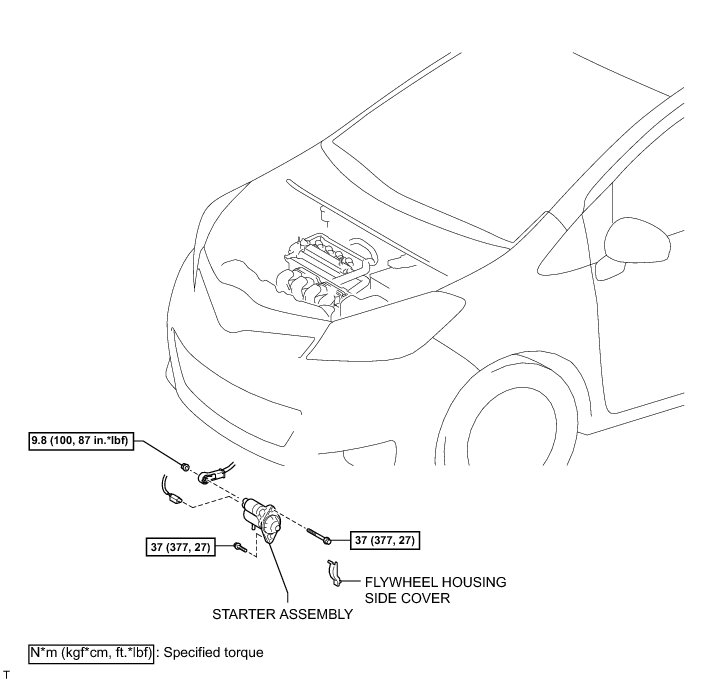

1NZ-FE STARTING: STARTER (for Hatchback Except Cold Area Specification Vehicles): COMPONENTS
