Steering Control Module: Locations

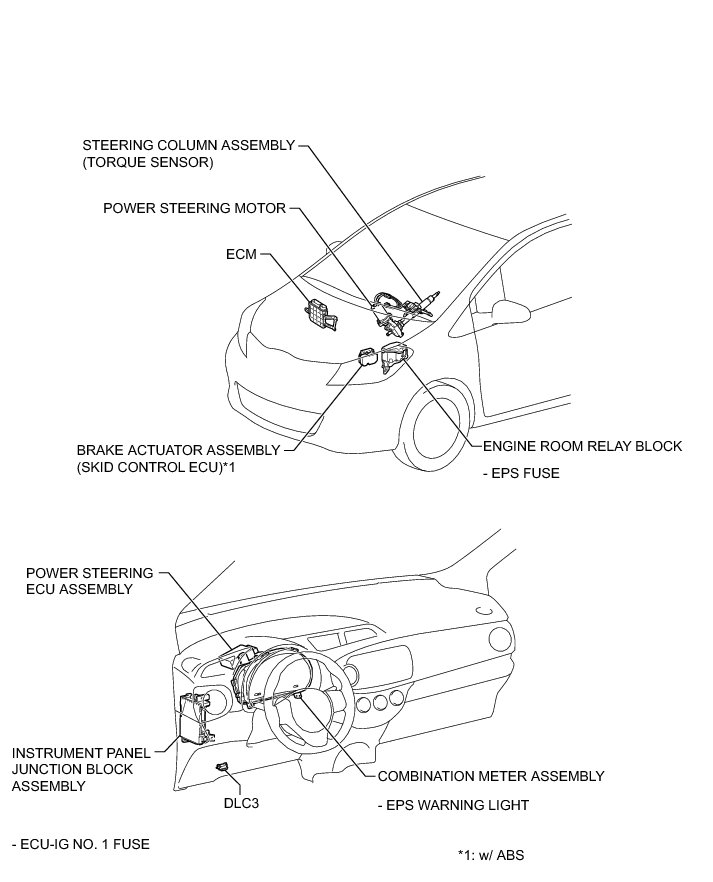

POWER ASSIST SYSTEMS: POWER STEERING SYSTEM (for Hatchback): PARTS LOCATION





21 - Instrument Panel:
