Programming and Relearning
DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (for Sedan): CUSTOMIZE PARAMETERS
1. CUSTOMIZING FUNCTION WITH TECHSTREAM (REFERENCE)
HINT
The following items can be customized.
NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Record the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.
(a) Connect a Techstream to the DLC3.
(b) Turn the ignition switch ON.
(c) Turn the tester on.
(d) Enter the following menus: Body Electrical / Main Body / Utility / Customize / Wireless Door Lock.

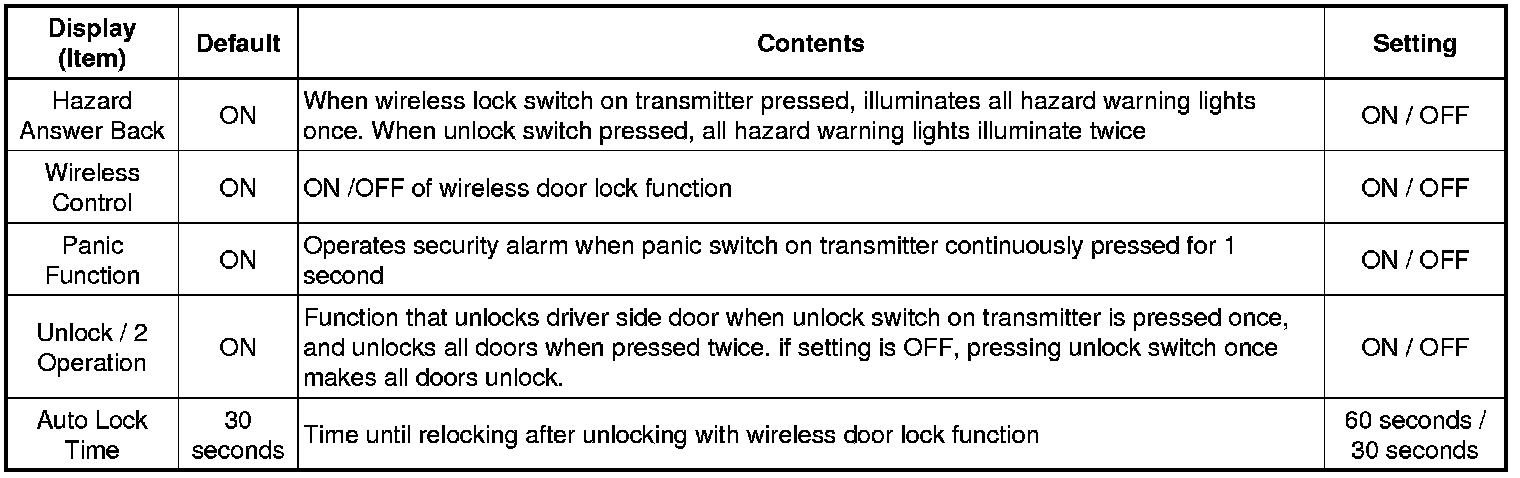

(e) Select the setting by referring to the table below.
Main Body:
