Installation
CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH (for Sedan): INSTALLATION 1.
INSTALL CRUISE CONTROL MAIN SWITCH
(a)

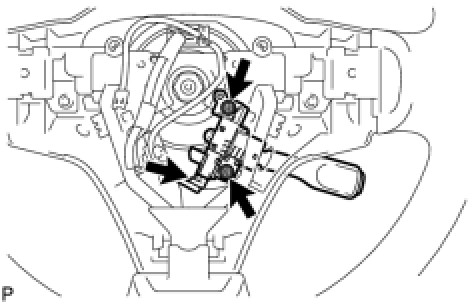

Install the cruise control main switch with the 2 screws.
Torque : 2.4 Nm (24 kgf-cm, 21 in-lbf) (b)
Connect the connector.
2.
INSTALL STEERING PAD
Installation 3.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf) 4.
INSPECT SRS WARNING LIGHT
Diagnosis System
