HEATING / AIR CONDITIONING: AIR CONDITIONING PANEL (for Sedan): DISASSEMBLY

1. REMOVE NO. 3 HEATER CONTROL KNOB

(a) Disengage the 2 claws and remove the No. 3 heater control knob.

(b) Remove the bulb.

2. REMOVE HEATER CONTROL BASE SUB-ASSEMBLY

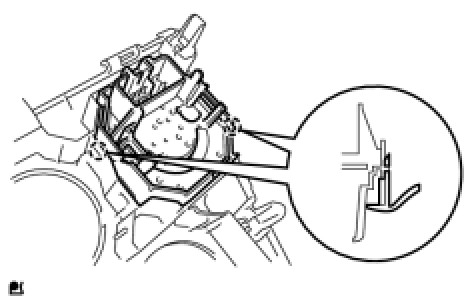

(a) Disengage the 2 claws and remove the heater control base.

(b) Remove the bulb.

3. REMOVE HEATER CONTROL SUB-ASSEMBLY

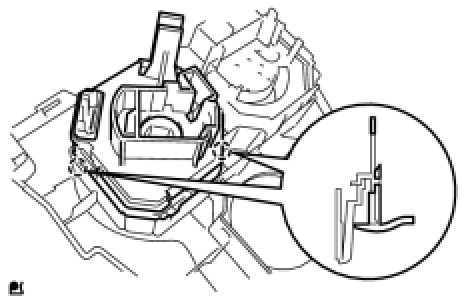

(a) Disengage the 2 claws and remove the heater control.

(b) Remove the bulb.
