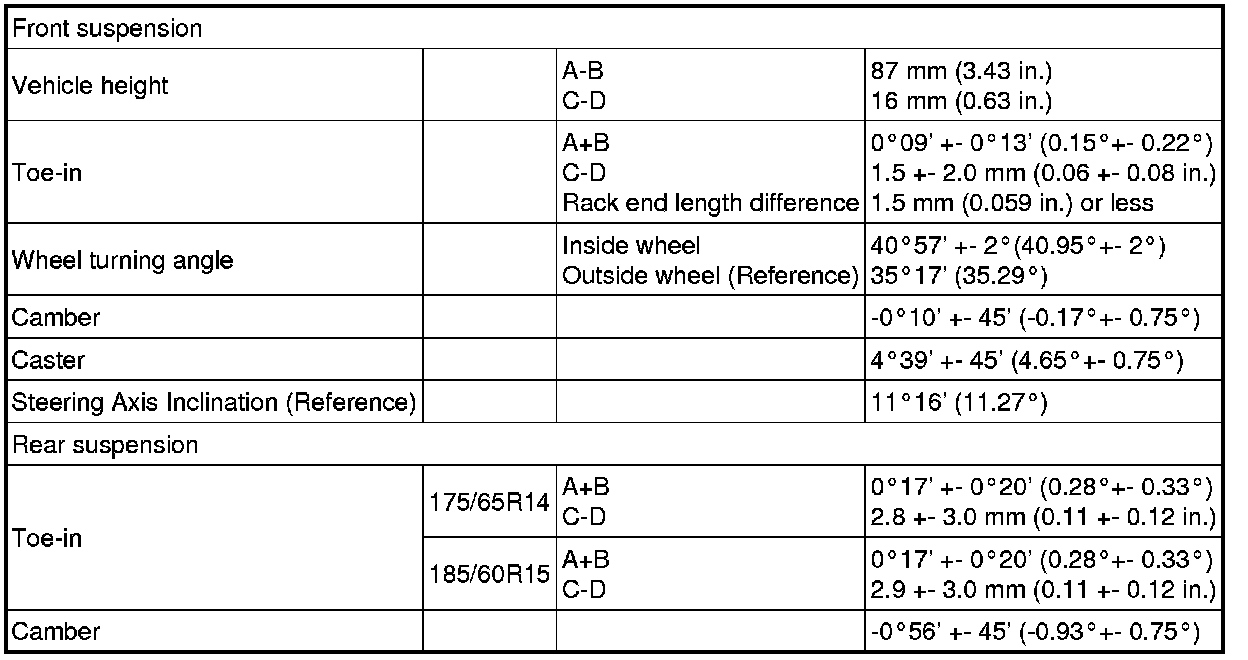

Service Data

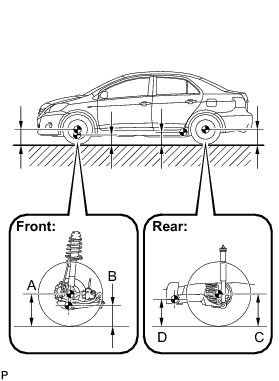

SPECIFICATIONS: ALIGNMENT / HANDLING DIAGNOSIS (for Sedan): SERVICE DATAExcept Rough Road PackageRough Road PackageMEASURE VEHICLE HEIGHTMeasuring points:
A
Ground clearance of front wheel center
B
Ground clearance of lower arm set front bolt center
C
Ground clearance of rear wheel center
D
Ground clearance of axle beam set bolt center

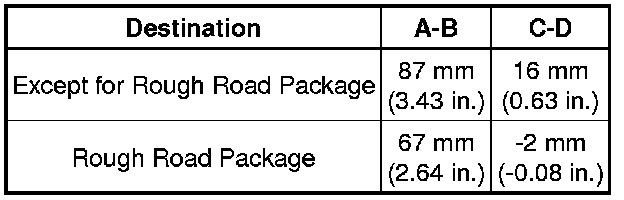

Vehicle Height (Unloaded Vehicle):
