Removal
1NZ-FE ENGINE CONTROL: MASS AIR FLOW METER (for Sedan): REMOVAL 1.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2.
REMOVE MASS AIR FLOW METER
(a)

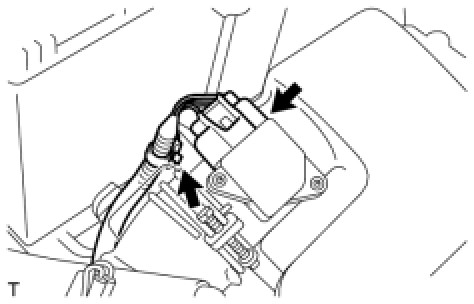

Disconnect the wire harness clamp and mass air flow meter connector.
(b)
Remove the 2 screws and the mass air flow meter.
(c)
Remove the O-ring from the mass air flow meter.
