Removal

1NZ-FE ENGINE CONTROL: CAMSHAFT POSITION SENSOR (for Sedan): REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE CAMSHAFT POSITION SENSOR

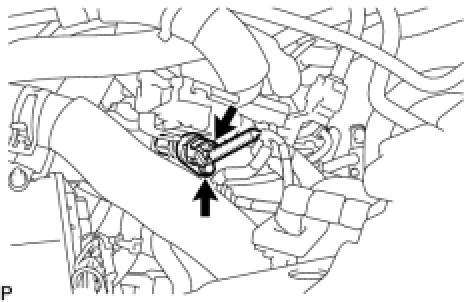

(a) Disconnect the camshaft position sensor connector.

(b) Remove the bolt and remove the camshaft position sensor.
