Installation
1NZ-FE ENGINE CONTROL: CRANKSHAFT POSITION SENSOR (for Sedan): INSTALLATION

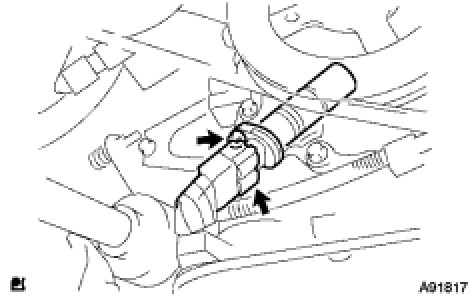

1. INSTALL CRANKSHAFT POSITION SENSOR
(a) Apply a light coat of engine oil to the O-ring on the crankshaft position sensor.
(b) Install the crankshaft position sensor with the bolt.
Torque : 7.5 Nm (76 kgf-cm, 66 in-lbf)
NOTICE:
Do not twist the O-ring.
(c) Connect the crankshaft position sensor connector.
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)
3. CHECK FOR ENGINE OIL LEAKAGE
4. INSTALL ENGINE UNDER COVER RH
