Removal
1NZ-FE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR (for Sedan): REMOVAL 1.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2.
DRAIN ENGINE COOLANT
Service and Repair 3.
REMOVE ENGINE COOLANT TEMPERATURE SENSOR
(a)

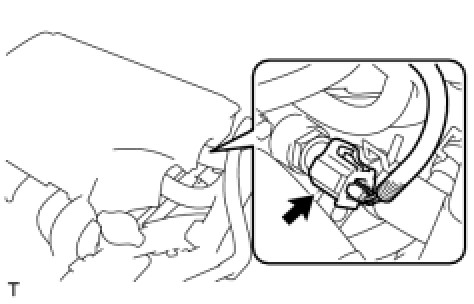

Disconnect the engine coolant temperature sensor connector.
(b)
Using SST, remove the engine coolant temperature sensor.
SST : 09817-33190
