Problem Symptoms Table





NETWORKING: CAN COMMUNICATION SYSTEM (for Sedan): PROBLEM SYMPTOMS TABLE

Result List of Check CAN Bus Line

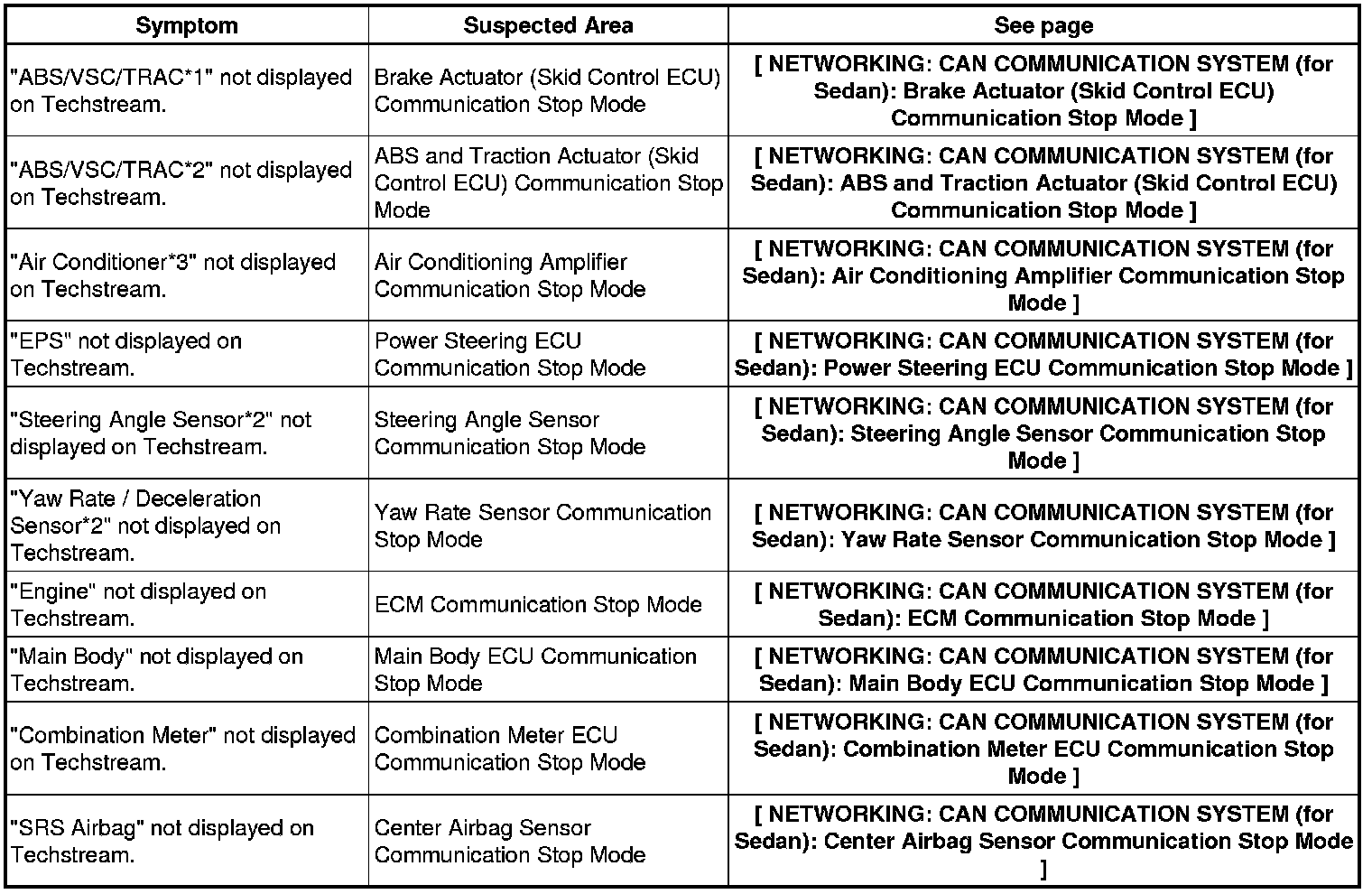

Communication Stop Mode Table





*1: w/ ABS

*2: w/ VSC

*3: w/ Air Conditioning or PTC Heater
