System Diagram
U340E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM (for Sedan): SYSTEM DIAGRAM

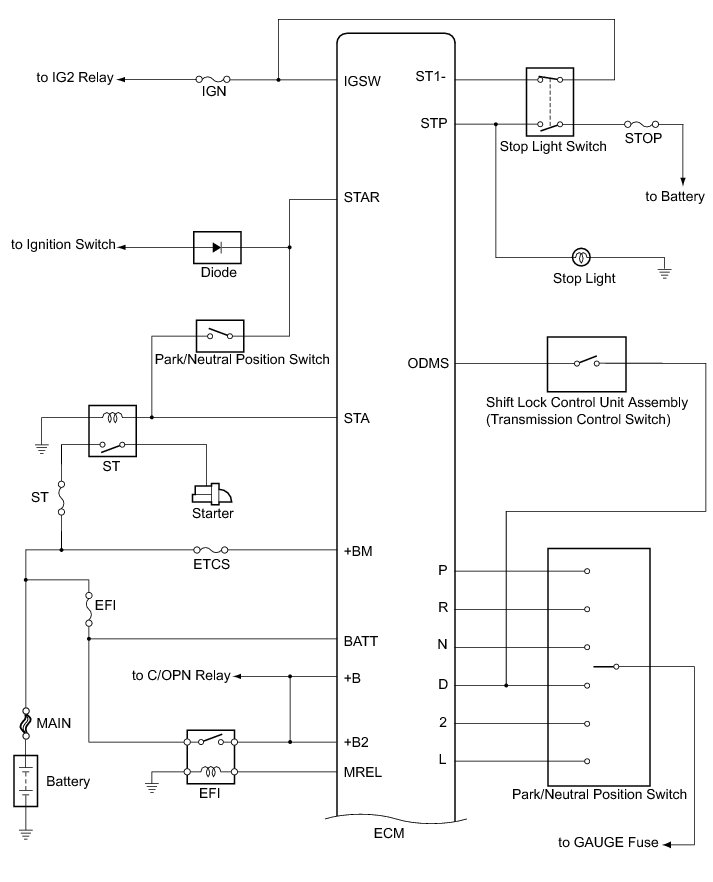

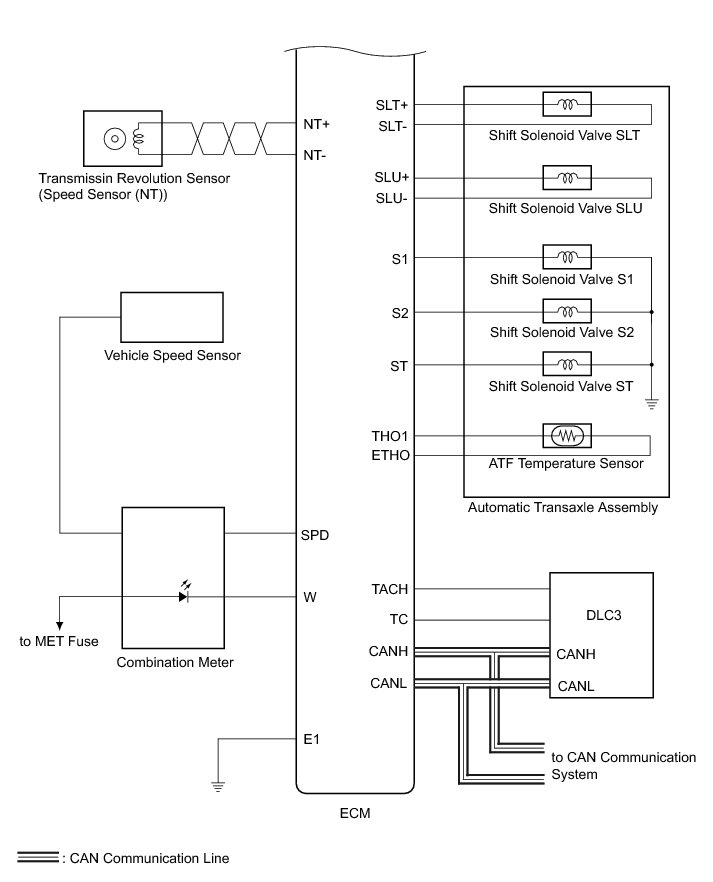

The configuration of the electronic control system in the U340E automatic transaxle is as shown in the following chart.
U340E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM (for Sedan): SYSTEM DIAGRAM
The configuration of the electronic control system in the U340E automatic transaxle is as shown in the following chart.
