Service Data

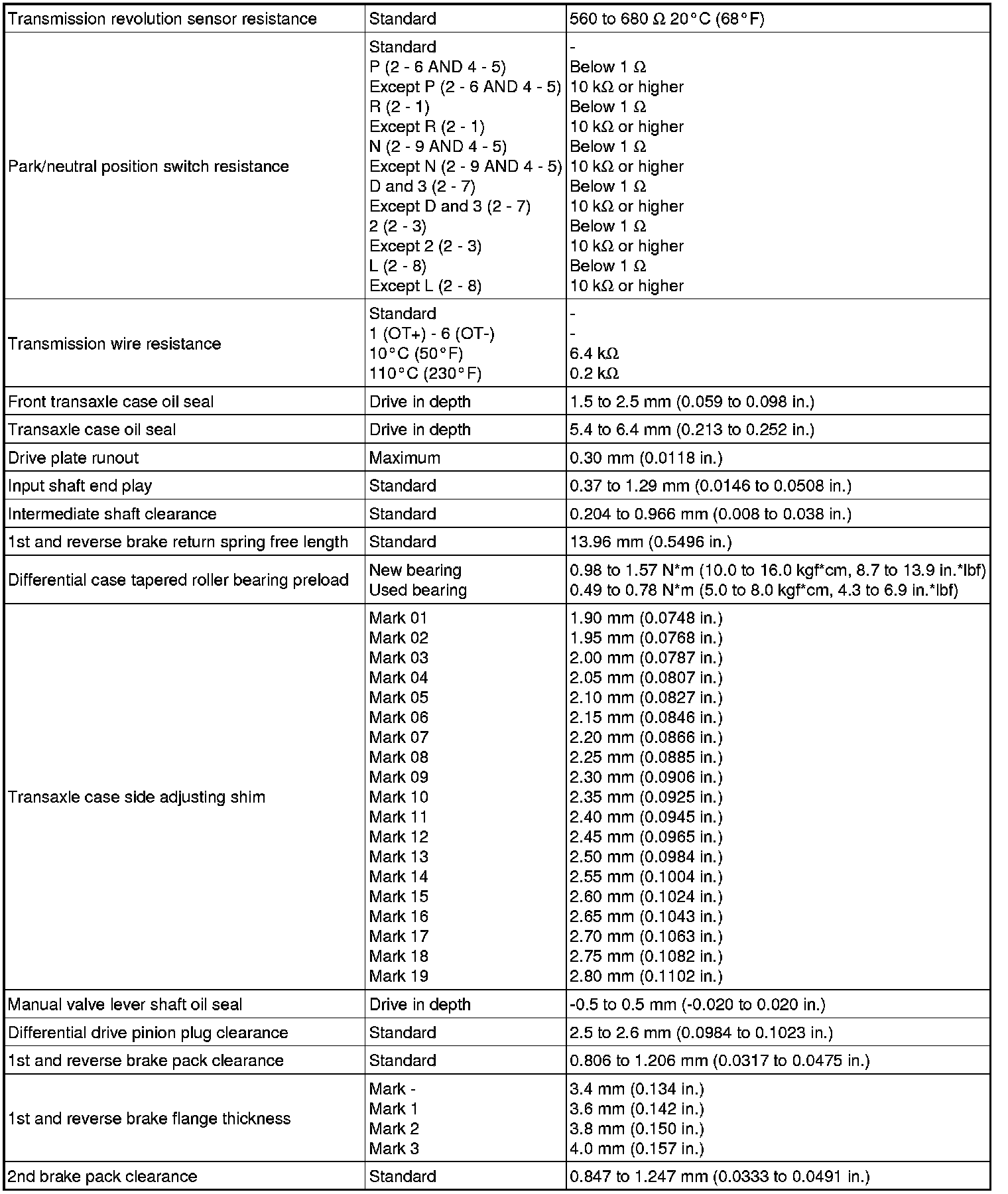

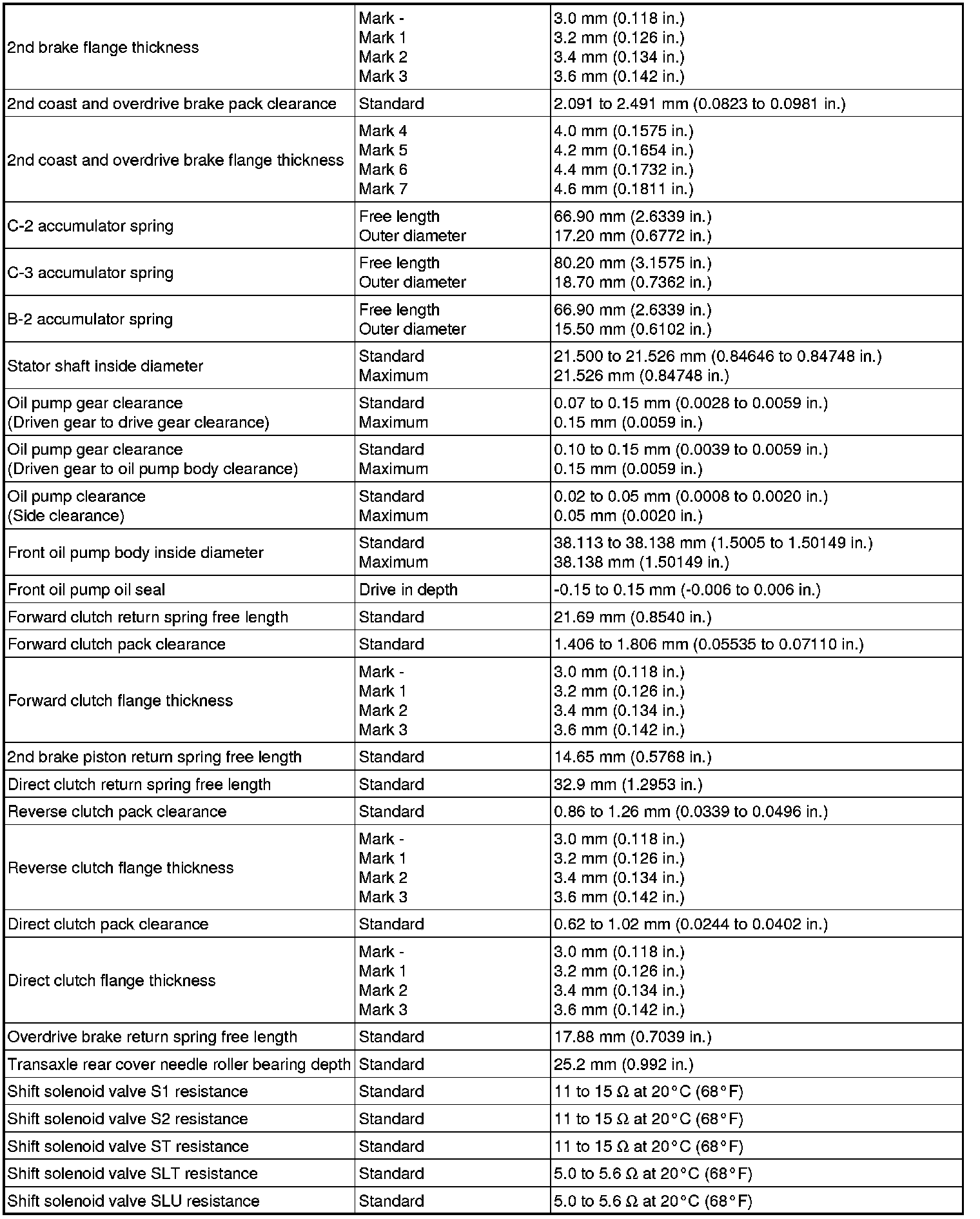

SPECIFICATIONS: U340E AUTOMATIC TRANSMISSION / TRANSAXLE (for Sedan): SERVICE DATA

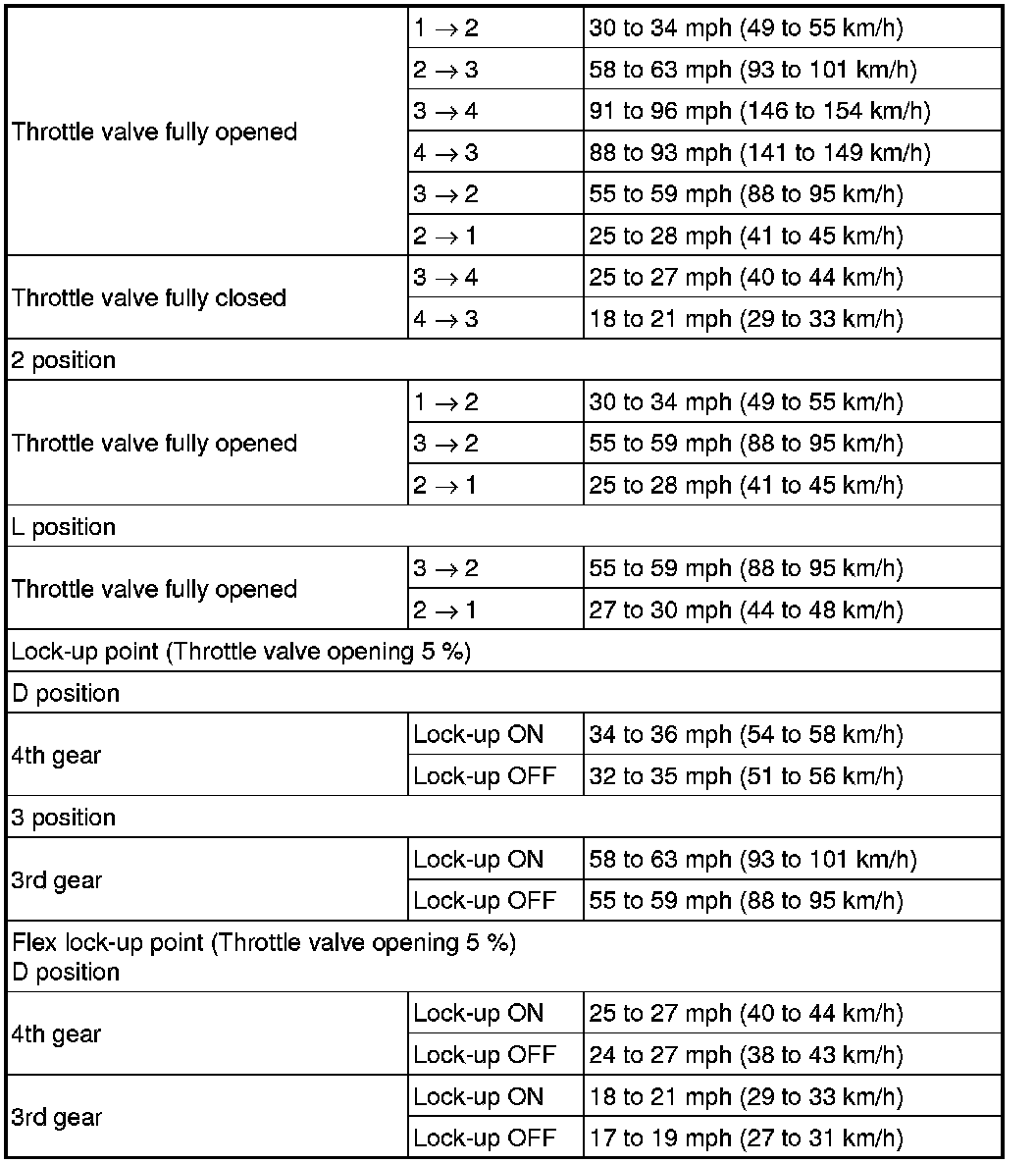

Automatic Transaxle System

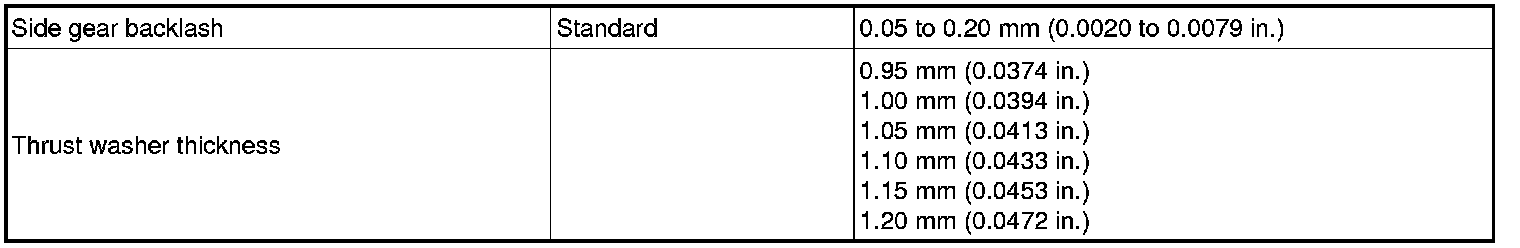

Automatic Transaxle Unit
