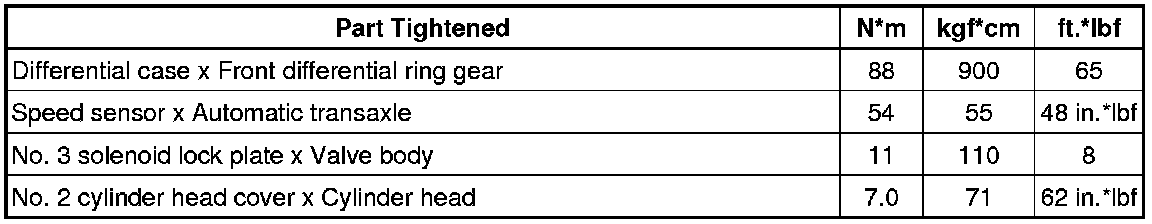

Torque Specifications





SPECIFICATIONS: U340E AUTOMATIC TRANSMISSION / TRANSAXLE (for Sedan): TORQUE SPECIFICATIONS









( ): for use without union nut wrench
