Connecting Rod, Engine
PISTON SUB-ASSEMBLY WITH CONNECTING RODTighten the bolts in several steps to the specified torque.
Torque
15 Nm (153 kgf-cm, 11 ft-lbf)

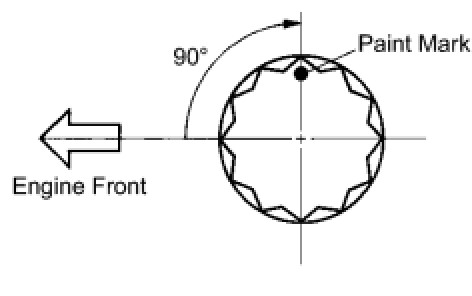

Mark the front of the connecting cap bolts with paint.
Further tighten the cap bolts by 90° as shown.
Connecting Rod Side Clearance, Out-of-Round and Diameter
