Charging System: Service Precautions
1NZ-FE BATTERY / CHARGING: CHARGING SYSTEM (for Sedan): PRECAUTION 1.
Check that the battery cables are connected to the correct terminals.
2.
Disconnect the battery cables when the battery is given a quick charge.
3.
Never disconnect the battery while the engine is running.
4.

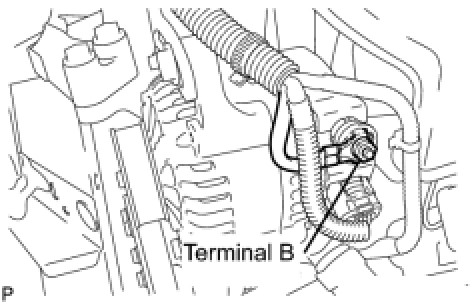

Check that the charging cable is tightly connected to terminal B of the generator.
