Alignment

Wheel Alignment Specifications (Unloaded Vehicle)

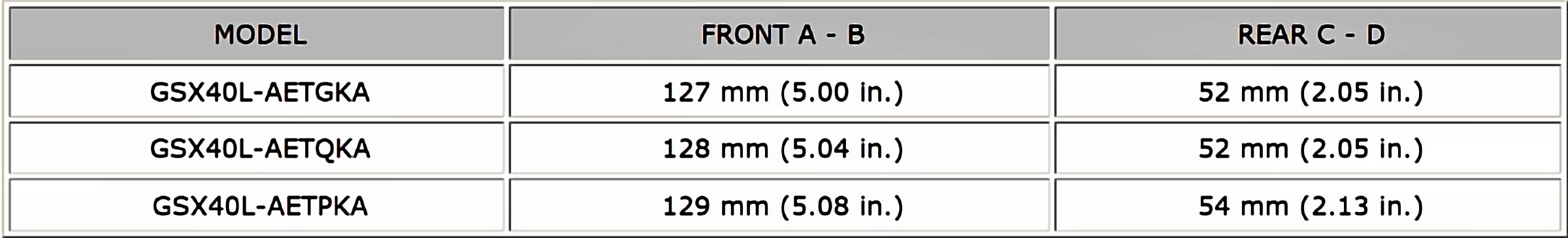

Vehicle Height:

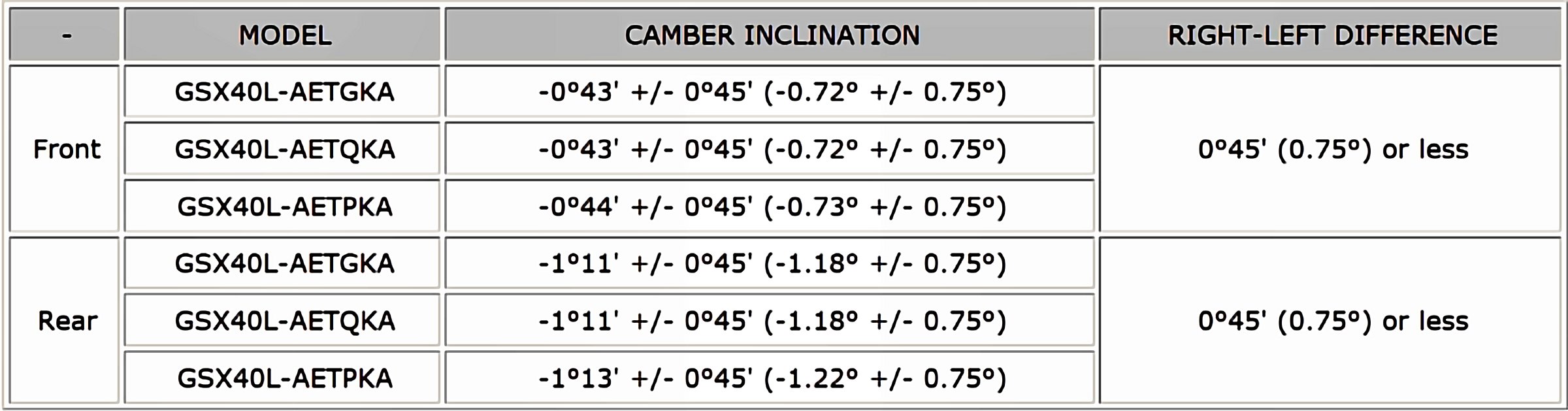

Camber:

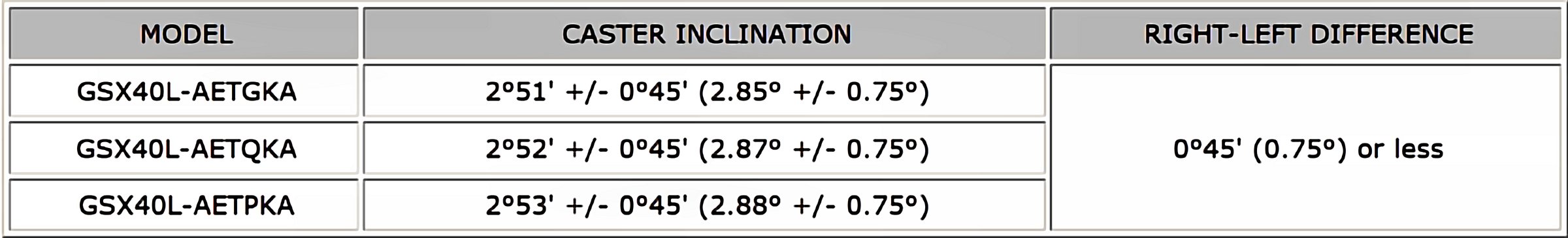

Caster:

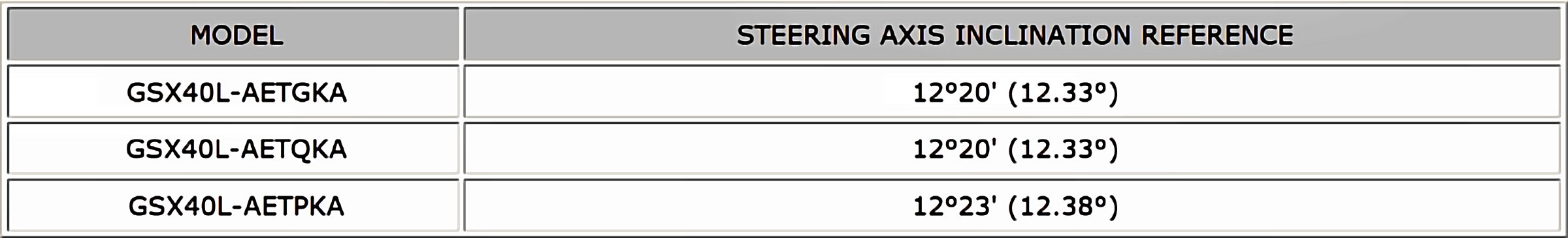

Steering Axis Inclination:

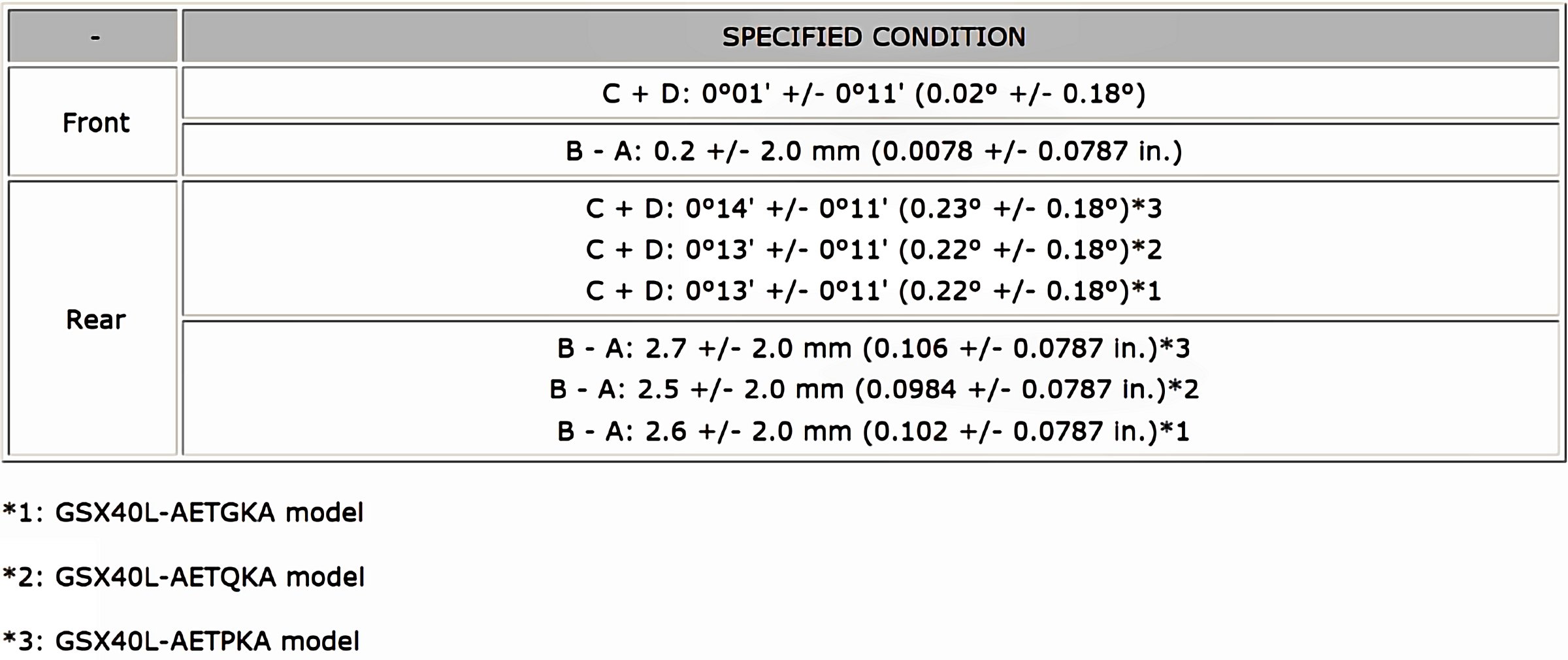

Toe-in:

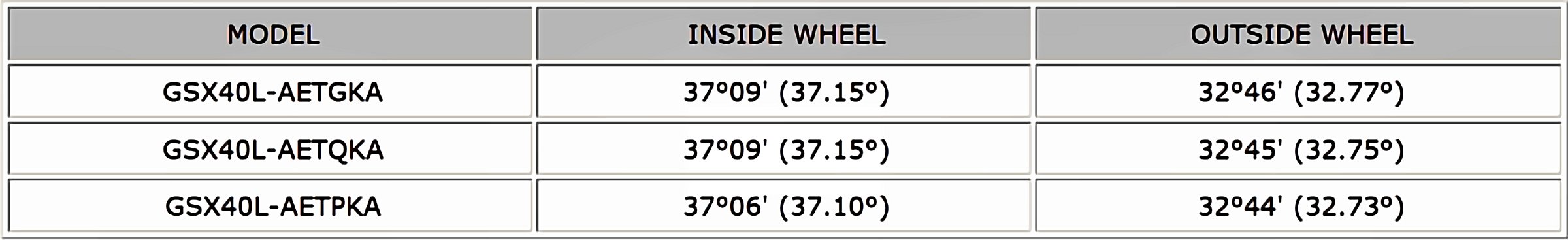

Wheel Turning Angle:

Measurement Points:
A: Ground clearance of front wheel center
B: Ground clearance of lower No. 2 suspension arm bushing set bolt center
C: Ground clearance of rear wheel center
D: Ground clearance of outer strut rod set bolt center
