Locations
>>
Connector Locations
Connector Locations

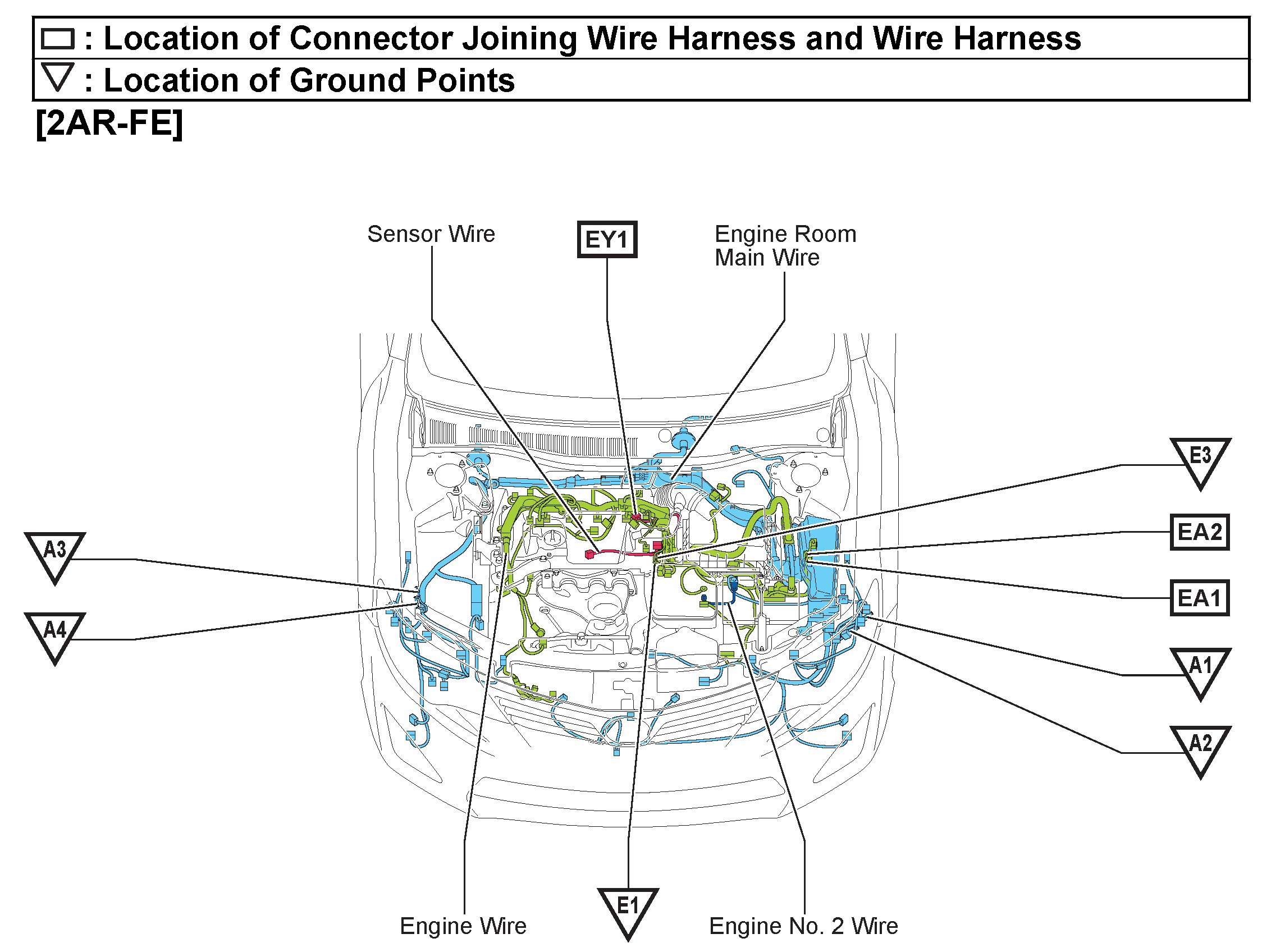

A1-E3 / EA1-EY1:

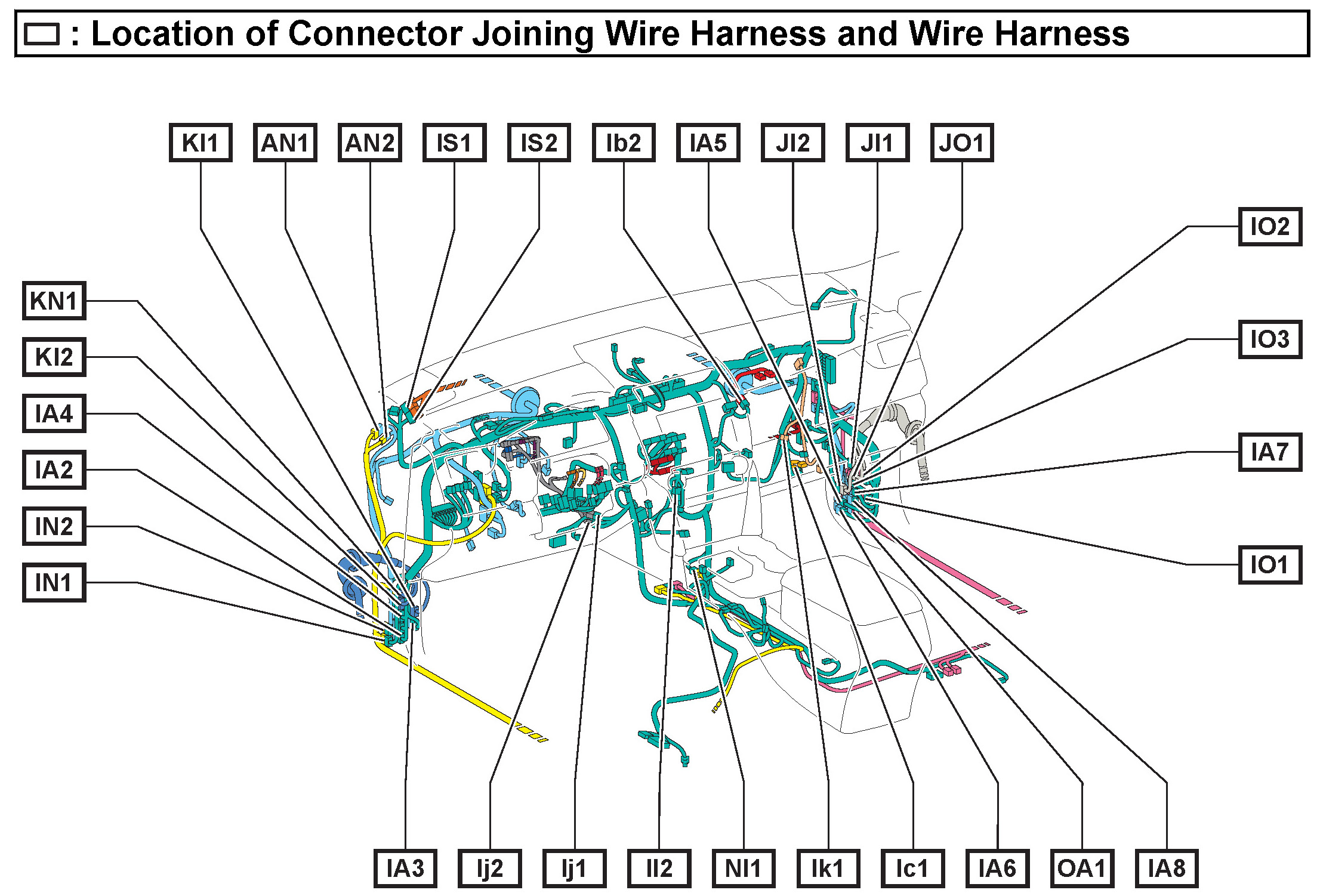

AN1-OA1:
hO1-WK1:

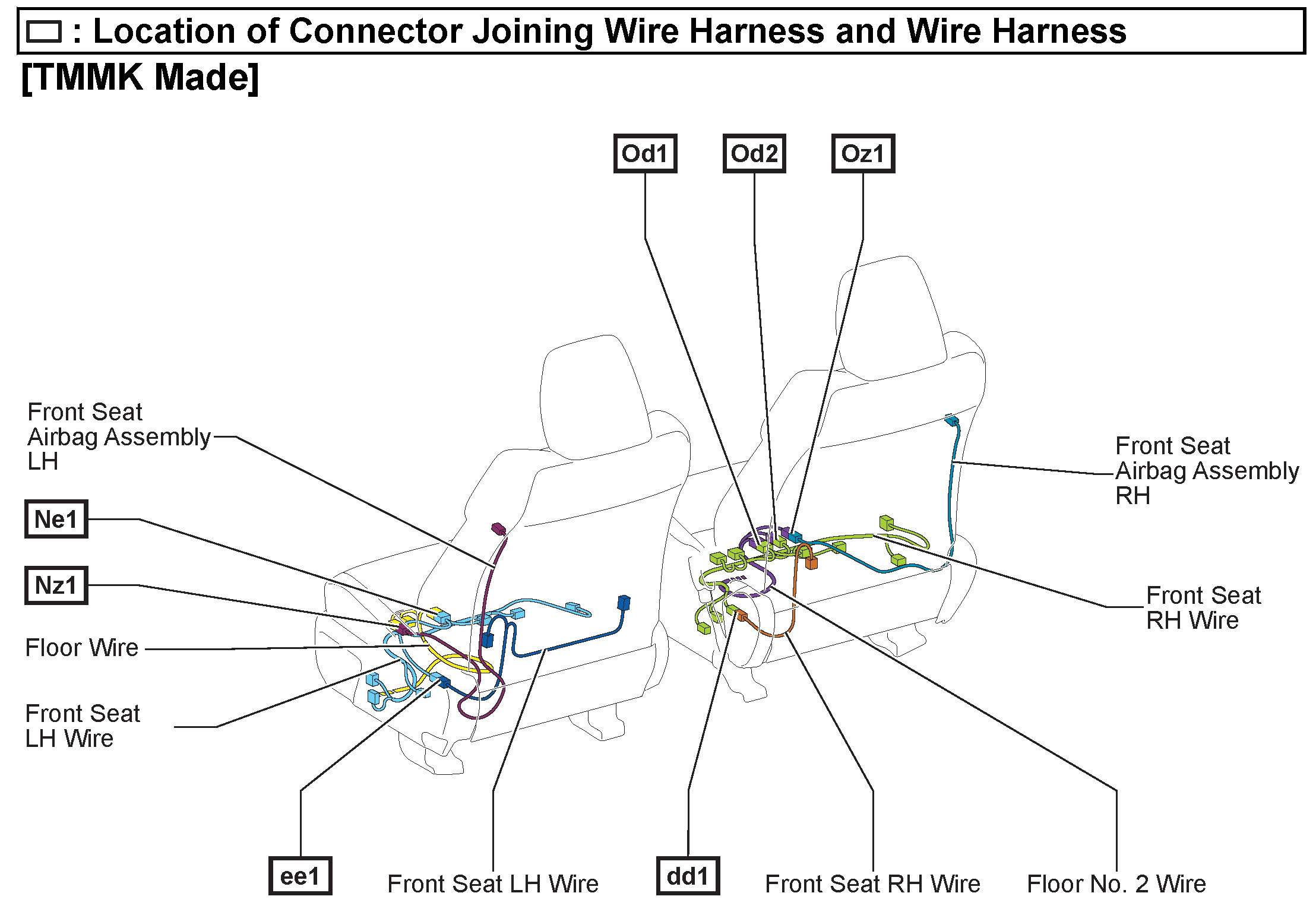

TMMK Made
dd1-Oz1:
SIA Made
fD1-Oz1:
