Ignition System: Locations

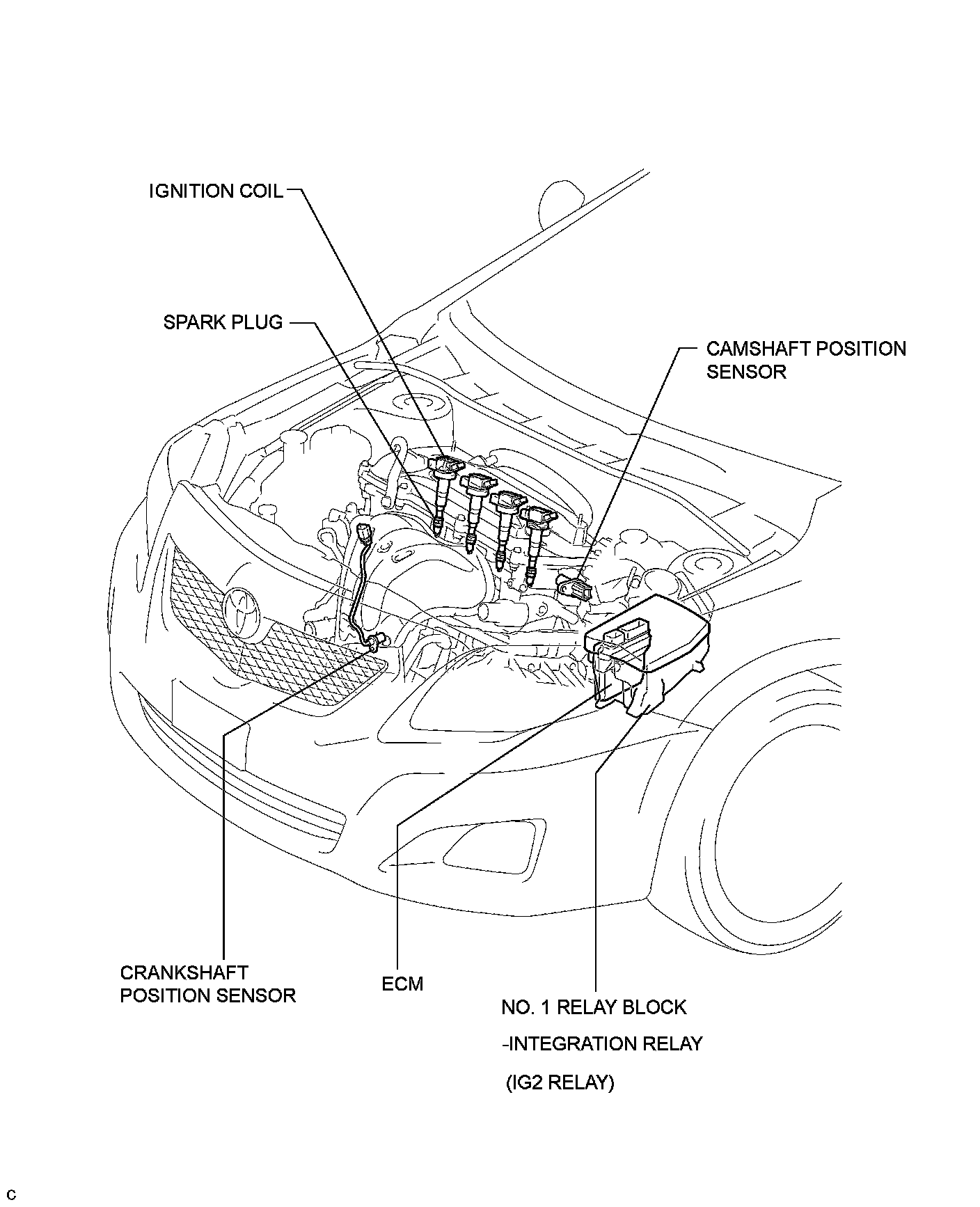

2AZ-FE ENGINE CONTROL: IGNITION SYSTEM: PARTS LOCATION; 2013 MY Corolla [07/2012 -]
