Tightening Torque

Drive Plate

Install the drive plate and rear drive plate spacer onto the crankshaft.

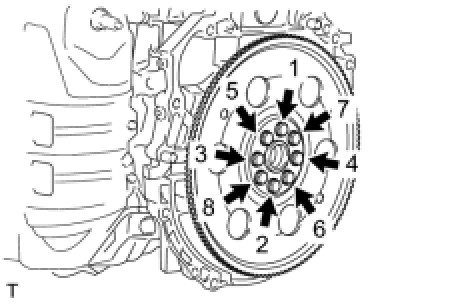

In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.





Torque 98 Nm (999 kgf-cm, 72 ft-lbf)
