Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2013
>>
FJ Cruiser 4WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
Fuse Block

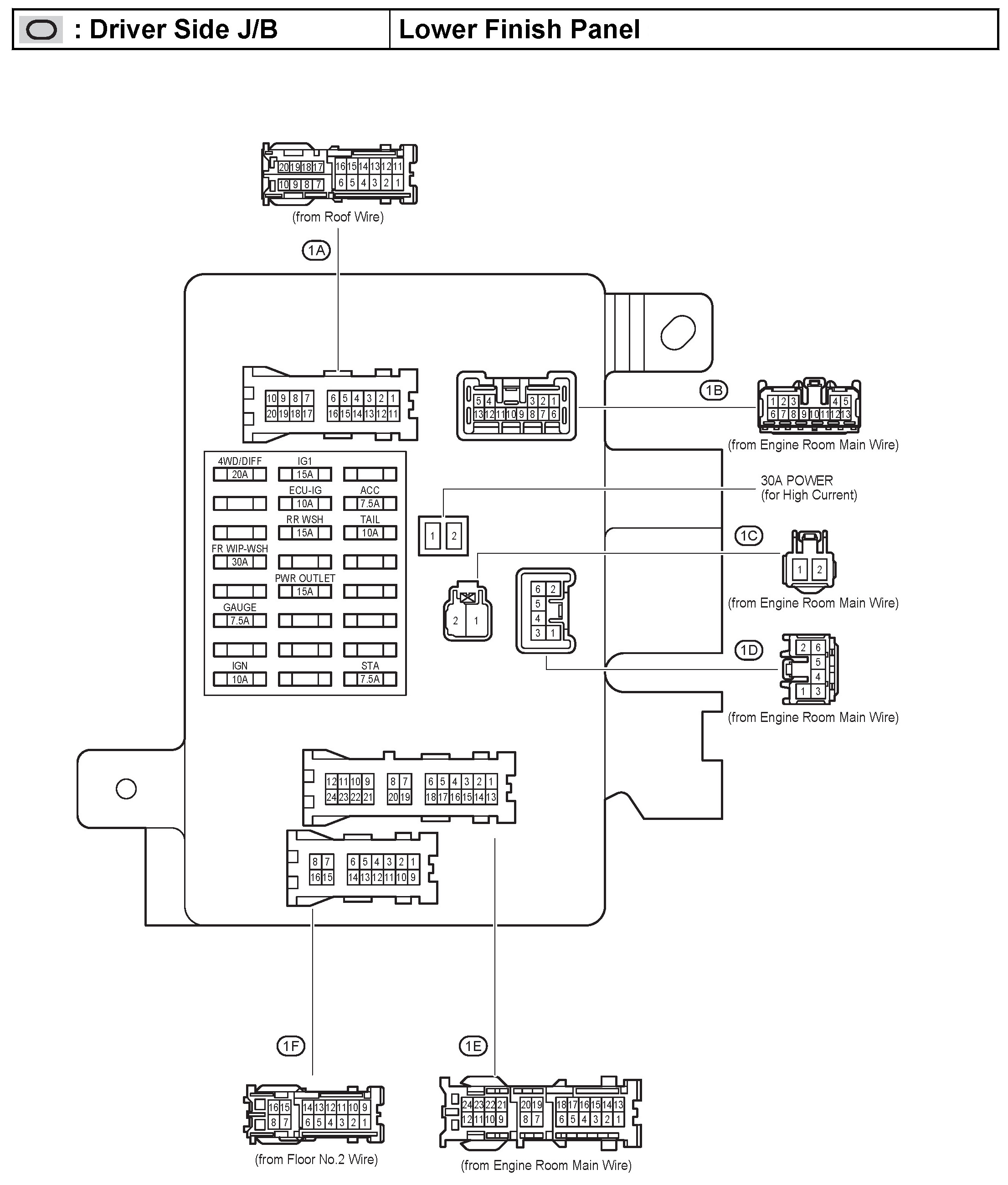

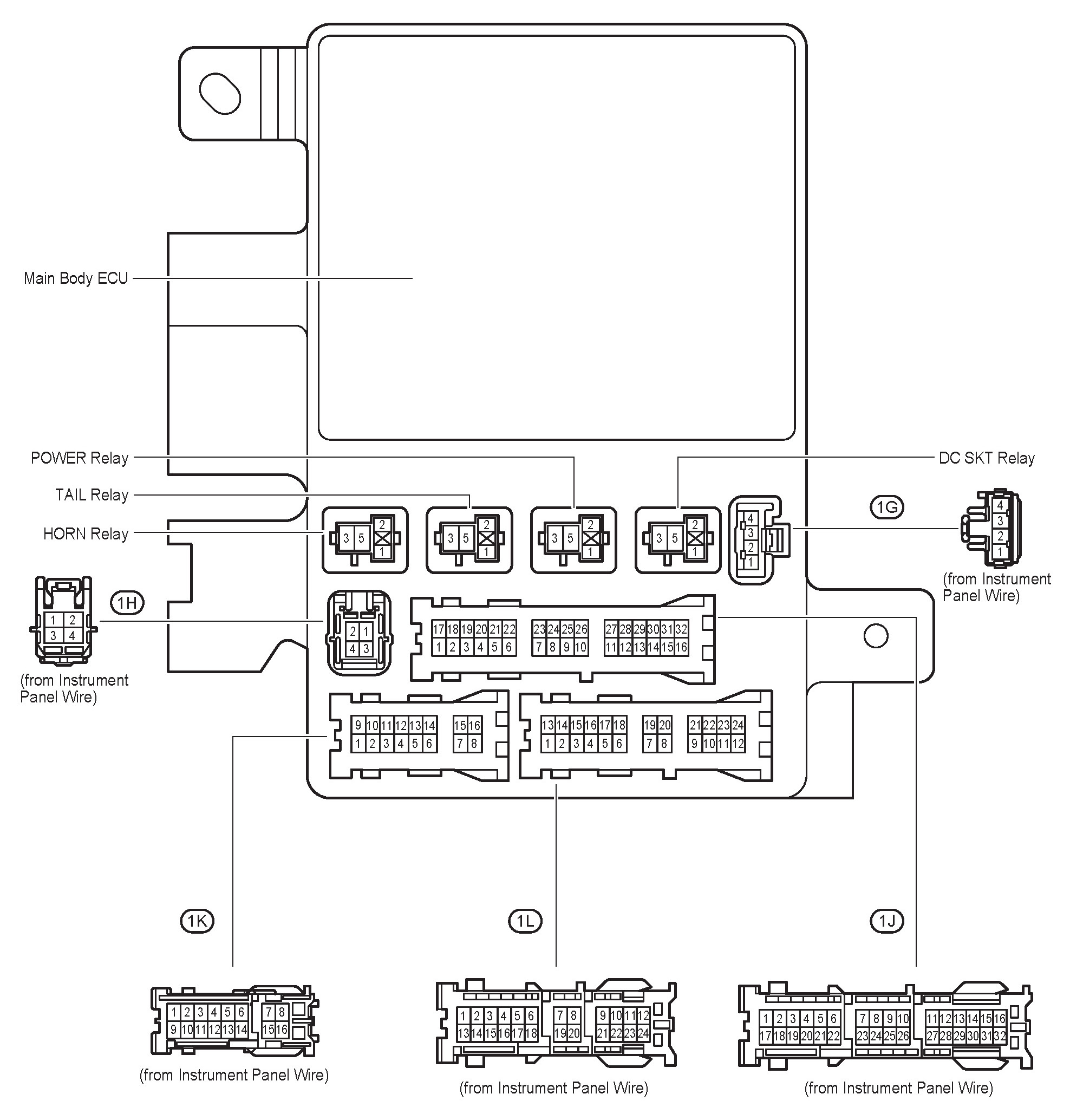

Driver Side J/B - Lower Finish Panel:
Driver Side J/B - Lower Finish Panel:
