Keyless Starting System

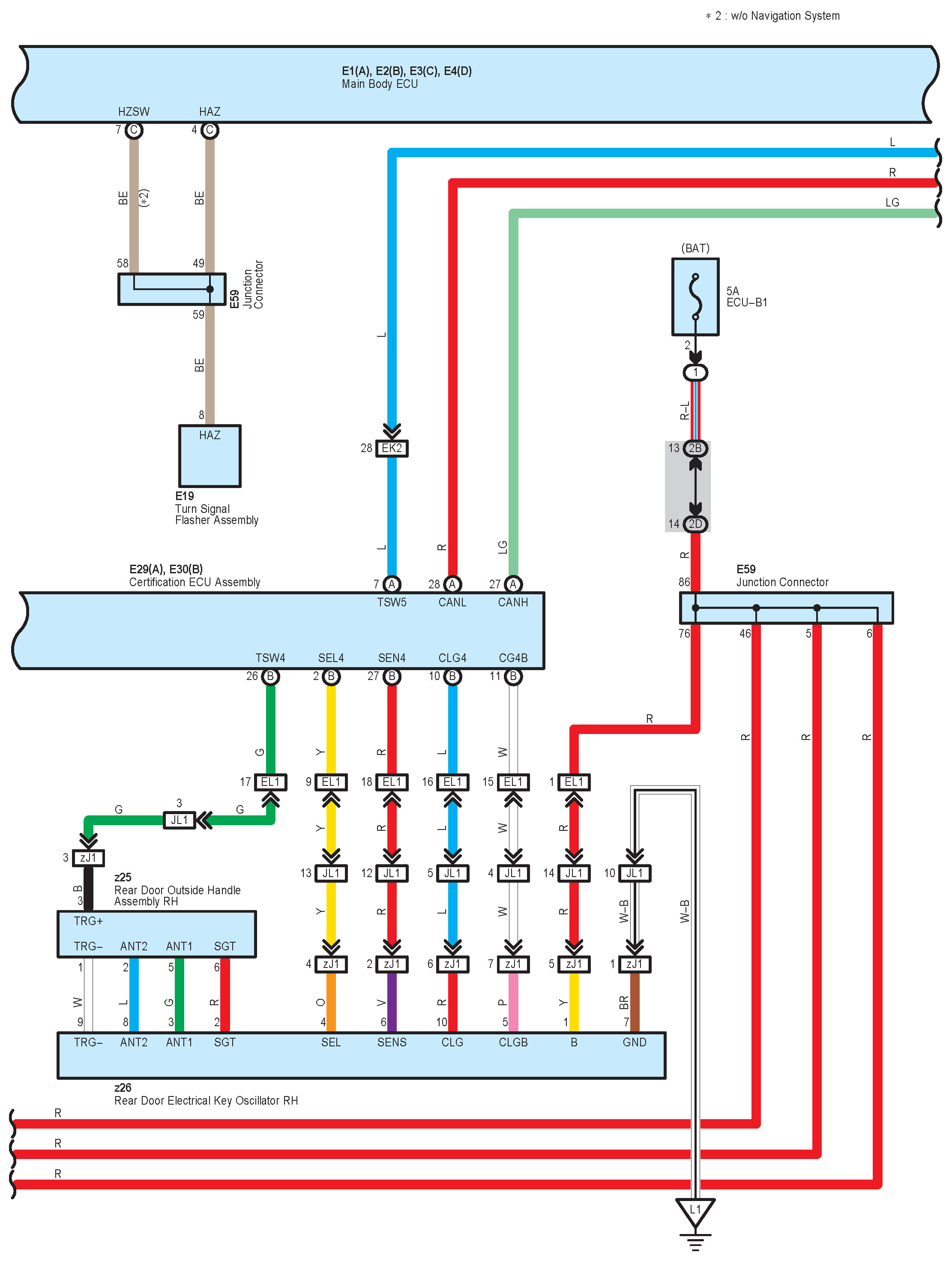

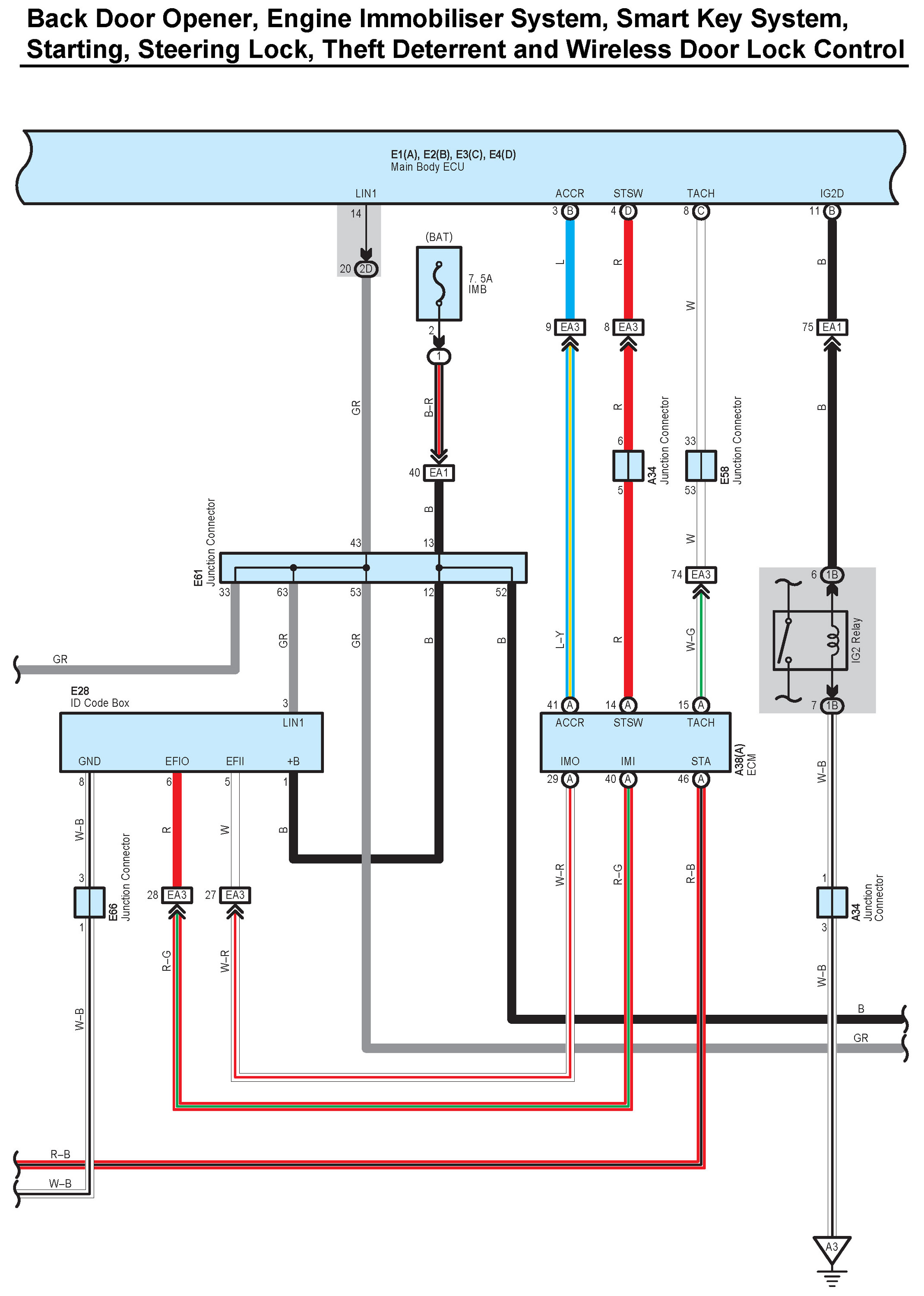

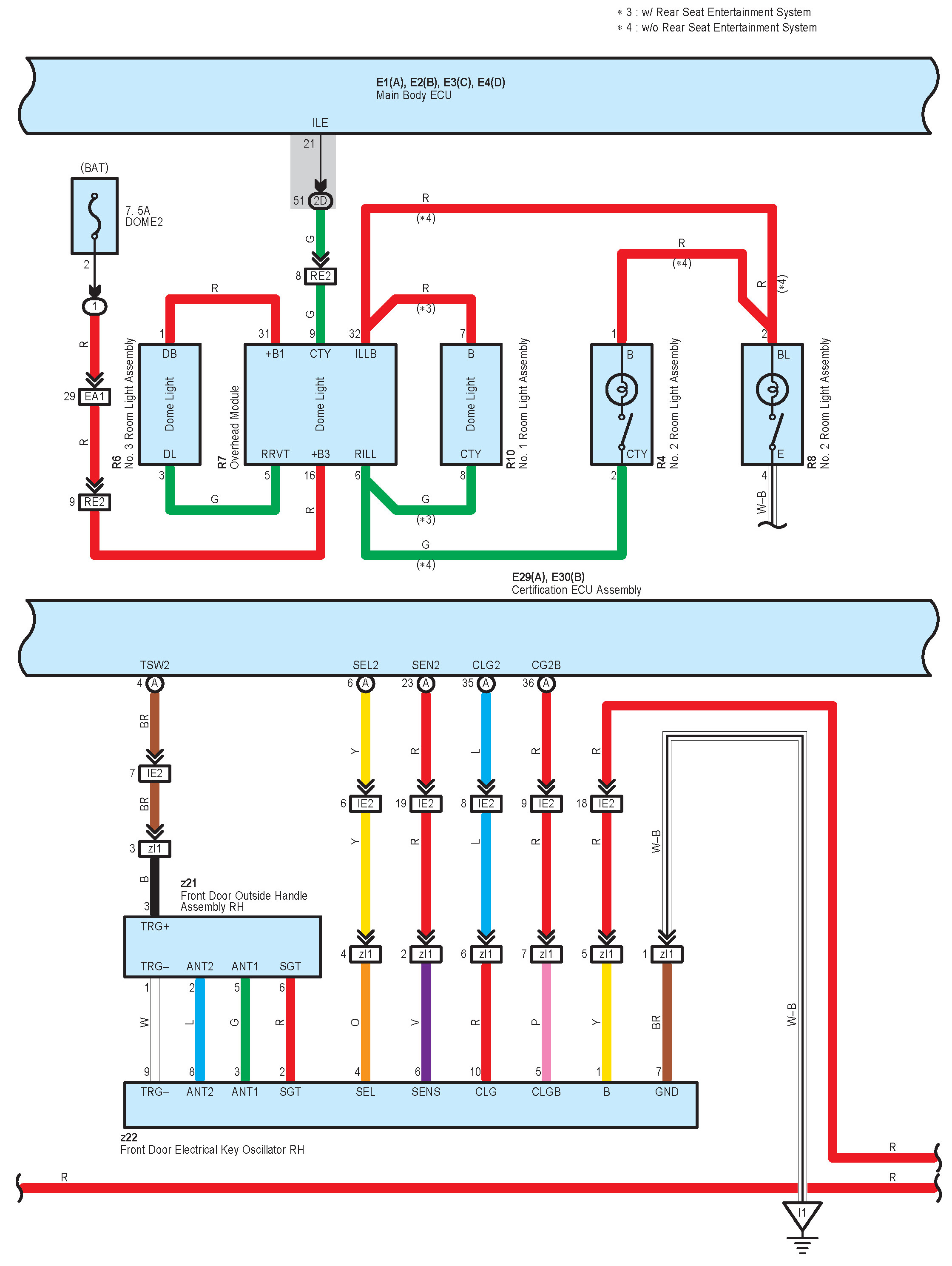

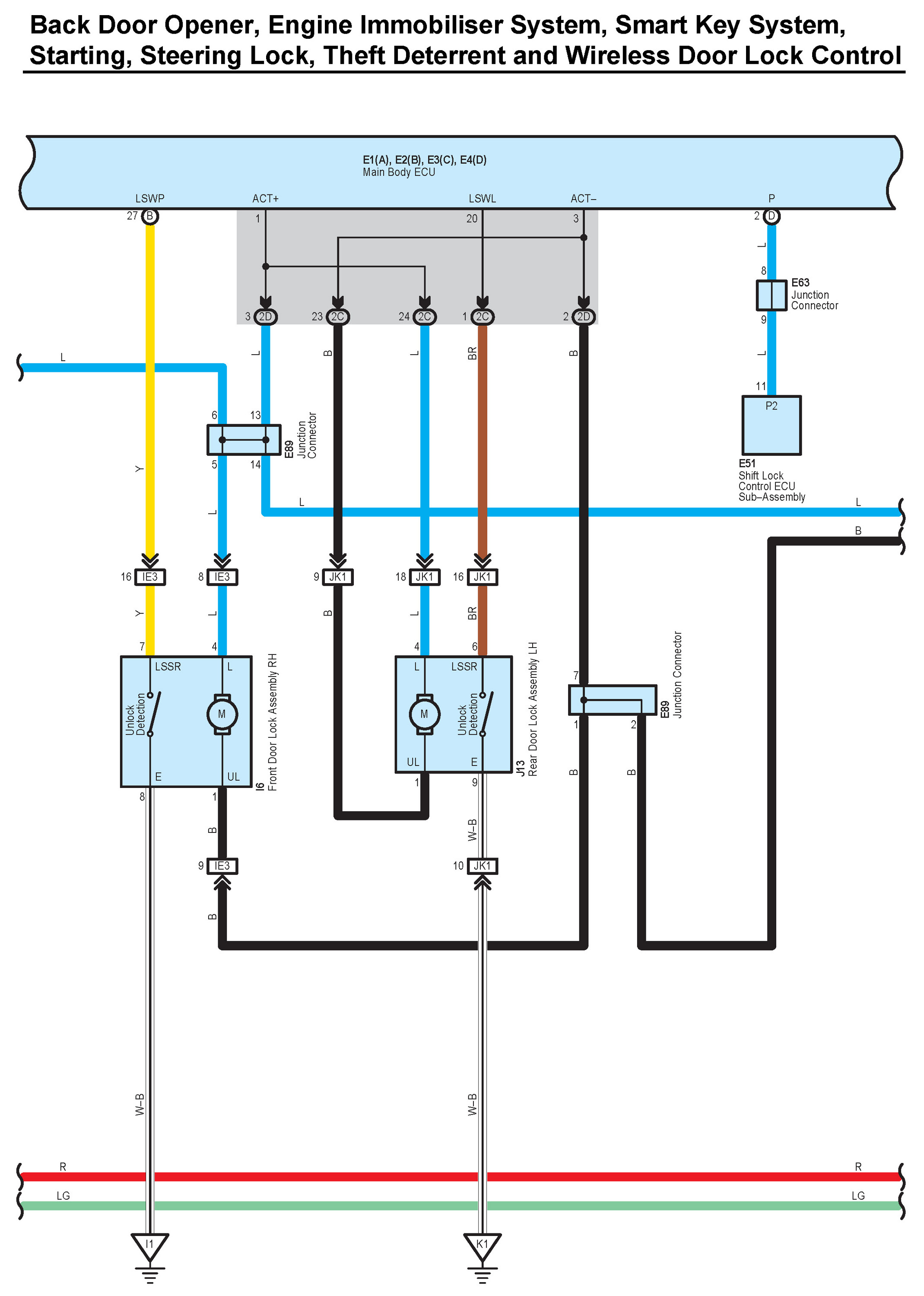

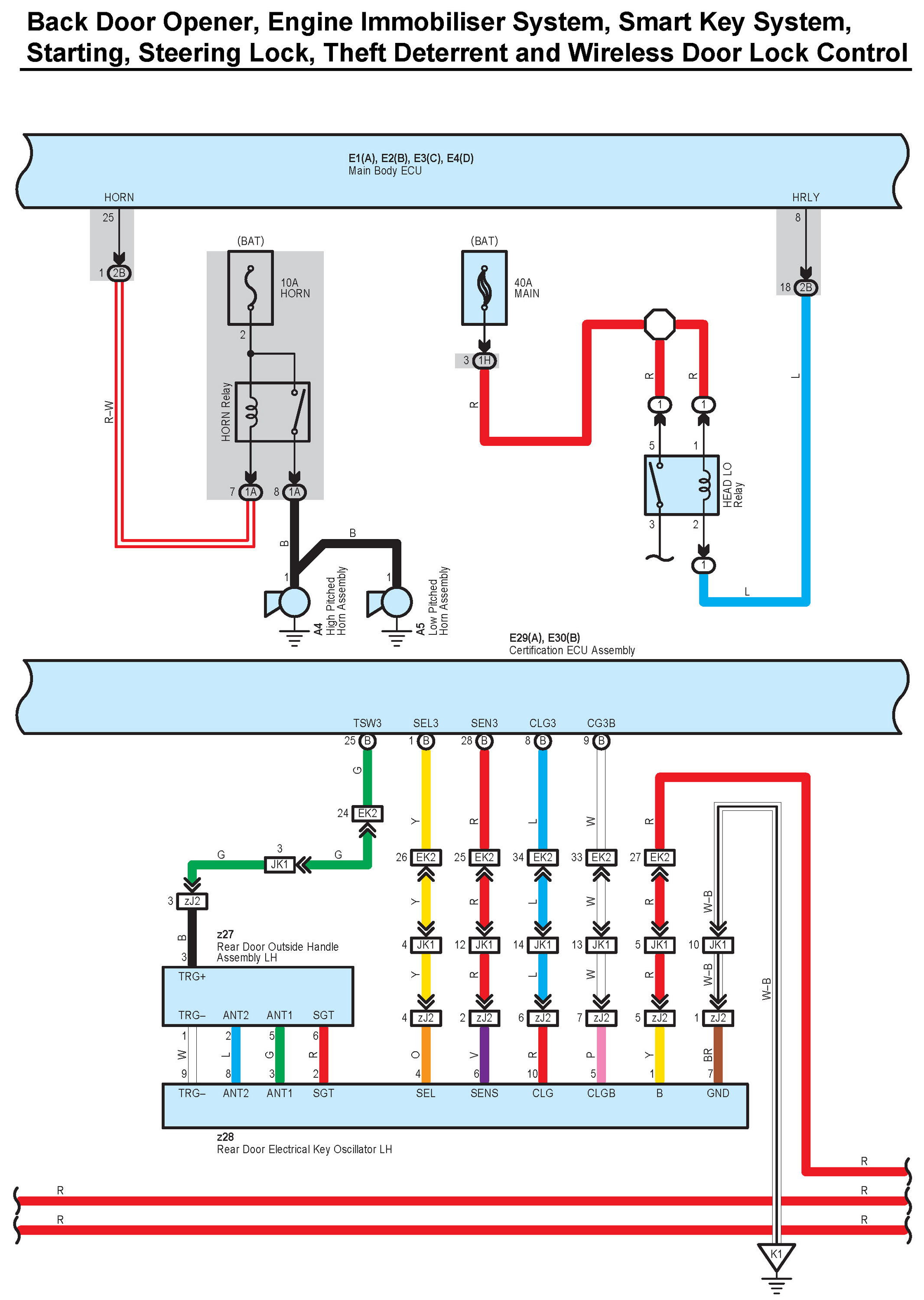

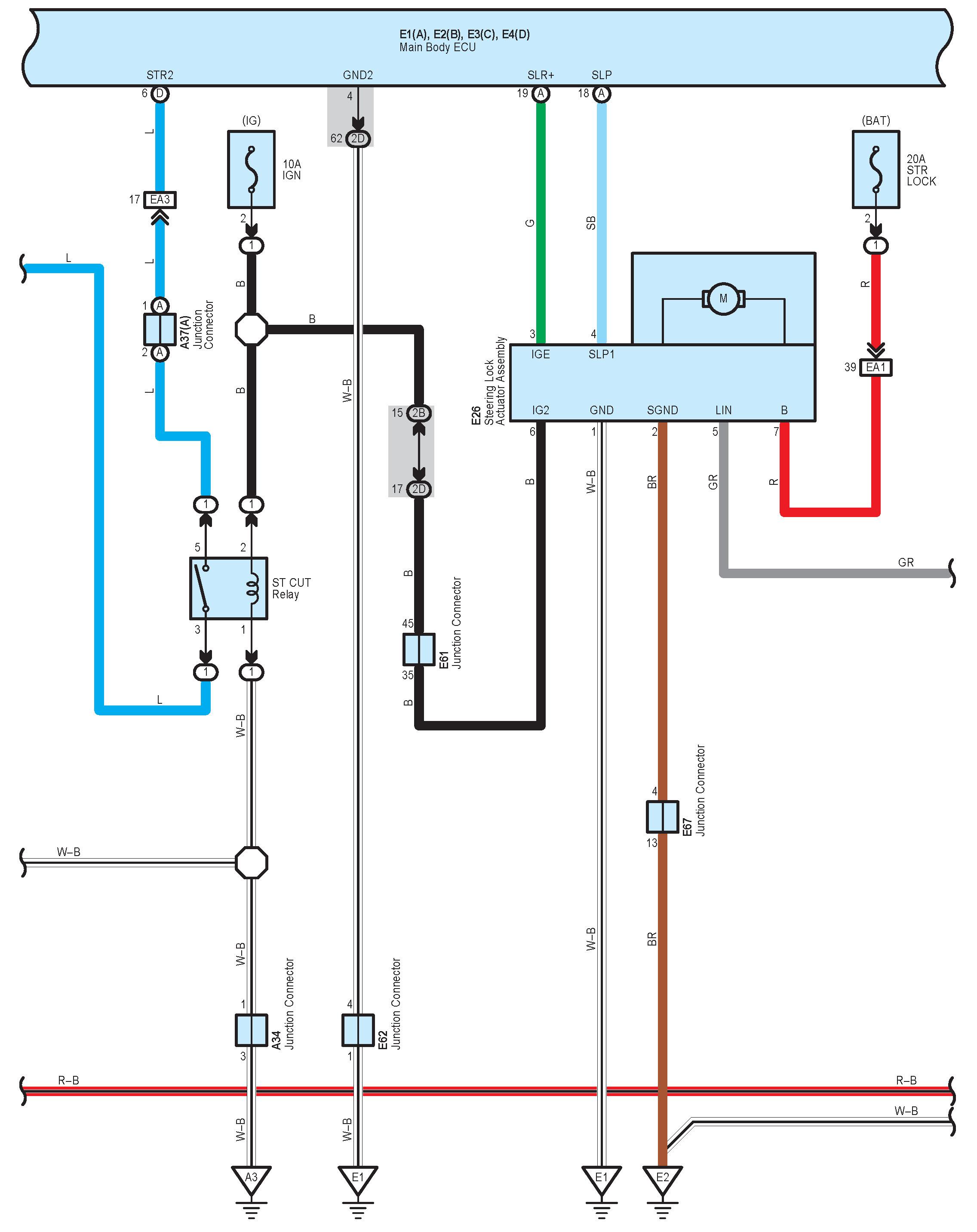

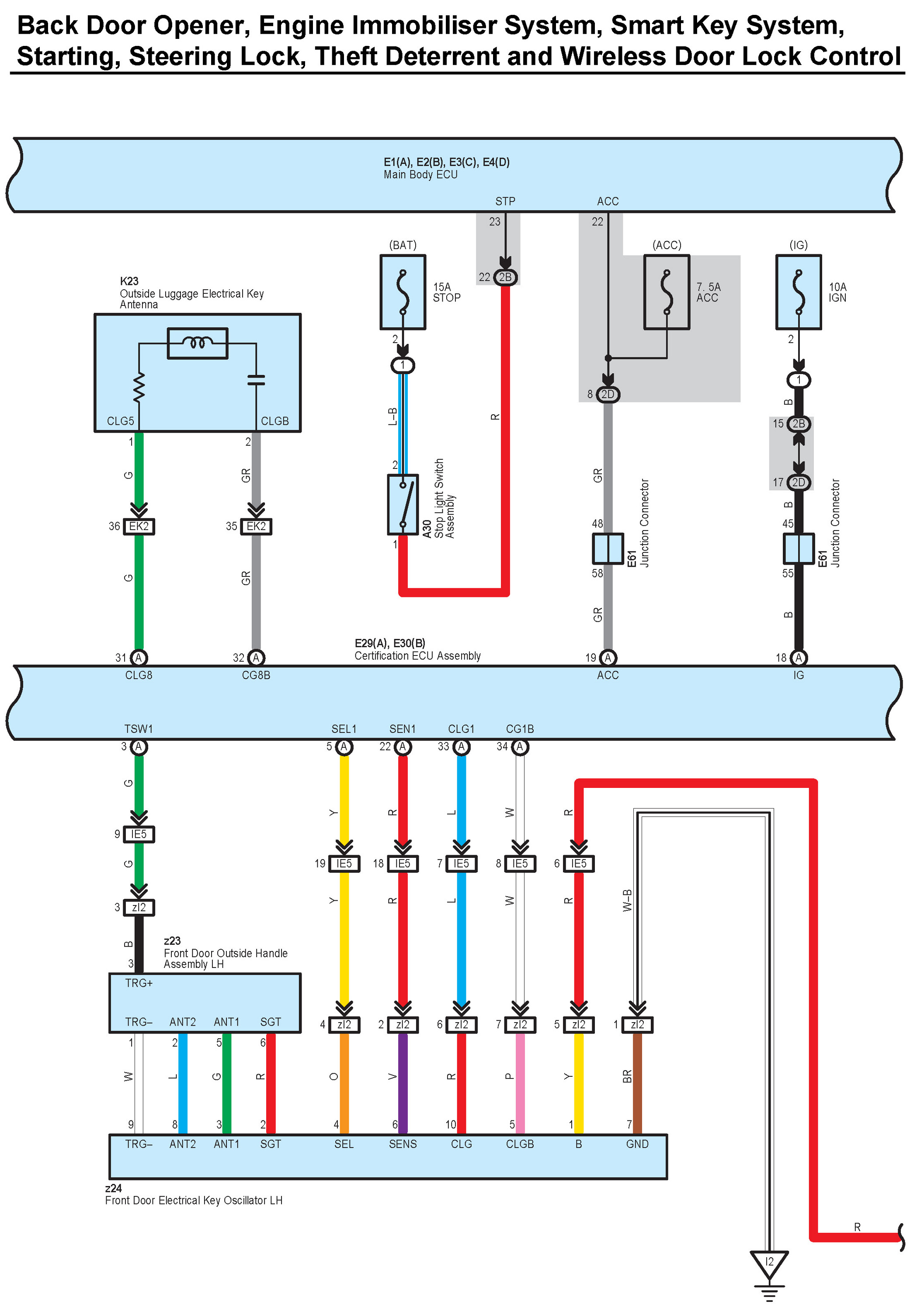

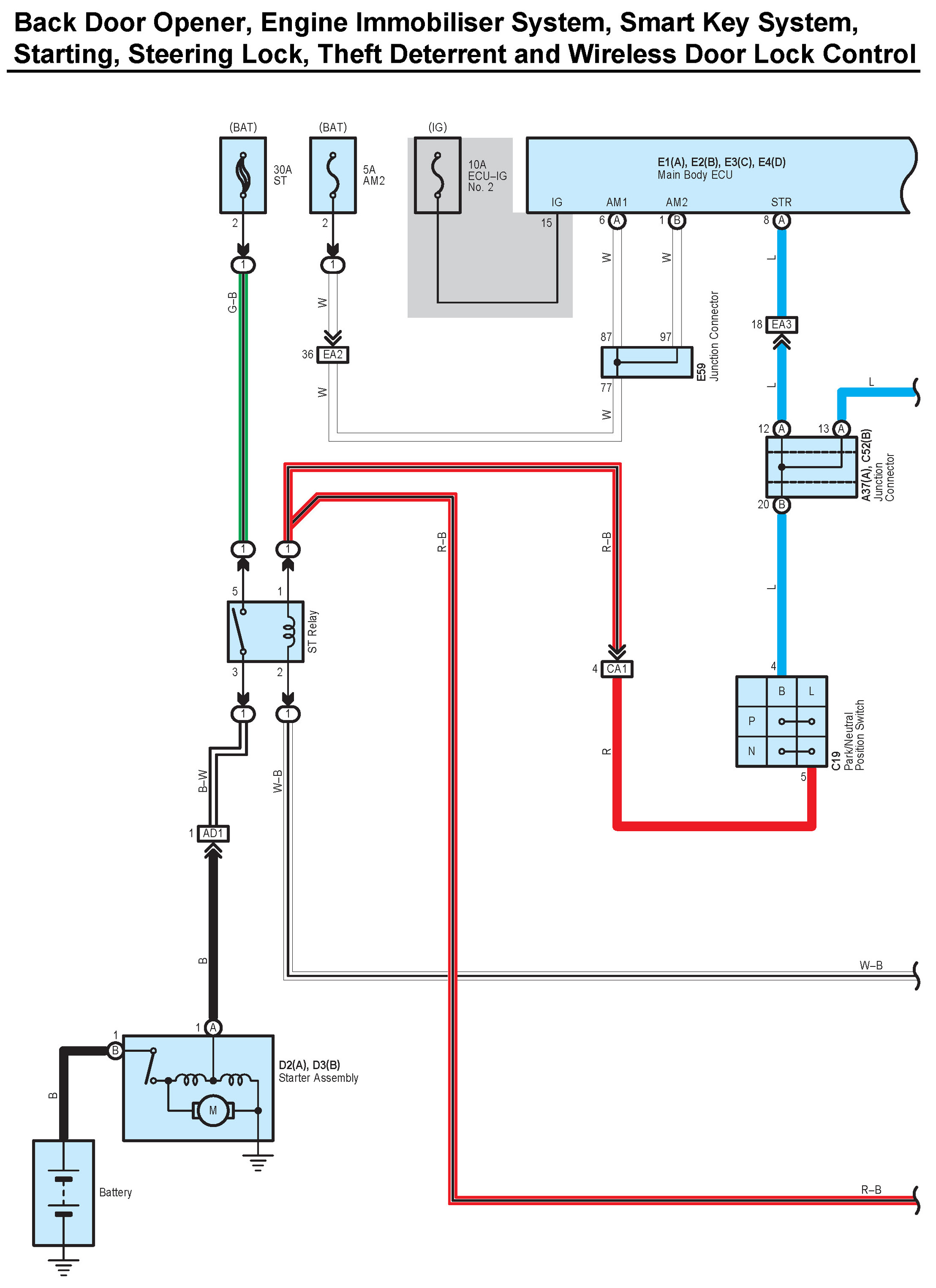

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 1:

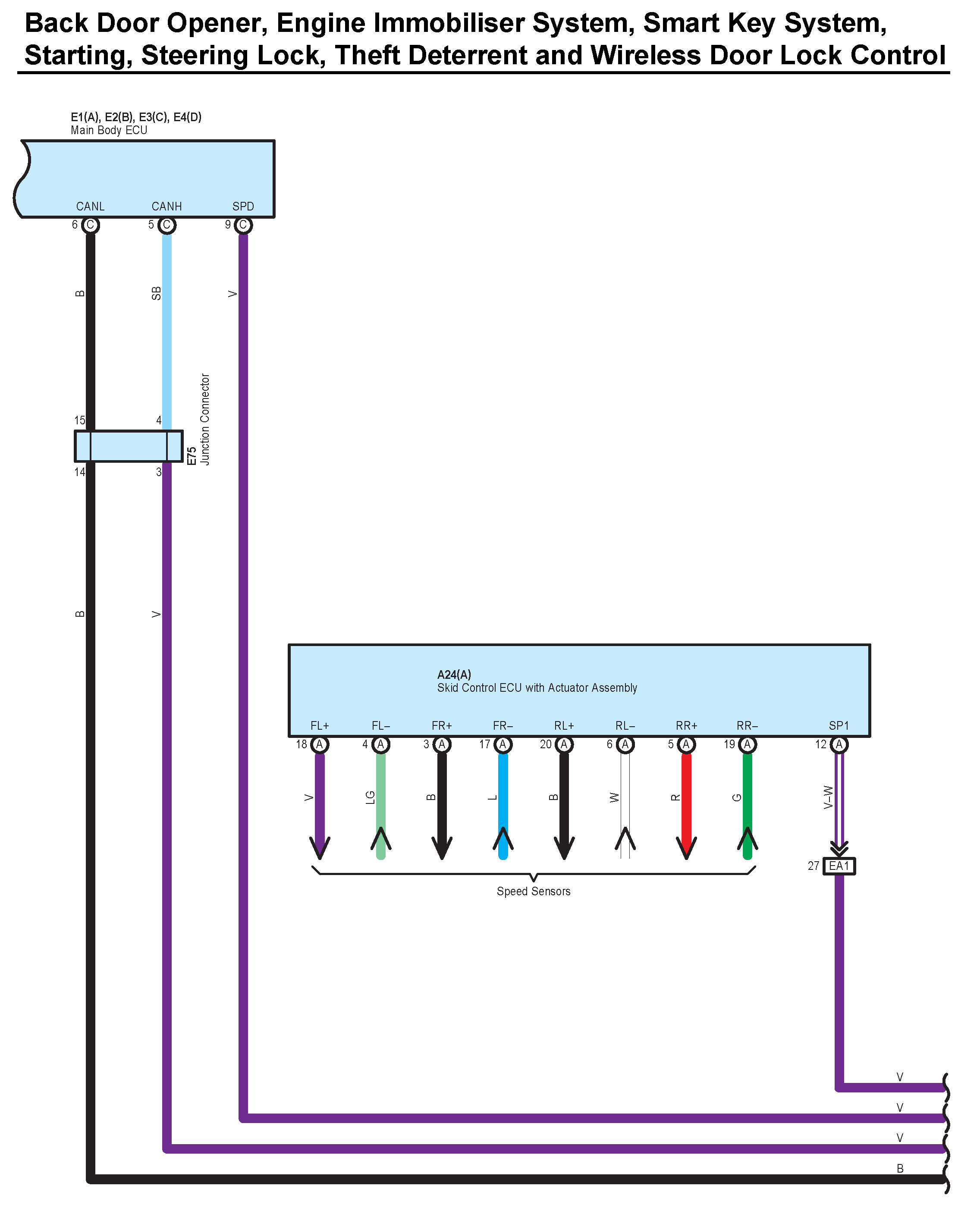

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 2:

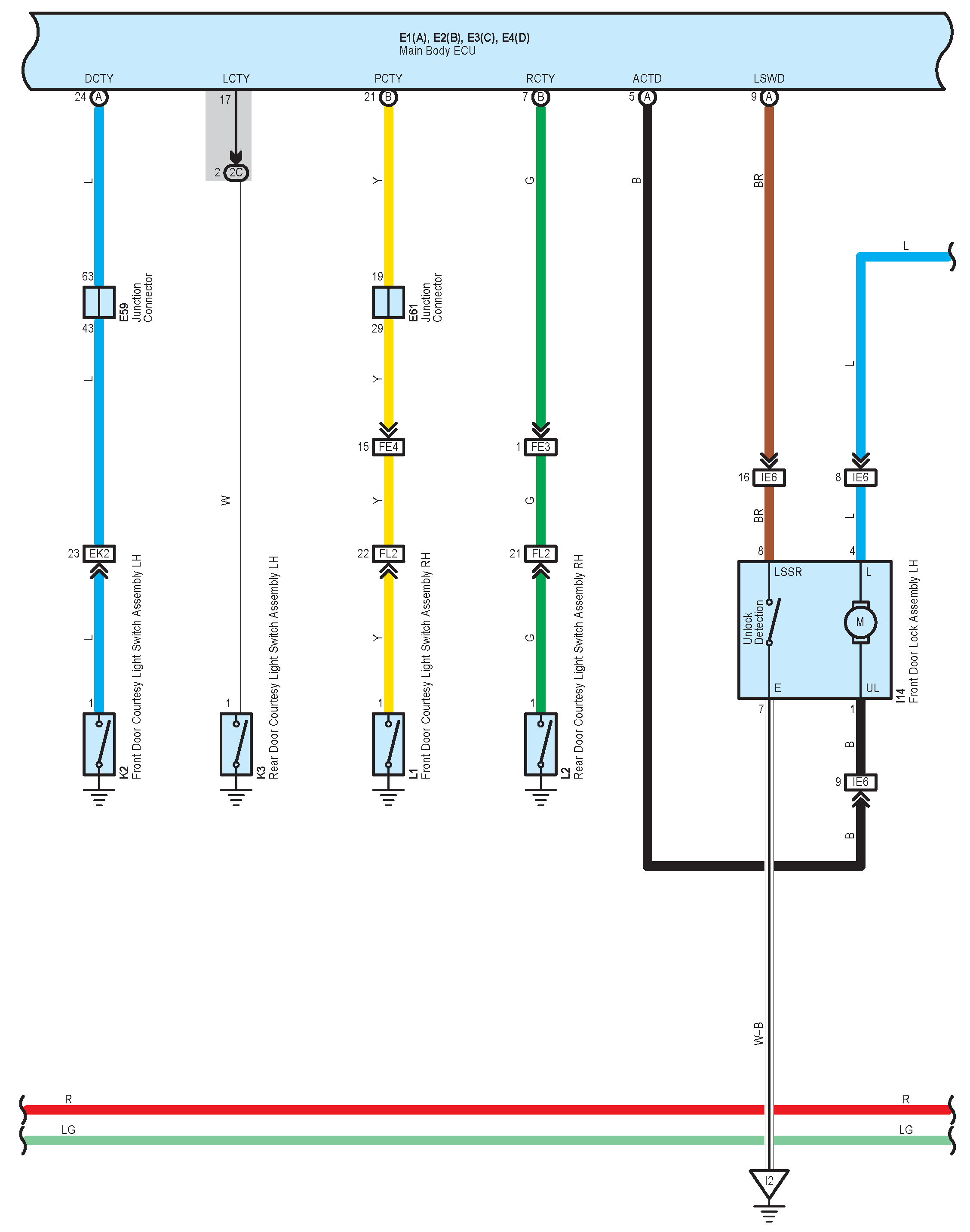

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 3:

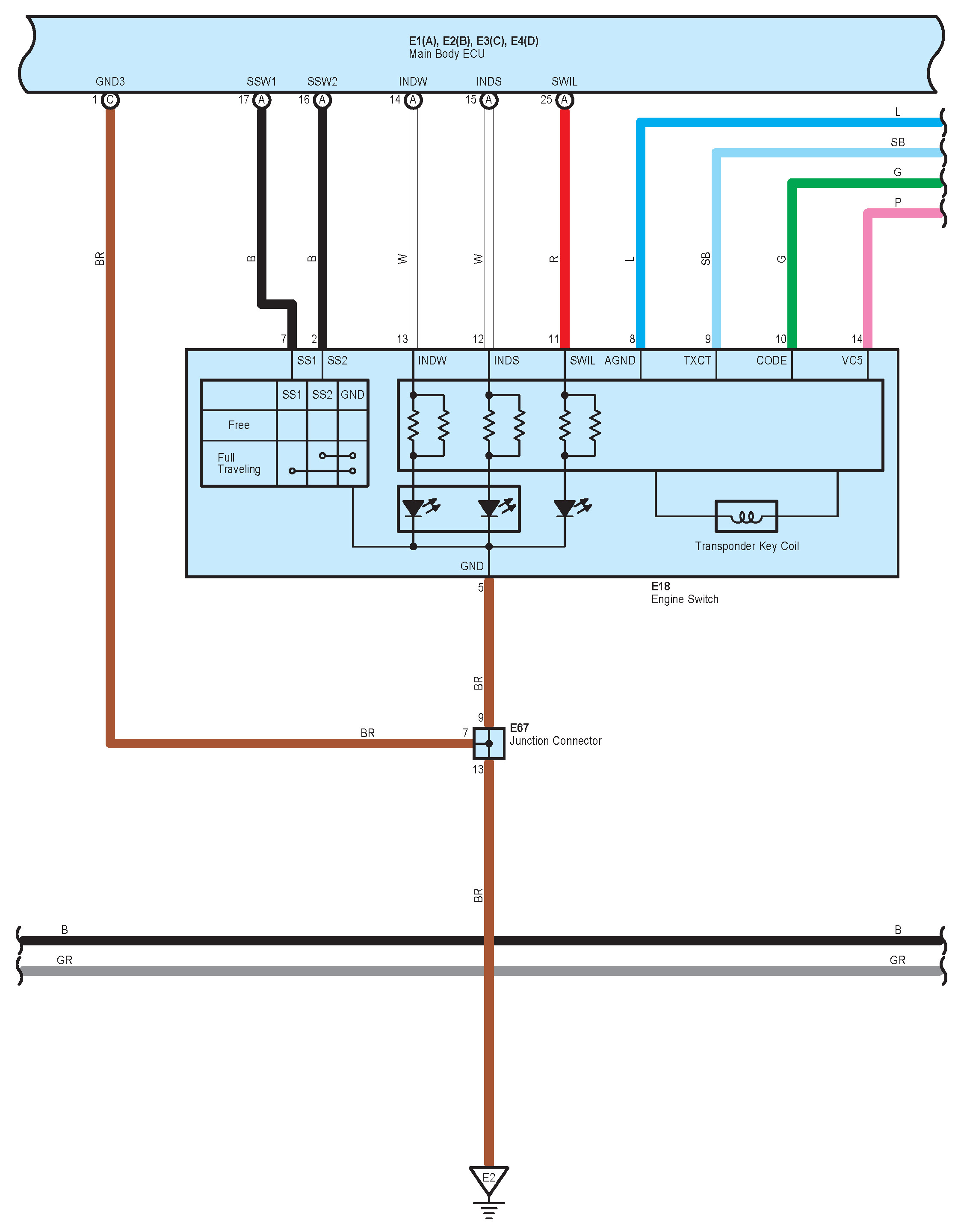

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 4:

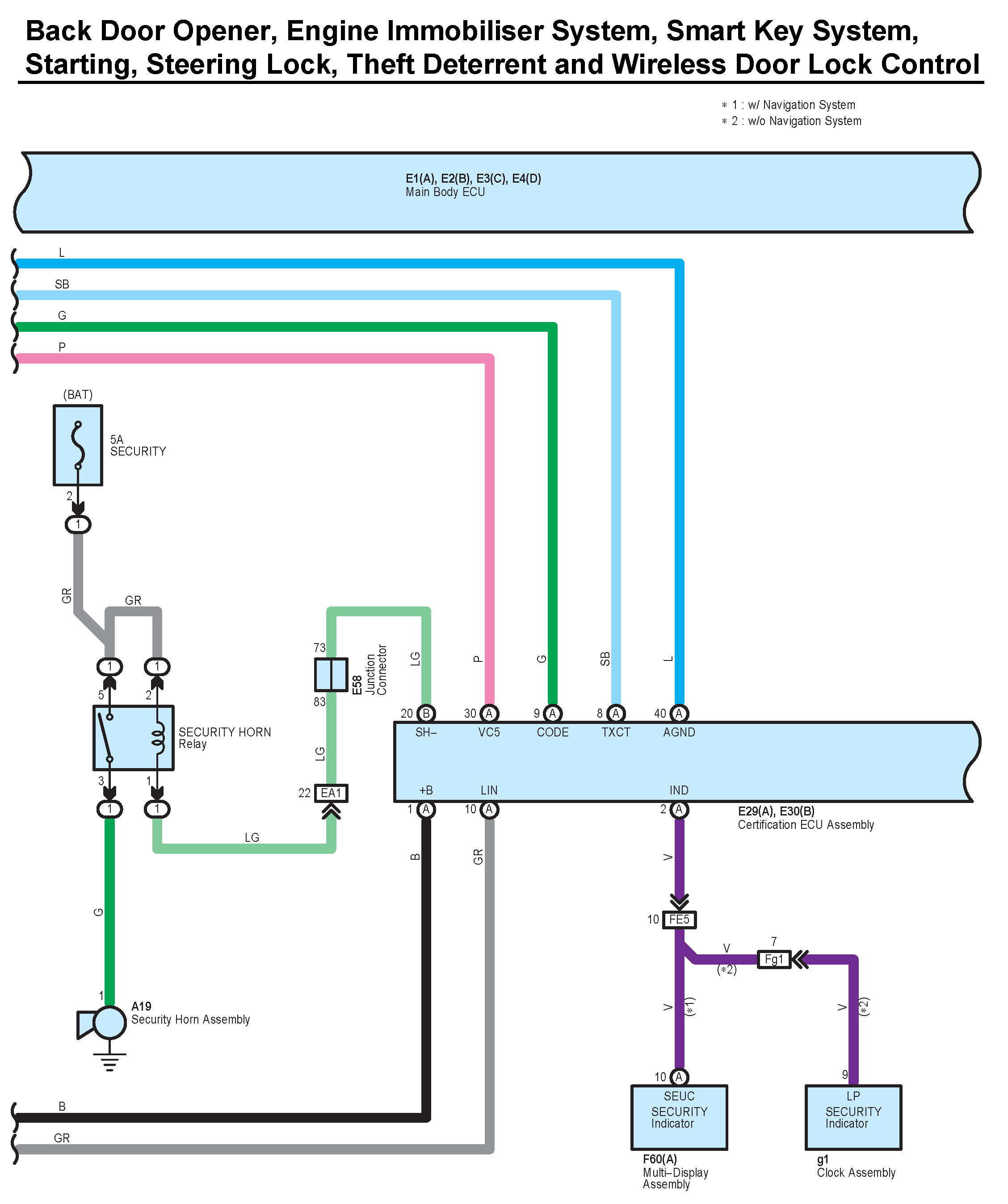

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 5:

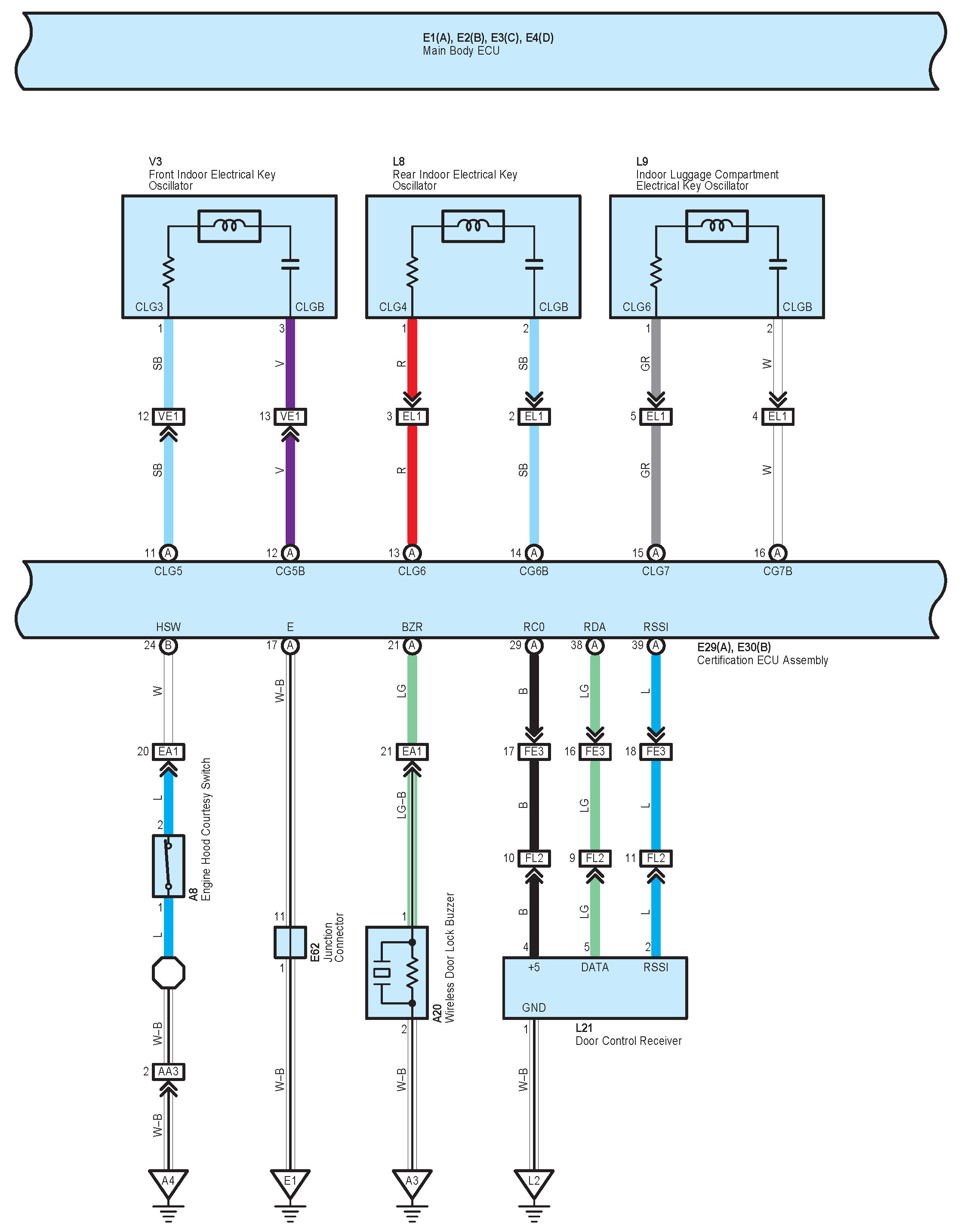

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 6:

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 7:

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 8:

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 9:

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 10:

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 11:

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 12:

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 13:

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 14:

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 15:

Back Door Opener, Engine Immobiliser System, Smart Key System, Staring, Steering Lock, Theft Deterrent and Wireless Door Lock Control Part 16:

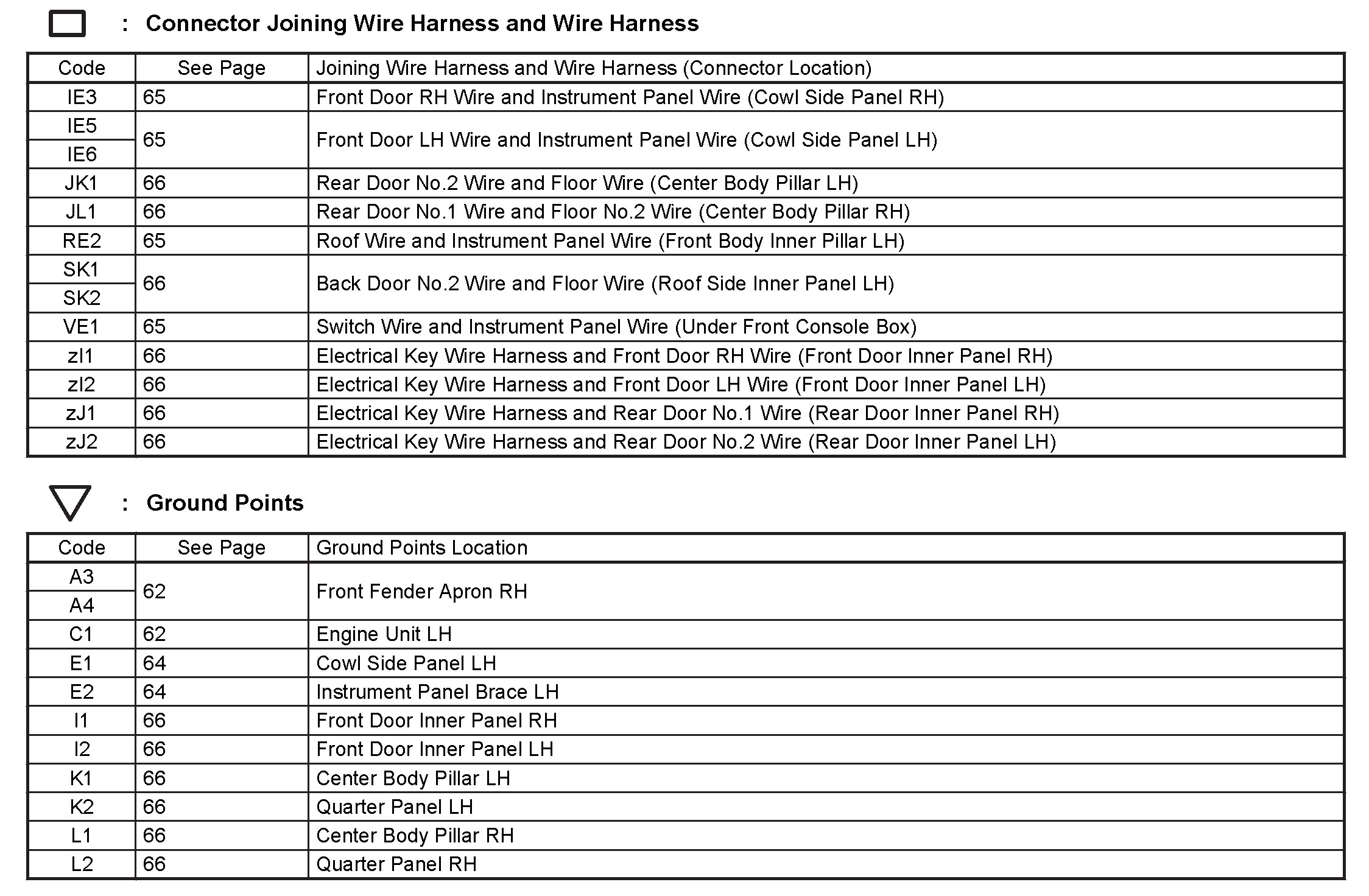

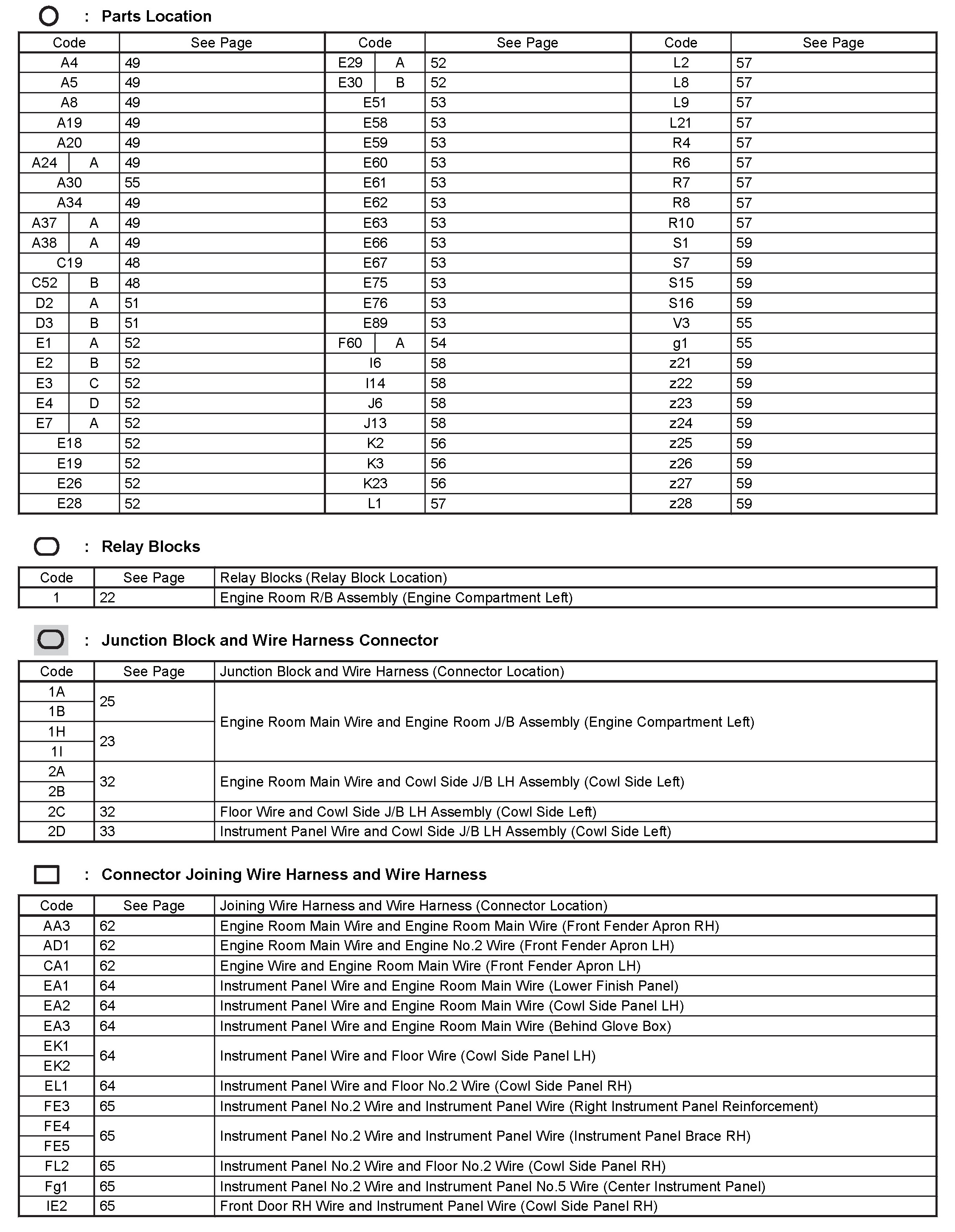

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: Diagrams of the connectors referred to within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
