Information Bus: Locations

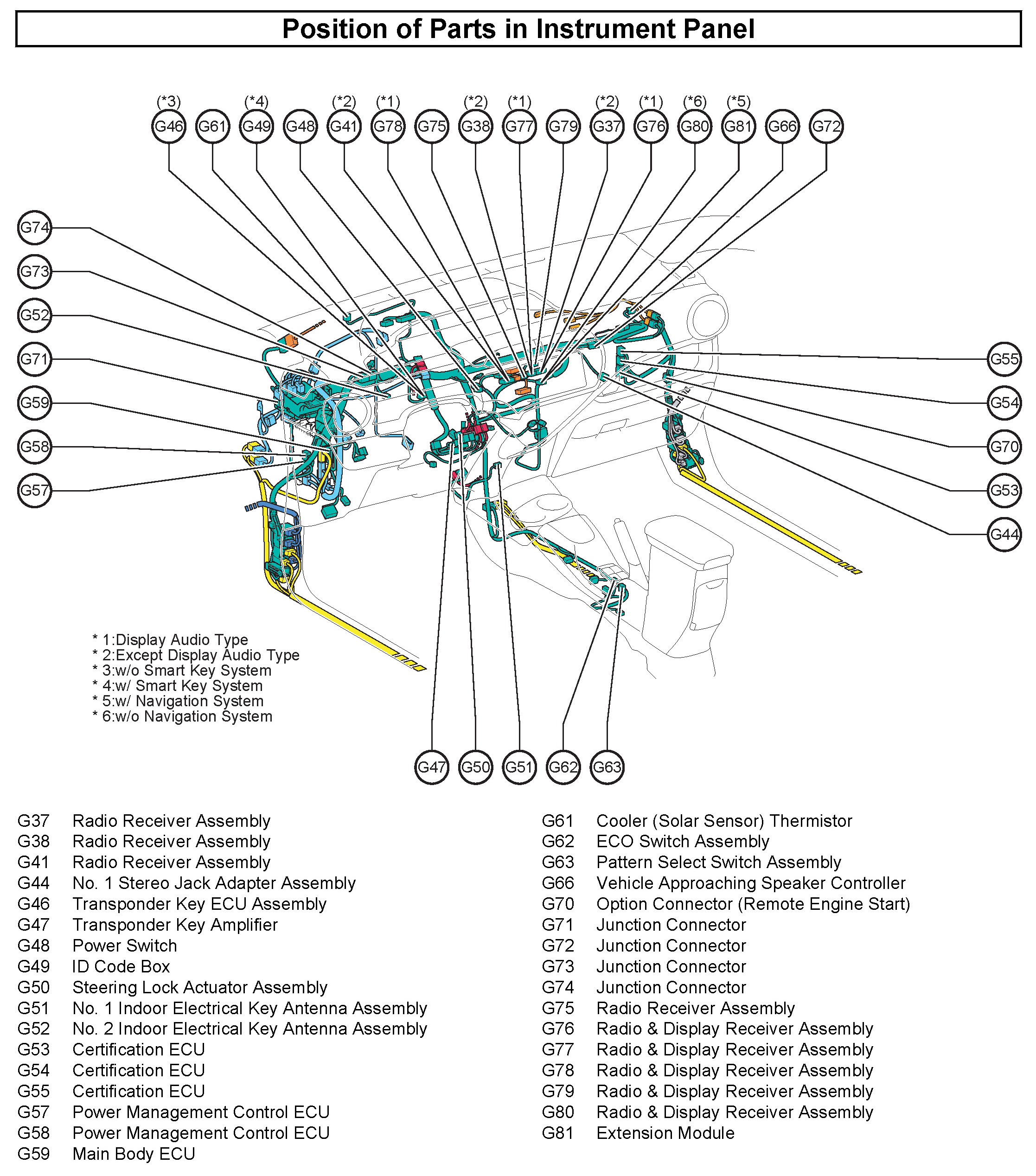

Position Of Parts In Instrument Panel:






Position Of Parts In Instrument Panel:






Junction Connectors A51, G71 and G72 are the CAN Connectors.
