Terminating Resistor: Locations

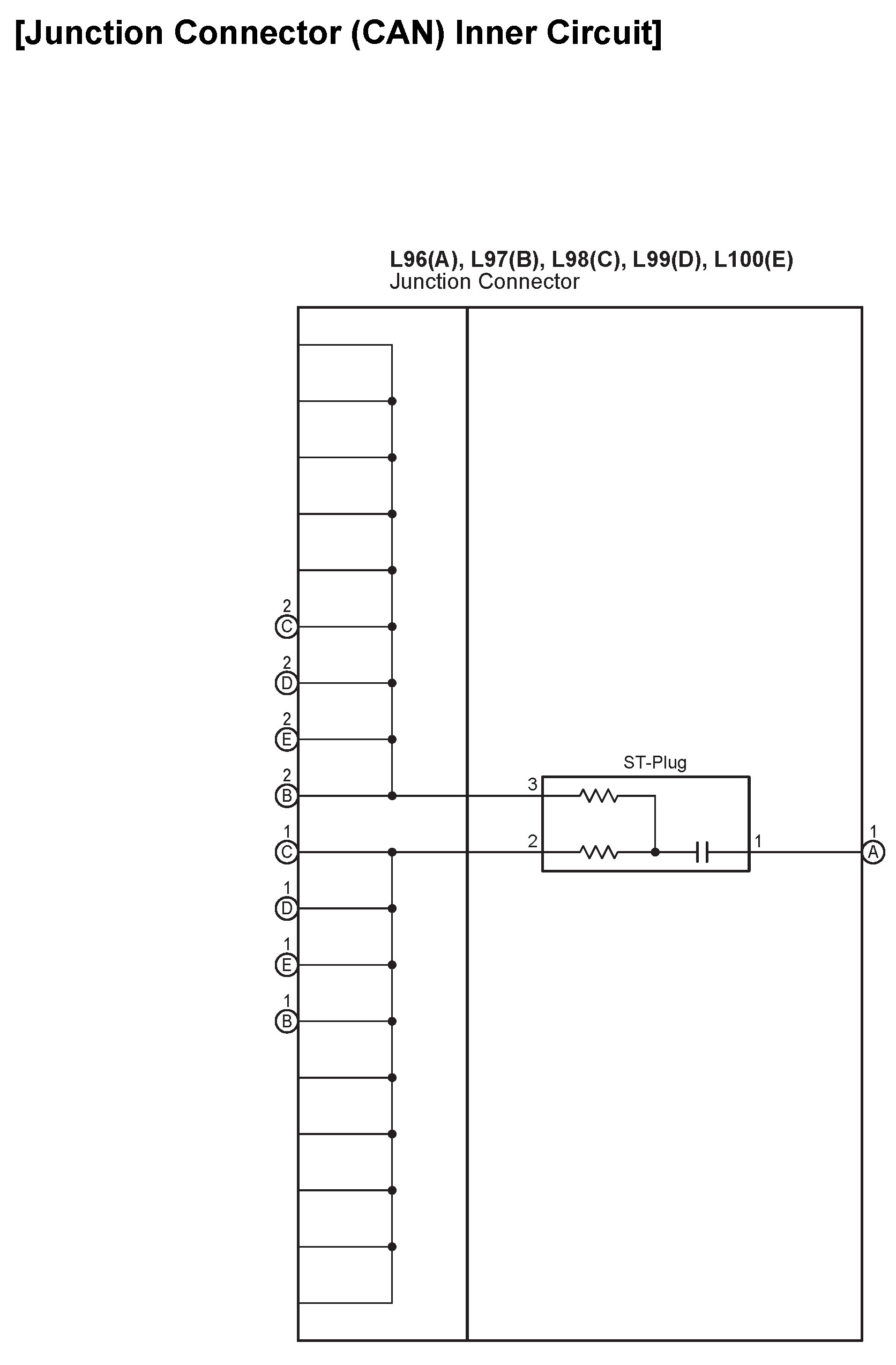

Junction Connector (CAN) Inner Circuit:

Junction Connector (CAN) - Instrument Panel Brace LH:

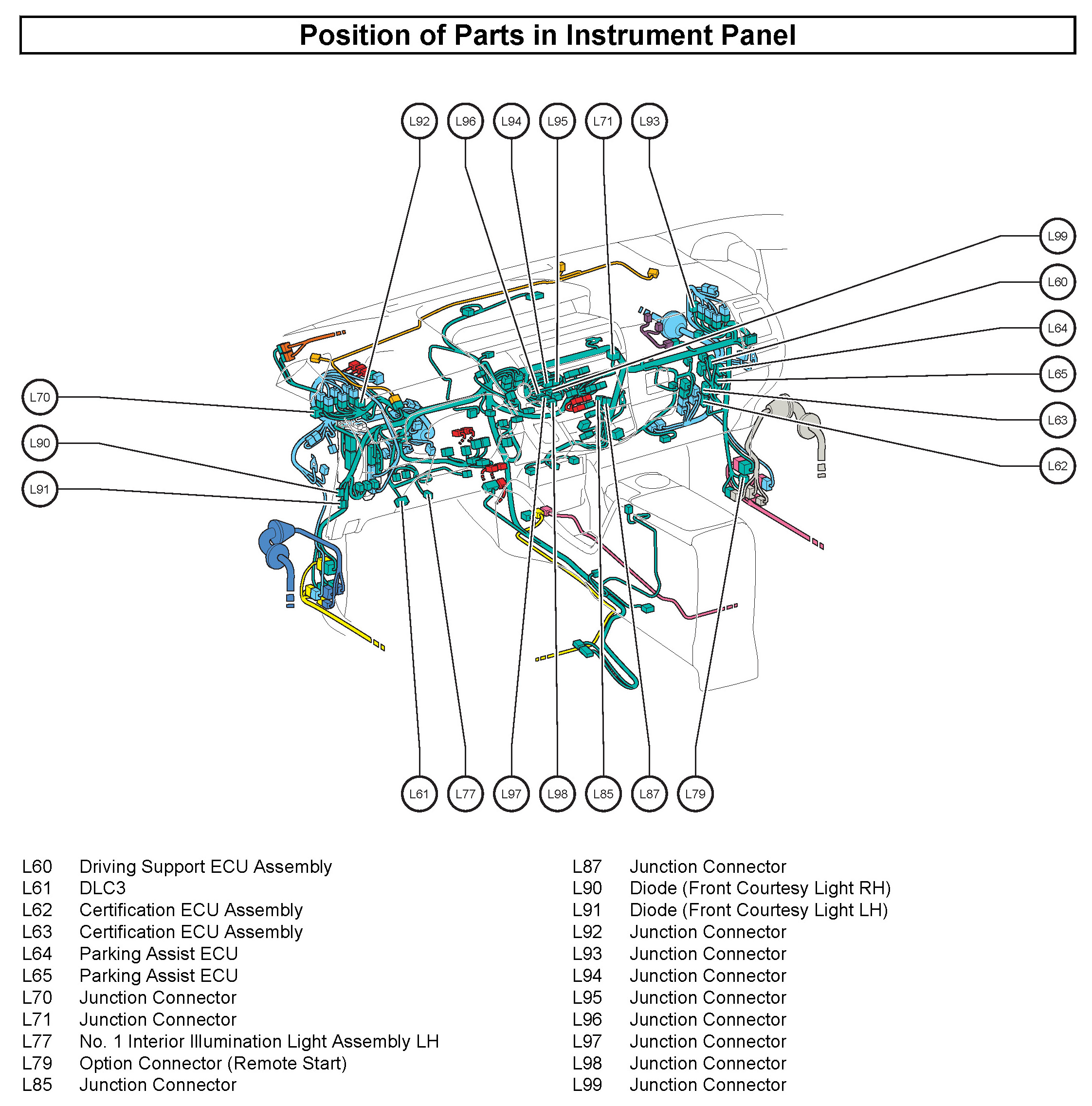

Position of Parts in Instrument Panel:

ST-Plug is located next to connector L96.
