Alignment: Specifications

Wheel Alignment Specifications

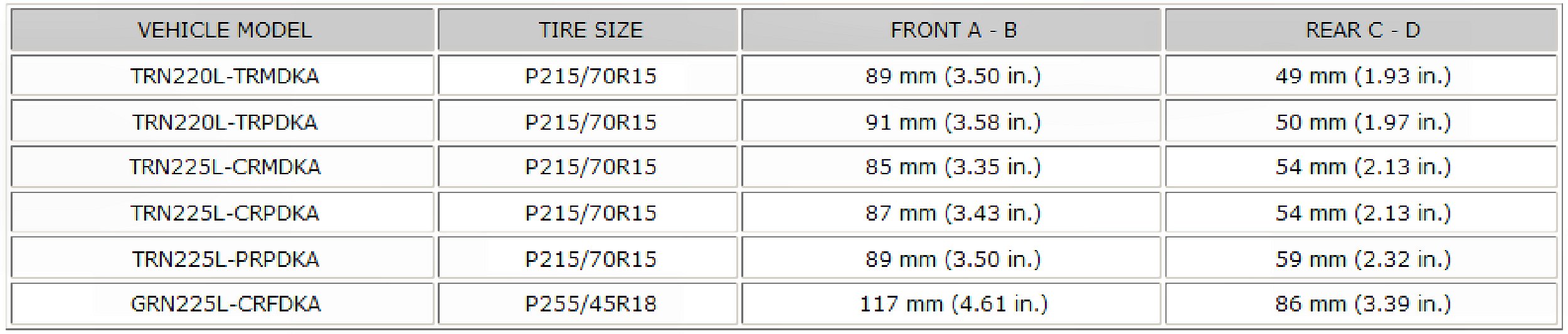

Vehicle Height:

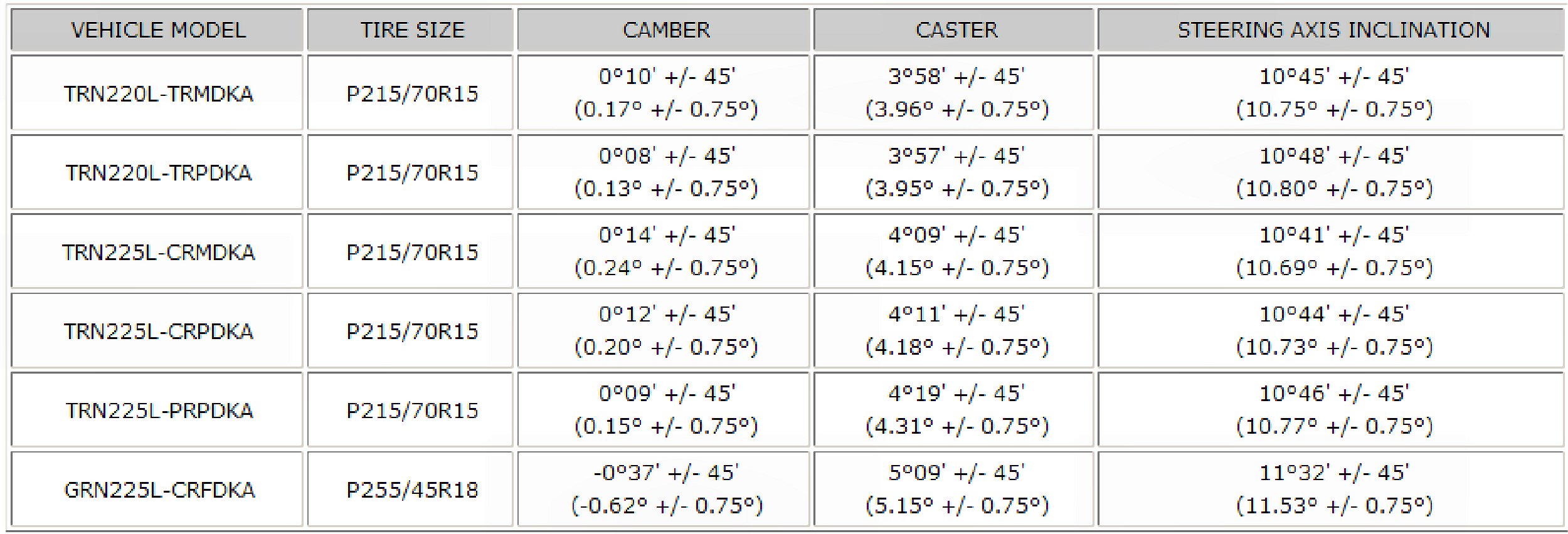

Camber, Caster And Steering Axis Inclination:

Toe-in:

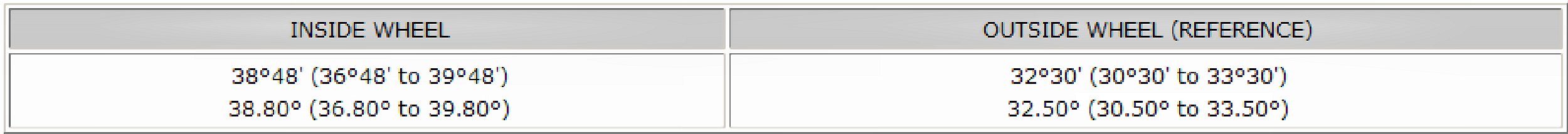

Wheel Turning Angle:
