Alignment

Front Wheel Alignment Specifications (Unloaded Vehicle)

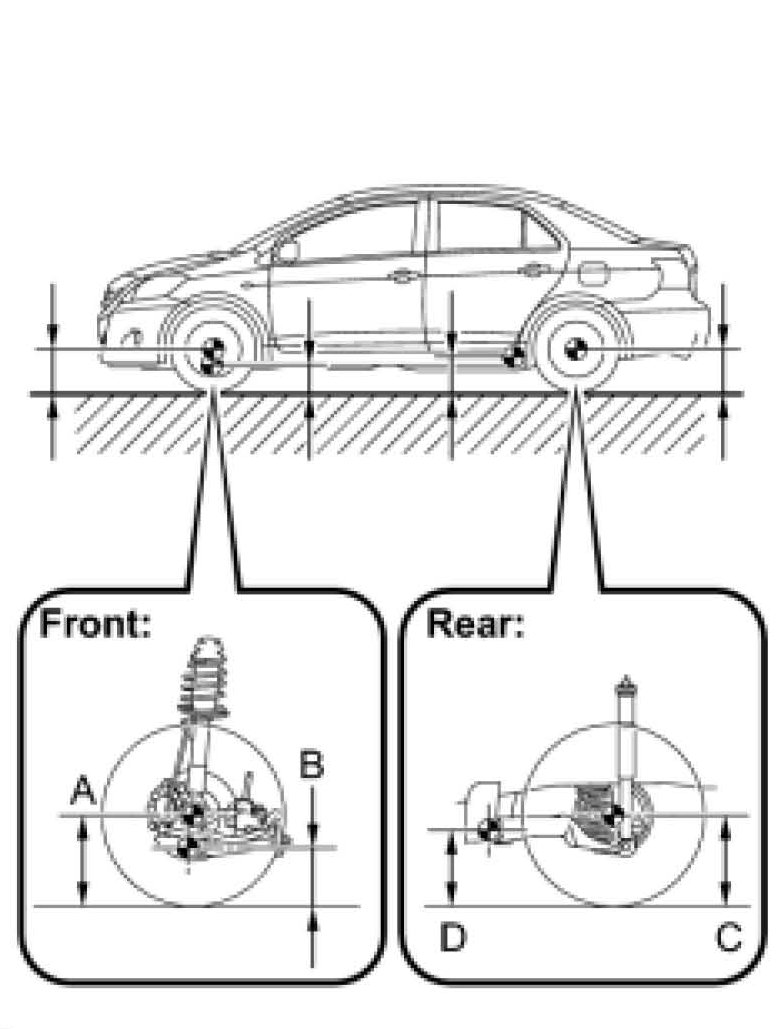

Measuring Points

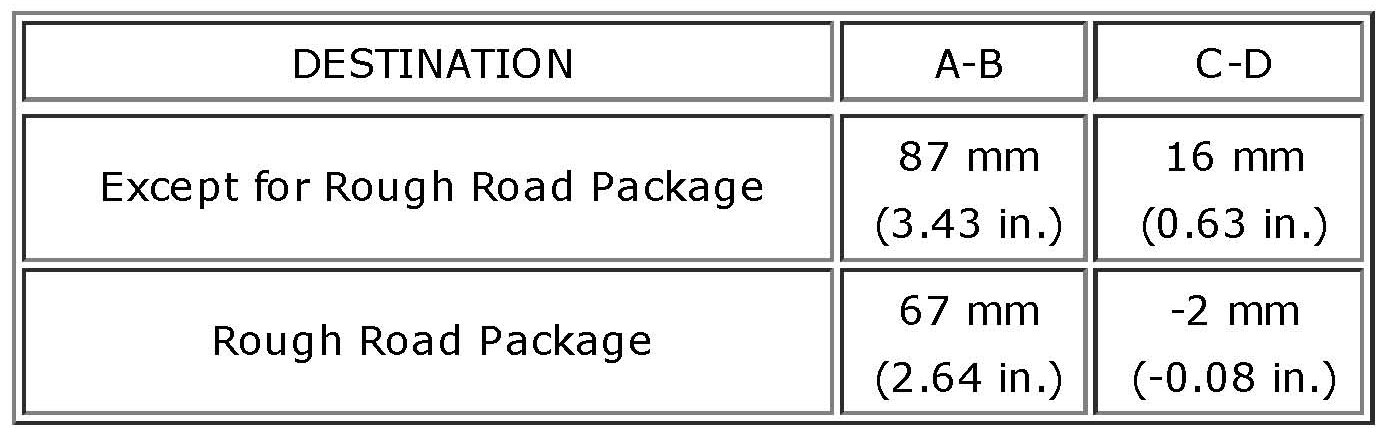

Vehicle Height (unloaded):

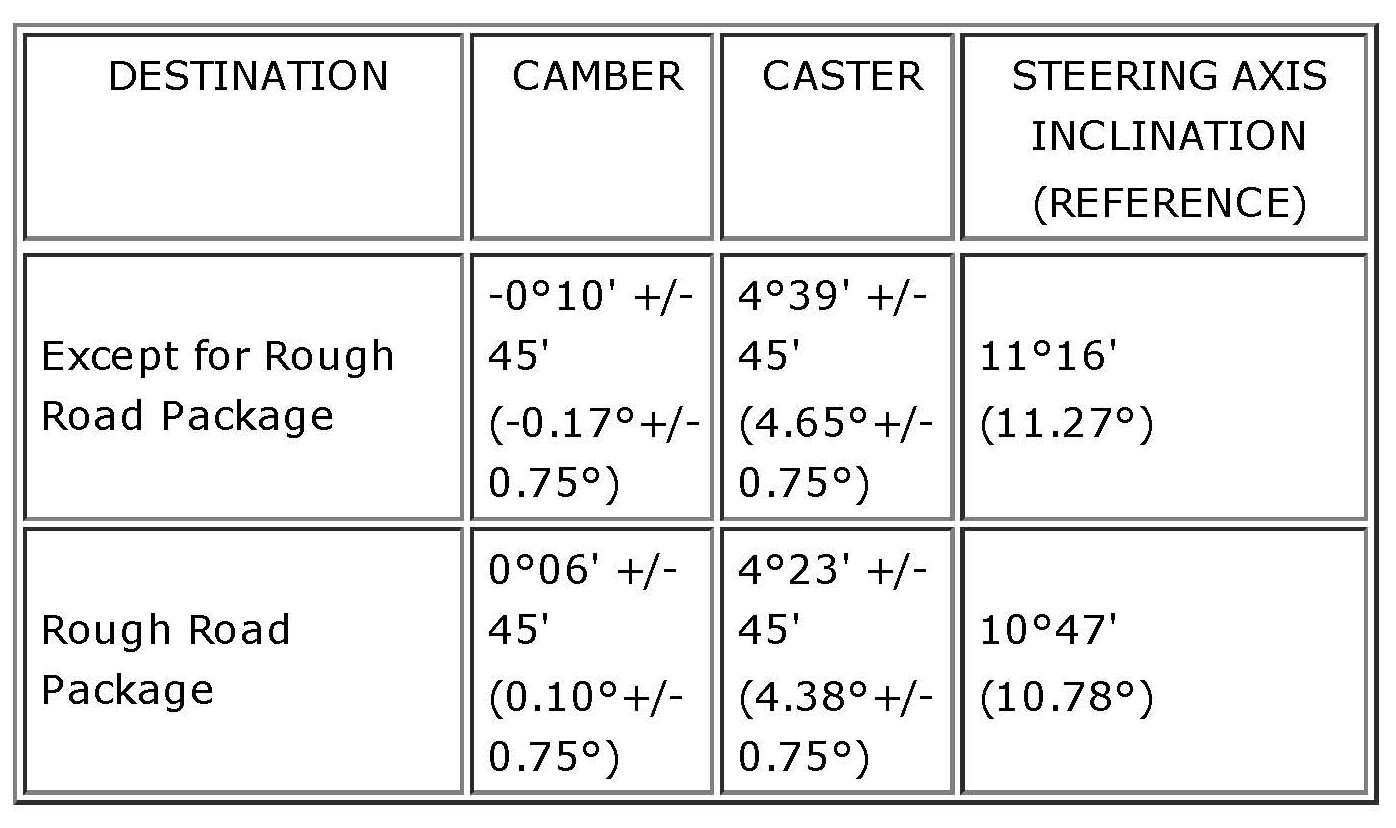

Camber, Caster, Steering Inclination (unloaded):

NOTICE:
Inspect while the vehicle is unloaded.
The tolerance for the difference between the left and right
wheels is 30' (0.5�) or less for both the camber and
caster.







Measuring Points

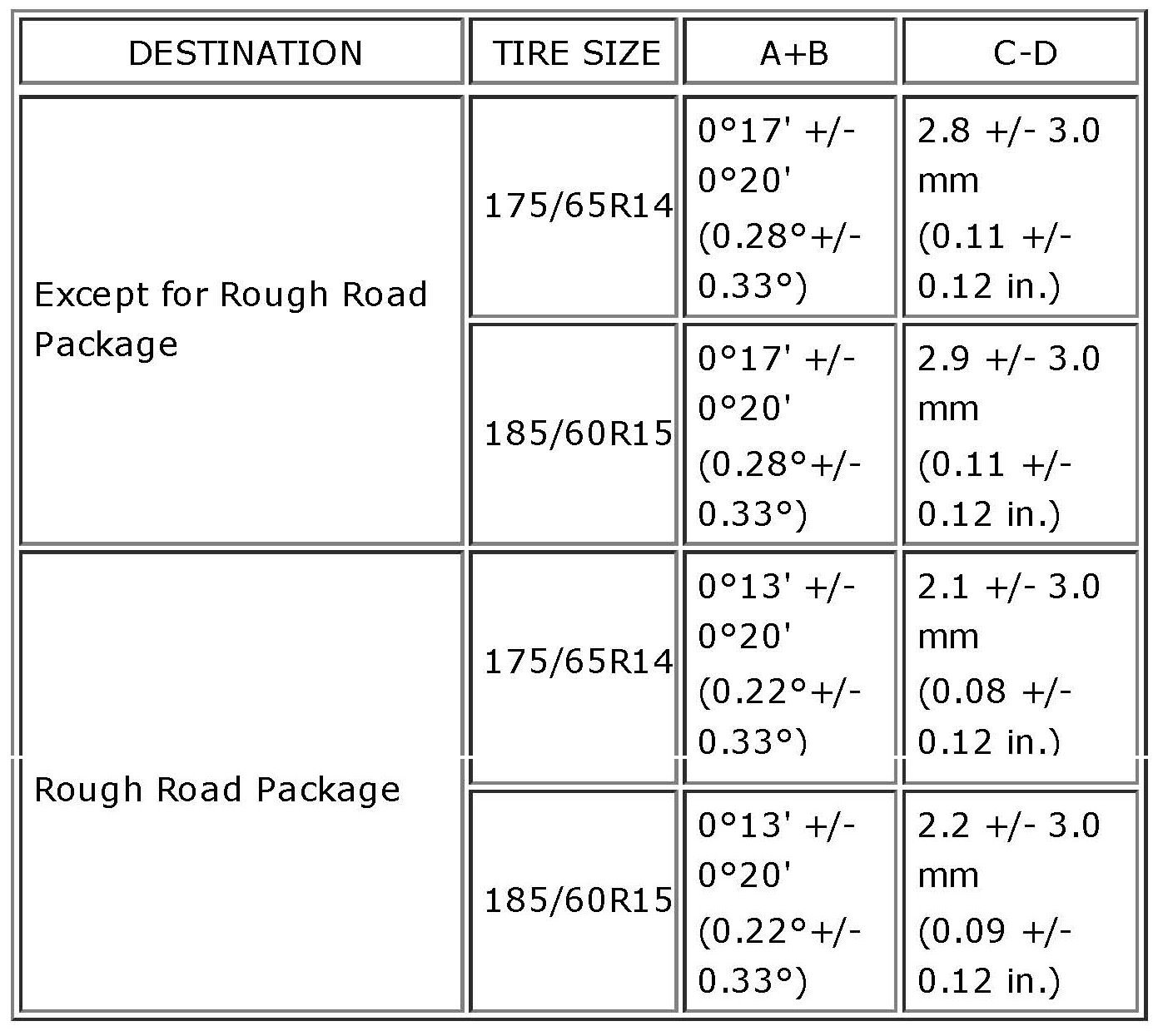

Toe-in (Unloaded):

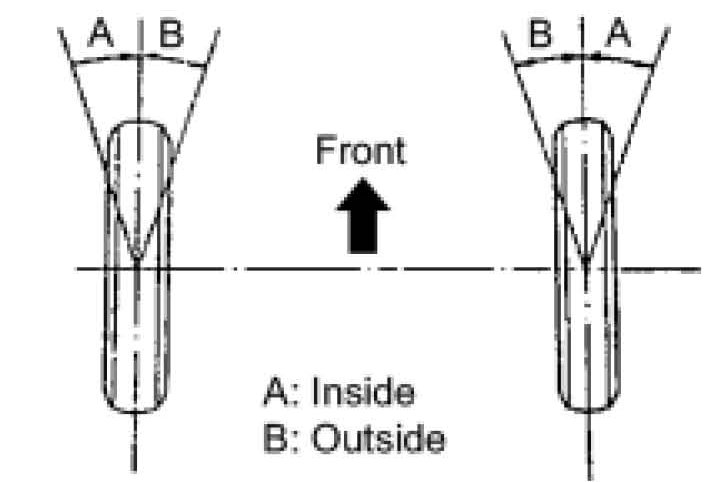

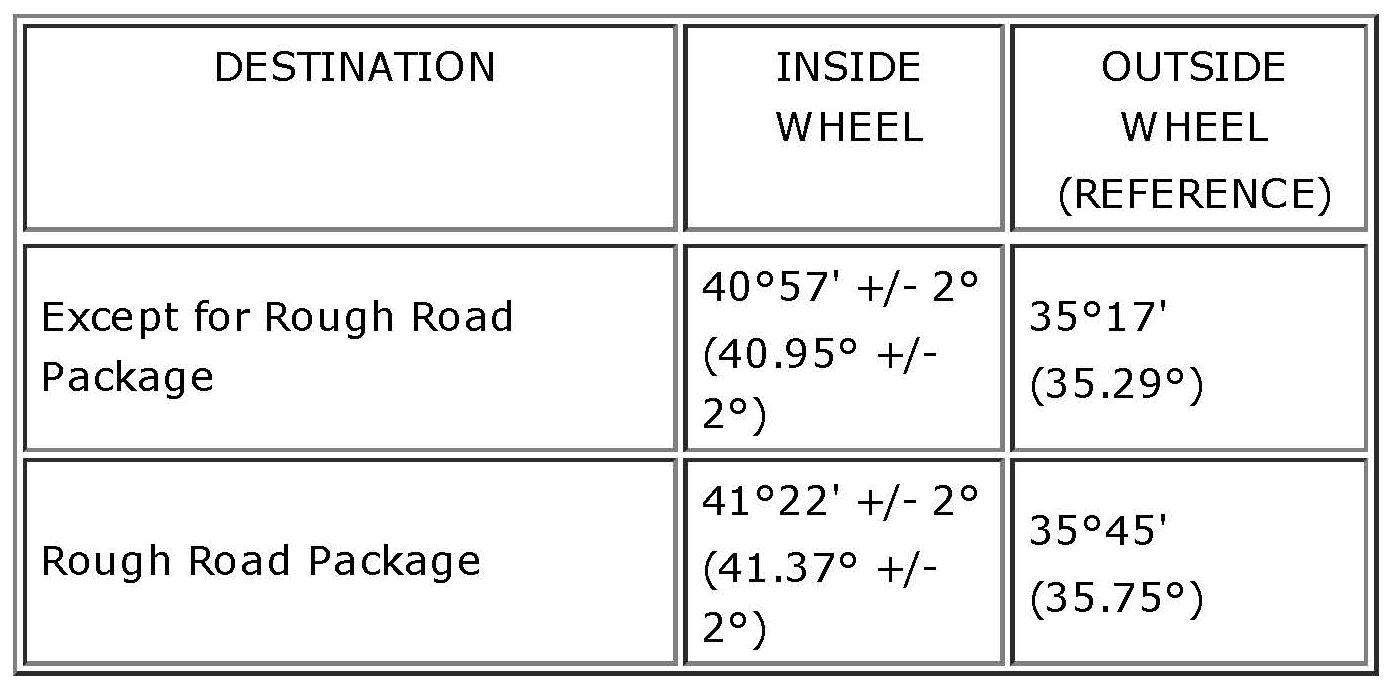

Turning Angle (Unloaded):

Measuring Points

Turning Angle (Unloaded):

Rear Wheel Alignment (Unloaded Vehicle)






Measuring Points

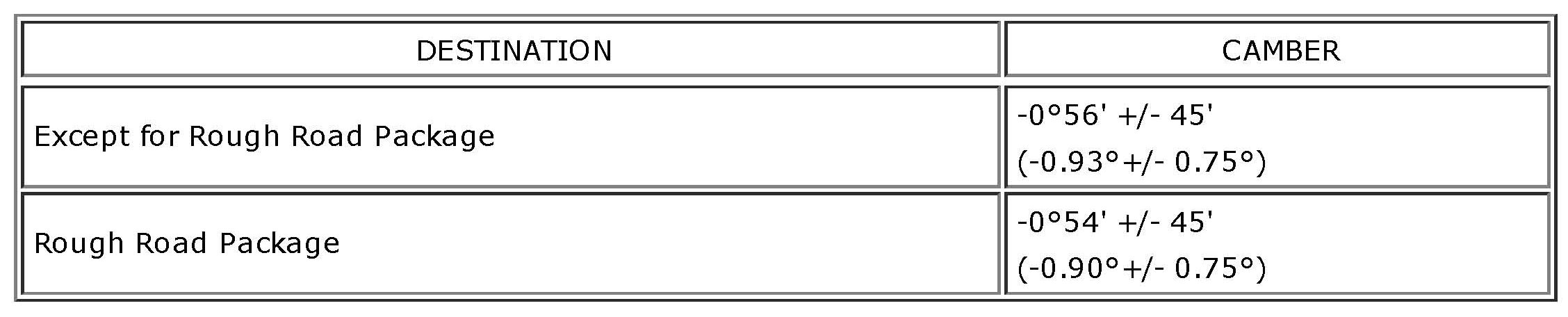

Camber (Unloaded):

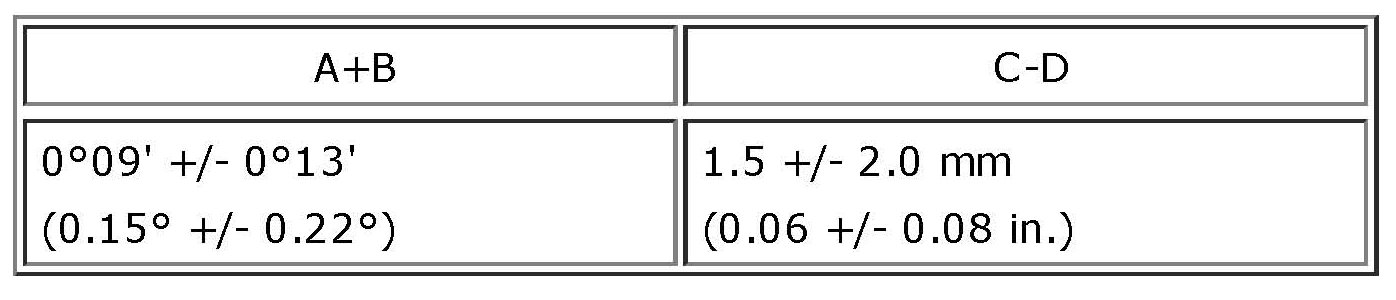

Toe-in (Unloaded):
