Diagram Information and Instructions

[How to read wiring diagram]



Abbreviation

C.U. : Control Unit
M : Main Harness
C : Chassis Harness
I : Instrument Harness
E : Engine Harness

Connector symbol

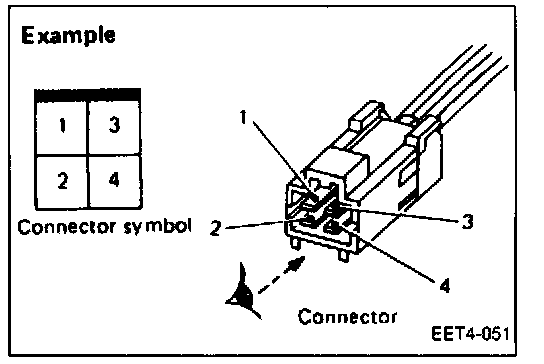

- All connector symbols are shown from the terminal side. The number inside the box shows the number of the pins.







Connector joint indication
For single lines, a connector is indicated in the midway of the line. For plural lines, a connector and connector terminal position are shown in the midway of the lines. In this vicinity, connector shapes are shown and terminal positions are indicated by numbers.

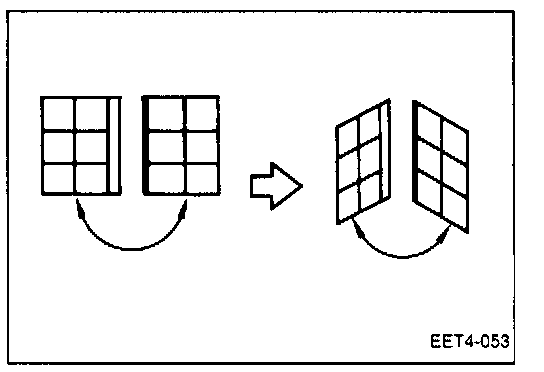

How to match connectors

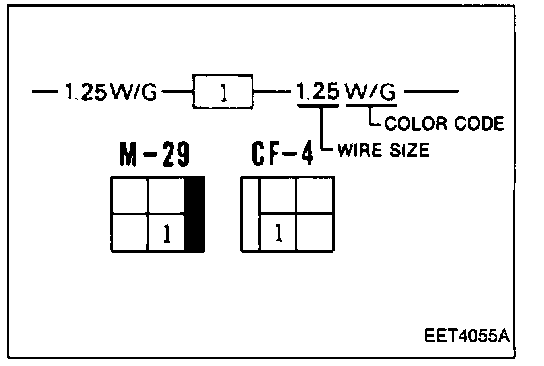

Wire size and color code
Wire size: sectional area (mm2)

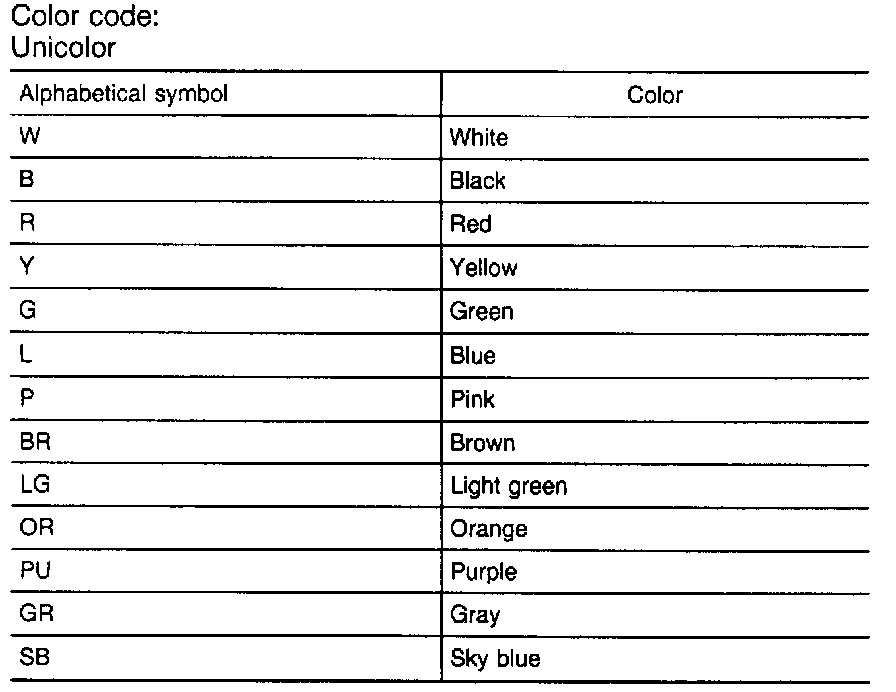

When the wire color is striped, the base color is given first, followed by the stripe color as shown below:
Example: L/W = Blue with White Stripe

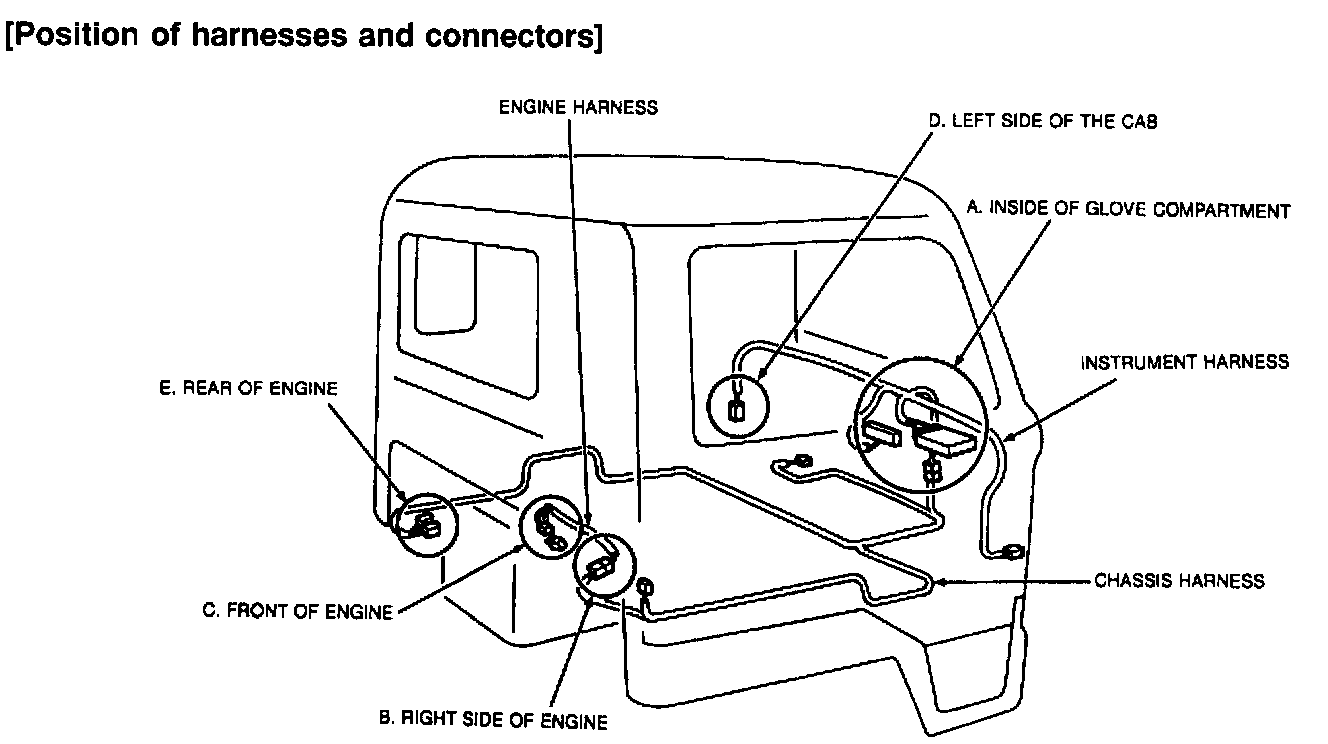

[Position of harness and connectors]
